IT4 IT5 Double layer Steel Roof Roll Forming Machine Aluminium Roof Sheets Making Machine

IT4 IT5 Double layer Steel Roof Roll Forming Machine Aluminium Roof Sheets Making MachineThe finished iron and aluminum IT4 roof sheeting is a regular trapezoidal profile with box crests and valleys suitable for roofing and wall cladding. It is ecpecially targeted at domestic and light industrial & commercial applications where the goal is economy and aesthetics. IT4 roof sheets have 4 industrial troughs and 5 box ribs.This IT5 roll forming machine is manufacturing steel & aluminium roof cladding panels with five industrial trough which are mostly used in African countries.Industrial trough 5 (IT5) is an angular five span and six ribs profile for roofing and walling especially in industrial ...

   Inquire

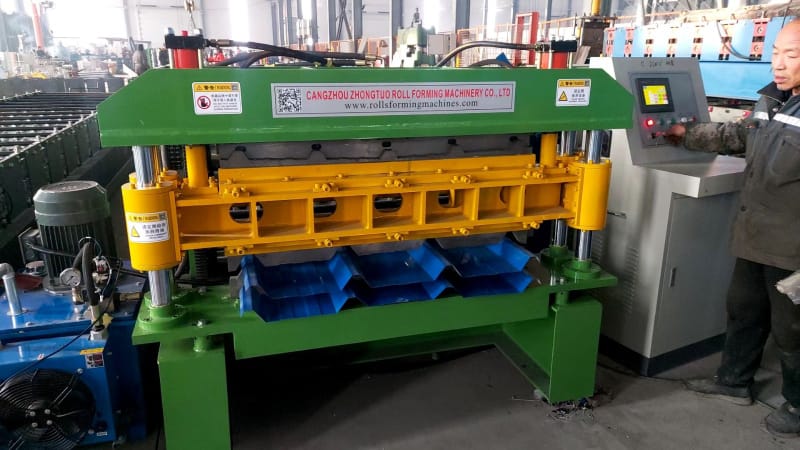

IT4 IT5 Double layer Steel Roof Roll Forming Machine Aluminium Roof Sheets Making Machine


The finished iron and aluminum IT4 roof sheeting is a regular trapezoidal profile with box crests and valleys suitable for roofing and wall cladding. It is ecpecially targeted at domestic and light industrial & commercial applications where the goal is economy and aesthetics. IT4 roof sheets have 4 industrial troughs and 5 box ribs.


This IT5 roll forming machine is manufacturing steel & aluminium roof cladding panels with five industrial trough which are mostly used in African countries. Industrial trough 5 (IT5) is an angular five span and six ribs profile for roofing and walling especially in industrial applications. It is manufactured by the advertised rollforming machine with high tensile steel sheets, either galvanized or aluminum-zinc coated and pre-painted in variety of colors. The suitable raw materials for the metal IT5 roof sheet forming machine to make IT5 roof sheets are Galvanized Iron, Alumimum-zinc coated steel, resincot pre-painted galvanized iron and resincot pre-painted aluminium-zinc coated sheets and so on.

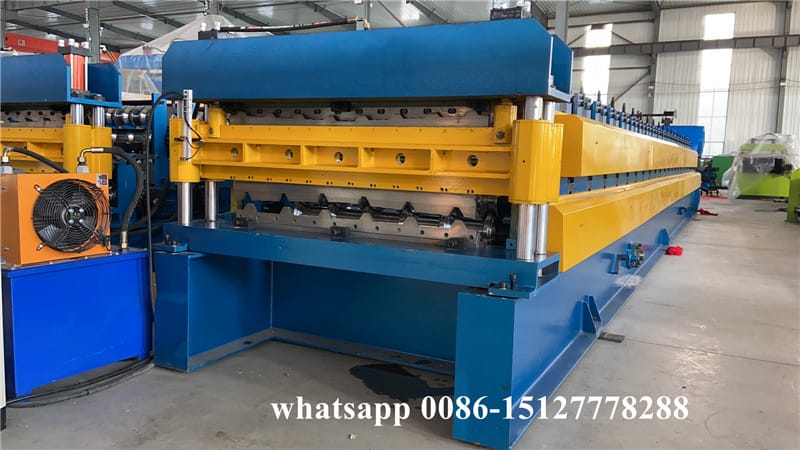

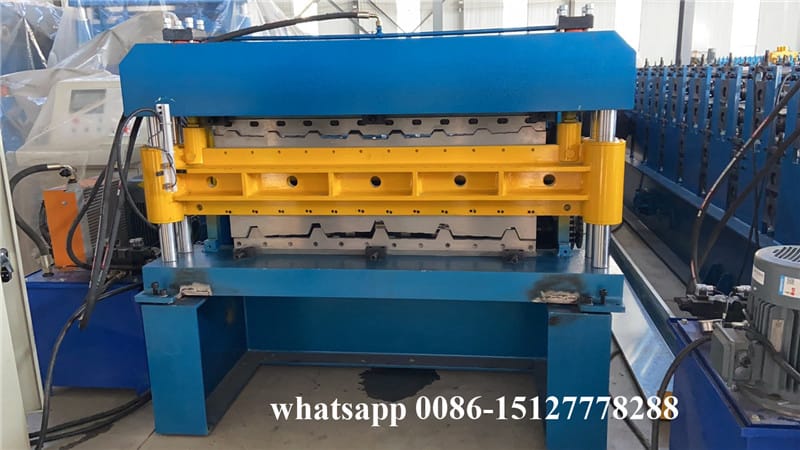

If you want to produce both IT4 and IT5 Aluminium Roof Sheet by one machine, we can do a double layer roll forming machine for you. any interest, welcome to contact us.

Technical Specifications of Roll Forming Machine

Technical Items

Details

Raw Material

Type

Aluminium & Steel Coils, PPGI, GI, PPGL, Aluzinc Iron Coils

Width

914 mm, 1250 mm

Thickness

0.3-0.7 mm

Yield Strength

235-345 MPa or specially designed for 550 MPa

Finished Products

Cover width

840mm, 910 mm

Length

Adjustable

Power Requirement

Voltage

220V/380V/415V/440V

Driving Motor

7.5 KW

Cutting Motor

5.5 KW

Roll Forming Speed

900-1200 meters per hour

Rolls Decoiler

Type

Un-powered or Powered

Capacity

5 tons

Rolling Stations

25 sets

Rolling Shaft Diameter

72 mm

Cutting Type

Post-cutting

Operation System

Mitsubishi PLC, transducer and touching screen

Supporting Tables

2 sets

Machine Size

Around 12 x 1.6 x 1.5 meters

Machine Weight

Around 9 tons
