Automatic CZ Changeable Purlin Roll Forming Machine

Automatic CZ Changeable Purlin Roll Forming MachineTechnical Parameters ofAutomatic CZ Changeable Purlin MachineSuitable materialCold-rolled steel strip and heat-treated galvanized steel stripThickness of raw material1.5-3.2mm (235-345Mpa)Size of C purlin100-305mm adjustable (special size available)Material of rollerCr12 mould steel being quenched treatment,HRC58-60Material of cutter blade& punching dieCr12 mould steel with quenched treatment, HRC58-60Power RequirementMain motor power: 4x4 Kw(Depend on final design) Hydraulic station power: 2.2Kw(Depend on final design) Transmission systemGear box transmissionMaterial of shaftHigh quality 45# steel, with heat treatment.Roller gri...

   Inquire


Automatic CZ Changeable Purlin Roll Forming Machine

Technical Parameters of Automatic CZ Changeable Purlin Machine

Suitable material

Cold-rolled steel strip and heat-treated galvanized steel strip

Thickness of raw material

1.5-3.2mm (235-345Mpa)

Size of C purlin

100-305mm adjustable  (special size available)

Material of roller

Cr12 mould steel being quenched treatment,HRC58-60

Material of cutter blade& punching die

Cr12 mould steel with quenched treatment, HRC58-60

Power Requirement

Main motor power: 4x4 Kw(Depend on final design)

Hydraulic station power: 2.2Kw(Depend on final design)

Transmission system

Gear box transmission

Material of shaft

High quality 45# steel, with heat treatment.

Roller grinder milling.

Shaft diameter

82mm

Controlling system

Mitsubishi PLC & converter

Quantity of rollers

About 16 stations for main rollers

Total weight of machine

About 23000KGS

Machine's size

About 17.5m×2.1m× 1.6m

DESCRIPTION

CZ changeable Purlin Forming Machine is an equipment that produces C/Z shaped steel channels continuously out of galvanized or cold rolled steel strips from feeding, punching for holes, bending and cutting.

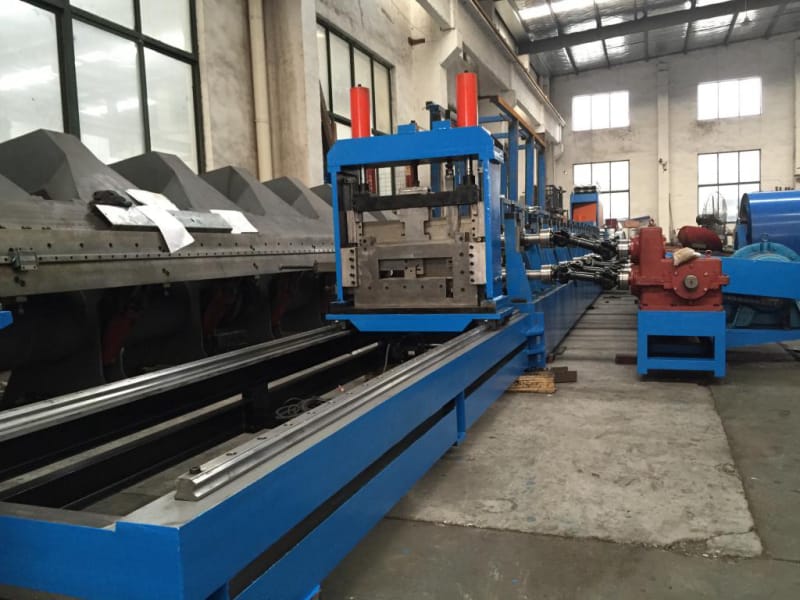

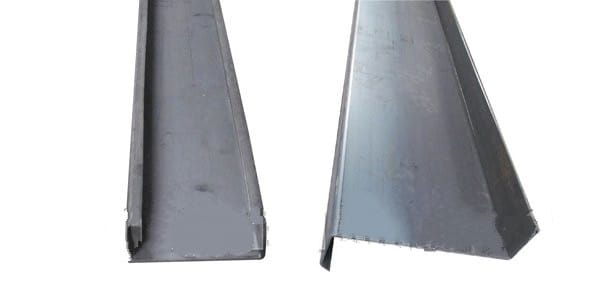

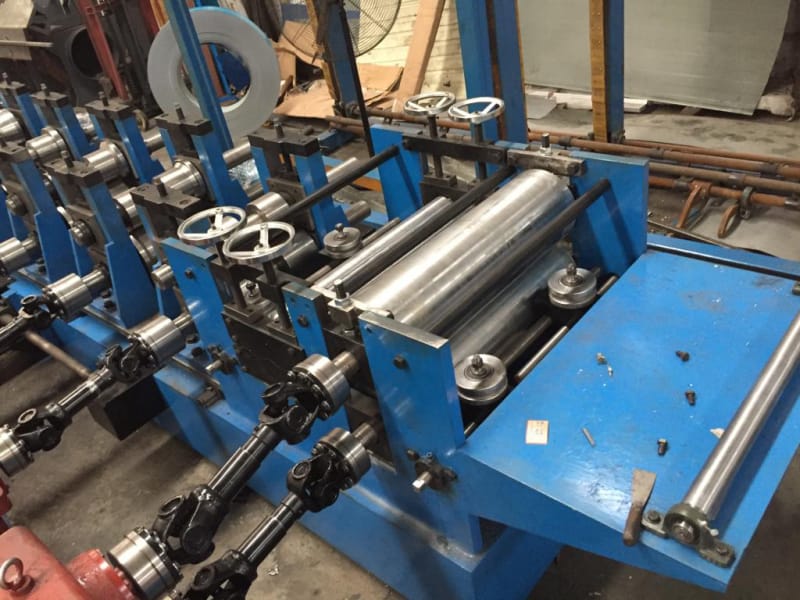

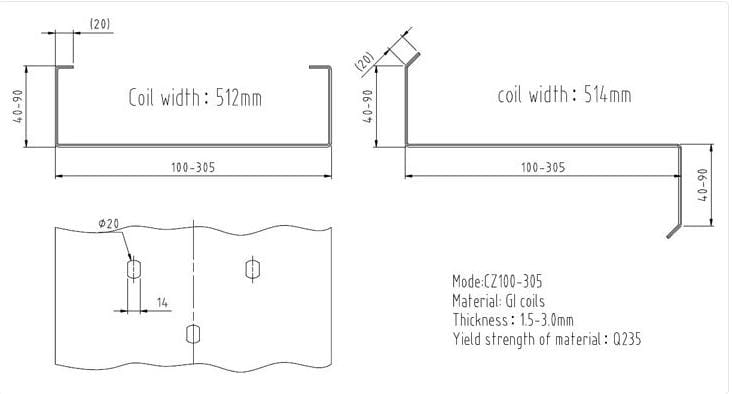

CZ Purlin Forming Machine can do both C and Z shape purlin with following different size, automatic adjustment. Special sizes of purlin can be designed in our company.


Gearbox transmission system

Gearbox transmission system moves the line to ensure machine strong enough to run raw material thickness 3.2mm


Quick change system

1Change size of purlin automatically. People key in and then the control system adjusts the different sizes automatically.

2Change C to Z type,turn the turnover device manually. Within 15 minutes finish change from C to Z  purlin.

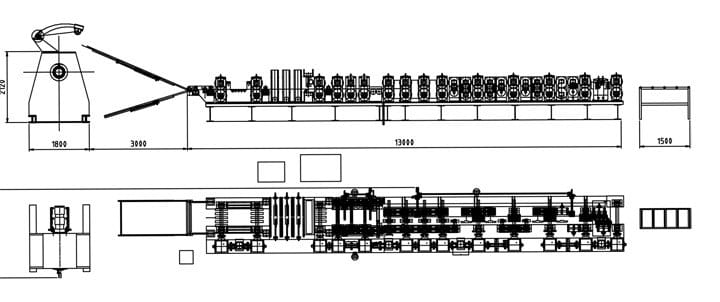

Layout drawing of Automatic C Purlin Forming Machine


Product application of  Automatic CZ Changeable Purlin Machine

In order to satisfy various customer requirements, we design and manufacture Automatic CZ Changeable Purlin Machine  in different specs, models and configurations.

Automatic CZ Changeable Purlin Machine Application Example
