C-Shaped Profile Steel Cold-bending C Profiles C Channel Purlins Specification
Description of C Profiles C Channel Purlins Specification
|
Material |
Carbon steel or SS304 or SS316 |
|
Surface Treatment |
HDG(hot dipped galvanized ),Pre-galvanized,Electrical-galvanizing(yellow or white),powder coating(Black,Green,White,Grey,Blue)etc. |
|
Dimensions |
13/16"x 1-5/8" or 1-5/8" x 1-5/8",1-1/2"x1-1/2",3/4"x1-1/2" |
|
Lengths |
Either 10FT or 20FT or cut into the length according to clients' requirements |
|
Size |
41mm*21mm or 41mm*41mm back to back 41*41mm, 41*62mm,41*82mm,and so on |
|
Thickness |
1.5mm, 1.8mm,1.9mm,2.0mm, 2.3mm,2.5mm ,2.7mm, |
|
Holes |
28*14mm,18*9mm,13.5*63mm,11*25mm,11*30mm etc |
|
Style |
Plain or Slotted |
|
MOQ |
1000 Pieces |
|
Packaging |
In Bundles and fasten with steel strips or by wooden pallets |

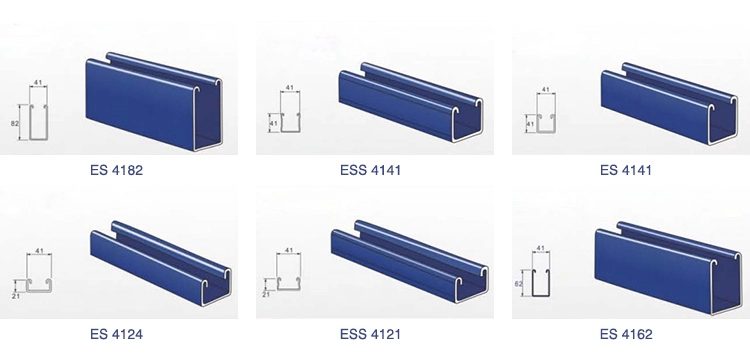

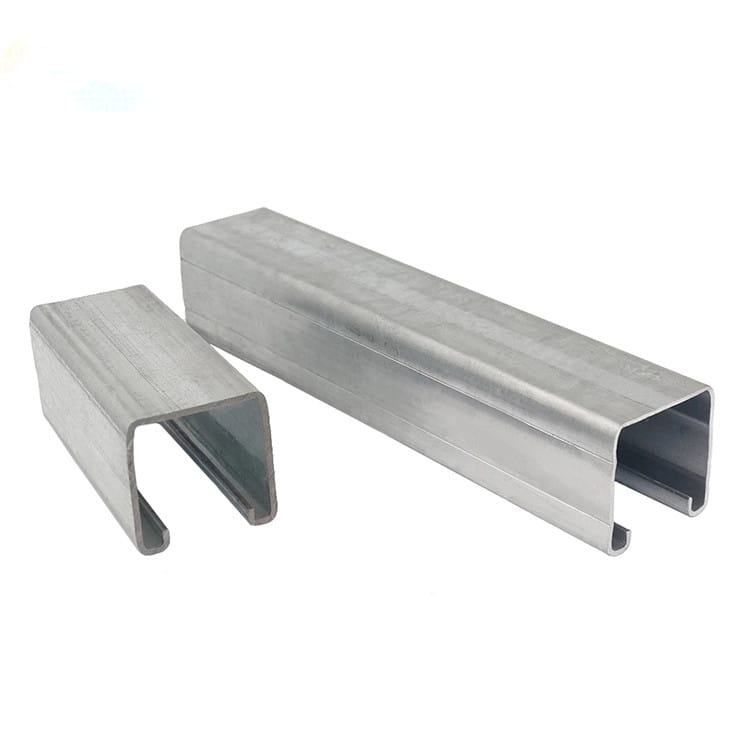

Pictures of C Profiles C Channel Purlins Specification
