METAL ROLL FORMING MACHINE
Zhongtuo roll forming Systems is a "one-stop shop" for all your roll forming needs,enabling our customers to save time and money when buying roll forming machines,to help customers grow.
metal c shaped bracket c purlin
metalcshapedbracketcpurlin1)SlottedType/PlainType2)Pregalvanized,hotdipgalvanizedorpowdercoating3)Lengthsaspercustomers'requirements,...
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content

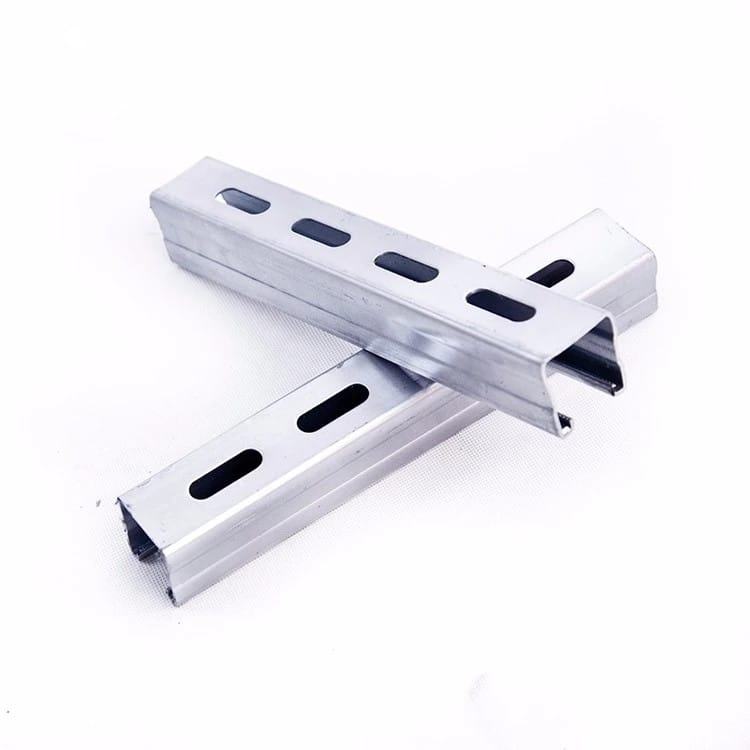

metal c shaped bracket c purlin
1) Slotted Type / Plain Type
2) Pre galvanized ,hot dip galvanized or powder coating
3) Lengths as per customers' requirements, but standard length as 3.05 meter/10ft
|
Product name |
metal c shaped bracket c purlin |
|
Material |
Q235,Carbon steel or SS304 or SS316 |
|
Surface Treatment |
HDG(hot dipped galvanized ),Pre-galvanized,powder coating (Black,Green,White,Grey,Blue)etc. |
|
Lengths |
Either 10FT or 20FT or cut into the length according to Customer's Requirements |
|
Thickness |
1.0mm--3mm |
|
Holes |
11*30mm or according to Customer's Requirements |
|
Style |
Plain or Slotted or back to back |
|
Packaging |
In Bundles and fasten with steel strips or by wooden pallets |
|
No. |
Size |
Thickness |
Type |
Surface Treatment |
||
|
mm |
Inch |
mm |
Gauge |
|||
|
A |
21x10 |
13/16x13/32" |
1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 |
19,16,14,12 |
Slotted,Solid |
HDG,PG,PC |
|
B |
21x21 |
13/16x13/16" |
1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 |
19,16,14,12 |
Slotted,Solid |
HDG,PG,PC |
|
C |
41x21 |
1-5/8x13/16" |
1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 |
19,16,14,12 |
Slotted,Solid |
HDG,PG,PC |
|
D |
41x22 |
1-5/8x7/8" |
1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 |
19,16,14,12 |
Slotted,Solid |
HDG,PG,PC |
|
E |
41x25 |
1-5/8x1" |
1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 |
19,16,14,12 |
Slotted,Solid |
HDG,PG,PC |
|
F |
41x41 |
1-5/8x1-5/8" |
1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 |
19,16,14,12 |
Slotted,Solid |
HDG,PG,PC |
|
G |
41x62 |
1-5/8x27/16" |
1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 |
19,16,14,12 |
Slotted,Solid |
HDG,PG,PC |
|
H |
41x82 |
1-5/8x3-1/4" |
1.3,1.5, 1.8,1.9,2.0, 2.3,2.5 |
19,16,14,12 |
Slotted,Solid |
HDG,PG,PC |
