Have you noticed that after speeding up your C channel production line, manual sorting and packing at the end became the new bottleneck? The roll forming machine runs faster and faster, but the workers cannot keep up. This is not a machine problem. It is a missing link in your production flow.

An automatic packing machine of C channel  serves one core purpose: it gathers, aligns, and stacks finished sections as they come off the production line. Stacking and packing are often treated as secondary tasks. But when your line speed reaches 70 meters per minute, the limit of manual handling becomes obvious. A stud channel automatic stacker machine is designed to solve exactly this problem that holds back the entire line.

This article starts with the role of a stacker machine, then explains how the packing machine connects with the production line and its function in finished product handling.

End of Line Stacking Needs

In continuous C channel production, the roll forming machine delivers finished products at high speed. These cut sections come out in a scattered state and need to be gathered, aligned, and stacked neatly. If done manually, the speed cannot match the machine, and the stacks often come out uneven.

The stacker machine handles this task at the end of the line. It gathers scattered sections into stacks. But stacking is not packing. After stacking, the sections still need strapping and securing before they become shippable, storable products. The stacker and the packing machine sit at different positions in the line and solve different problems.

Advantages of the Automatic Packing Machine of C Channel

An automatic packing machine of C channel brings several improvements to the production line.

Less manual handling. The machine handles pulling and stacking automatically.

Surface protection. The clamping parts use soft rubber covering with adjustable cylinder pressure. This helps resist squeezing and reduces scratch risks.

Consistent stacking quality. The servo system provides precise position control.

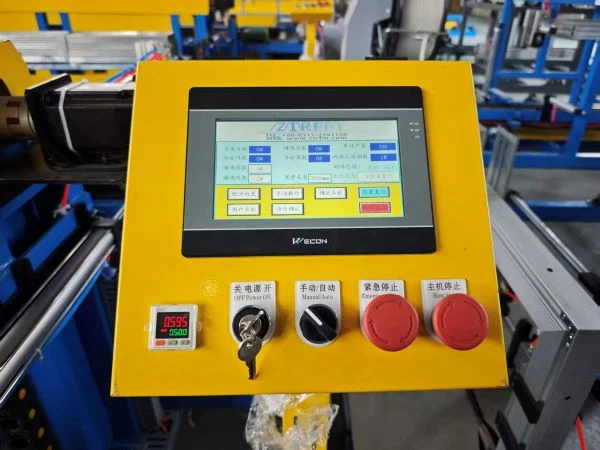

Simple operation and quick changeover. One-touch operation with a built-in recipe storage system saves up to 50 channel types.

Durable construction. The stacking support plate uses folded forming without welded seams.

Manual packing has clear limits: high physical demand, limited speed, and inconsistent tightness. When the line speeds up, workers simply cannot keep up with dozens of sections per minute. A drywall channel packing machine brings the end processing speed up to match the line speed.

Compatible Production Lines

One packing machine fits the end of various cold formed section lines. It solves the same problem across all of them: after high speed forming, manual handling cannot keep up with machine speed.

Compatible production lines include:

• C channel roll forming line

• CZ section steel roll forming line

• U channel roll forming line

• steel stud and track roll forming line

On any of these lines, when the forming speed exceeds manual handling capacity, the automatic packing machine becomes the key to continuous production. It receives stacked sections from the stacking table or conveyor and carries out strapping to form shippable finished bundles.

How the Automatic Packing Machine of C Channel Works

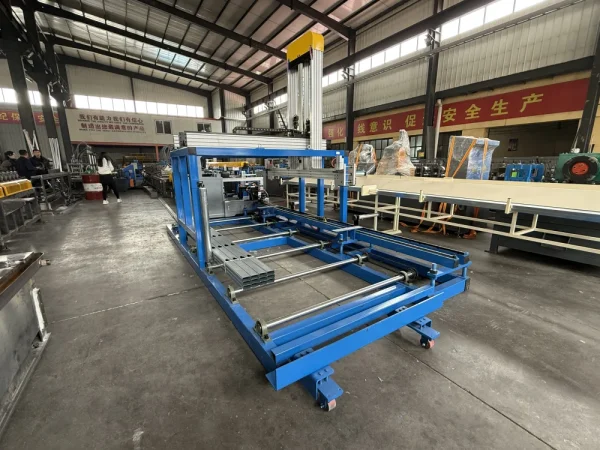

The machine receives stacked C channel from the stacking table or conveyor, then starts the automatic packing sequence.

The pulling section uses servo gear rack drive, designed for high speed and long travel. Five servo motor systems control the buckle, lifting push table, tape wrapping, pulling, stacking translation, and stacking lifting. These servo systems work together to position each section accurately.

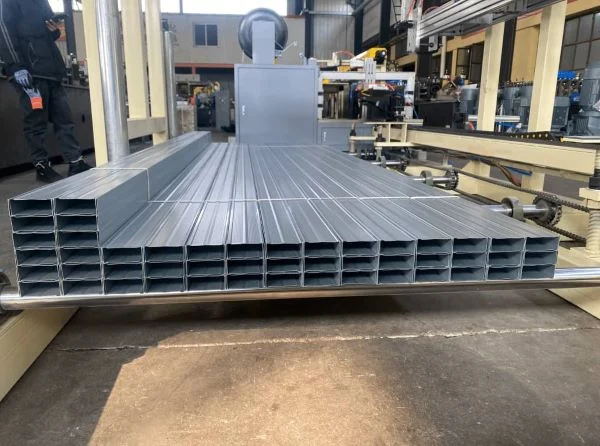

After strapping, the automatic packing machine of C channel palletizes the bundles for loading and transport. The applicable channel length is 2.6 to 4.0 meters. The working speed is 70 meters for 3-meter channels. Each bundle holds 24 pieces arranged in 4 layers, 3 columns, and 2 rows.

Technical Parameters of the Automatic Packing Machine of C Channel

The following parameters come from the equipment quotation:

Trends in Packing Automation

Modern production lines face increasing demand for small batches with multiple specifications. Traditional packing equipment requires long changeover times and high adjustment costs.Newer packing systems use sensors and PLC control to identify section length and adjust parameters accordingly. Modular design allows flexible expansion without replacing the entire machine.

If you are planning a new C channel production line or preparing to speed up your existing line, we can provide tailored configuration suggestions based on your specific conditions. Feel free to reach out anytime.
