 Villa Frame Rolling Forming Machine C140

C140 villa frame machine is designed to make C140 in batch fully automatically.

Compared with C89, C140 is much bigger than C89, C100 and others. C140 is good when you want to bulid higher layer building like 6 layers, 5 layers out wall stud and track. Here is C140 villa frame machine pictures for your reference.




Machine Pictures for your reference:


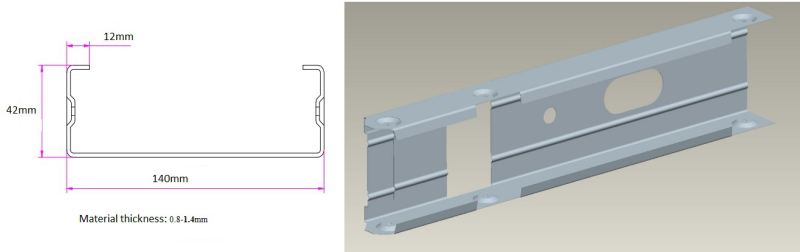

Supported material

G550 high tension grade plate, zine coated plate,

350 to 550 MPA (G 450 middle carbon steel in better.)

Material thickness

0.7 to 1.4mm

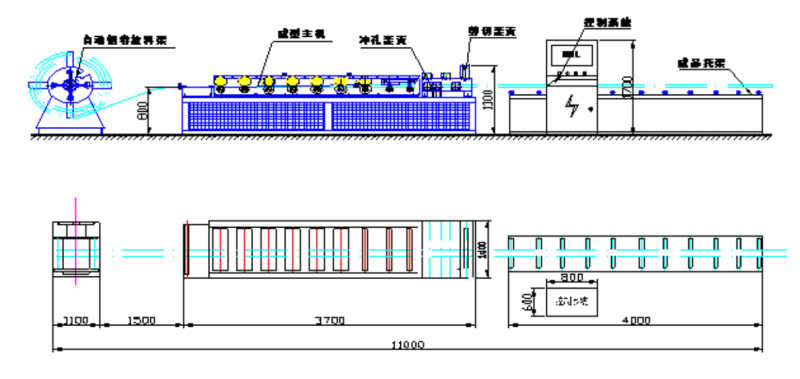

Machine working flow:


Spare parts:

6006 gear 2 pieces

6000 gear 2 pieces

6002 gear 2 pieces

628/8 gear 5 pieces ,

61901 gear 5 pieces ,

Chain-1.5m,,DSG-01-2A3 -DC24V 1 pieces


               Main elements of the villa machine

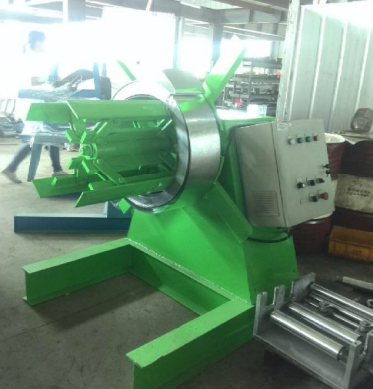

Manul decoiler

ID is 450 - 550mm
Coil Width is 300 mm

Coil load 3 ton

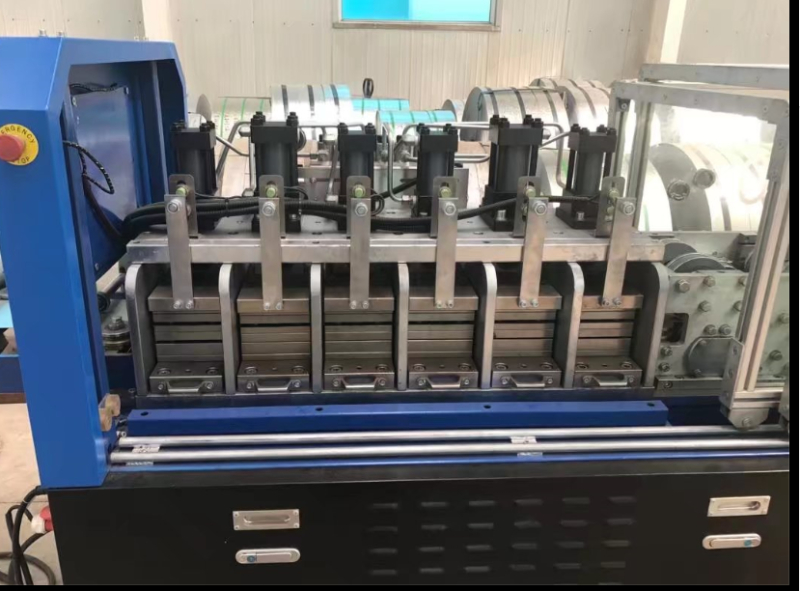

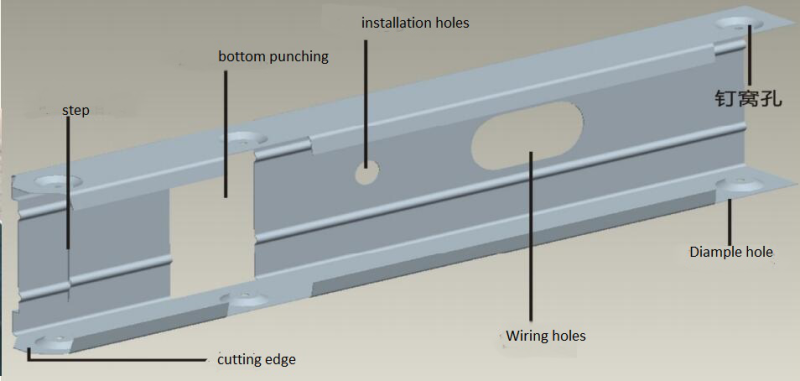

Punchin device 6 sets

Punchine die material (SKD11)

1.50X12mm side hole

2. Beehive holes

3.Function bolt for easy installation

4. 60x30mm for cable tray holes

5. 89x50 for the square holes

6. web hole and 45 degree bending or shearing.

Note: if your country bolt sizes are different, please tell me in advance.

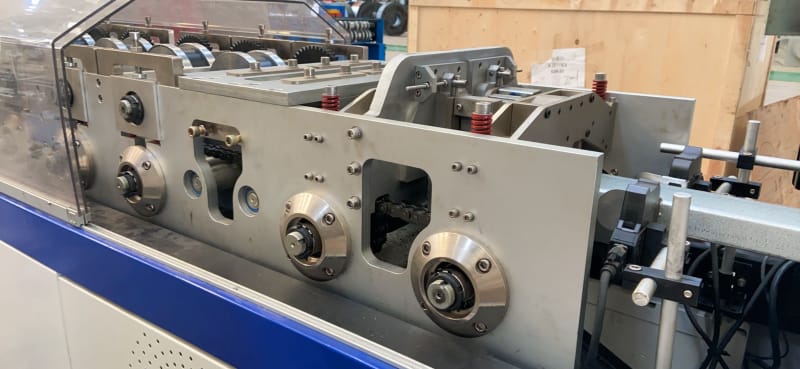

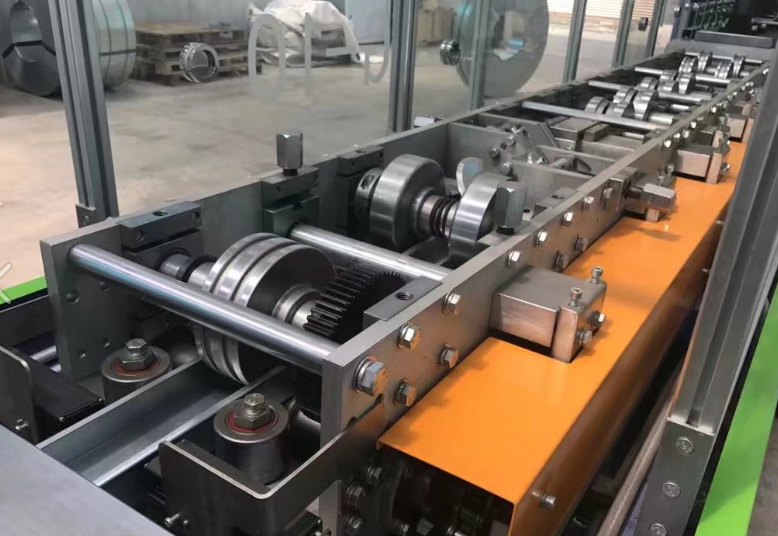

Main rolling forming machine

1. Transmission, we use gear, chain as tranmission.

2. Main servo motor: 5.5kw

3. Roller material: SKD11

4. Shaft mateiral : 40Cr

5. Forming speed: 30m/min

6. Production capacity: 80 to 100 square meter per day, if you work 8 hours per day.

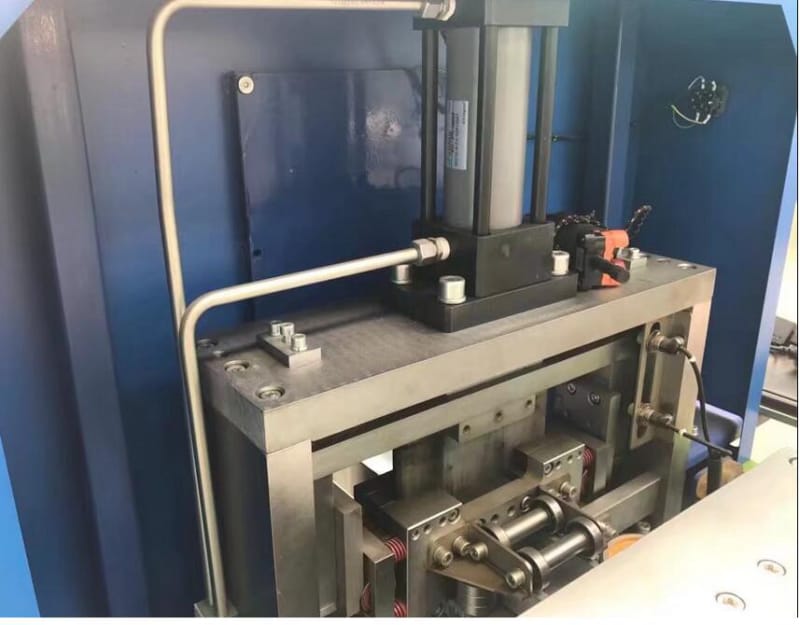

Shearing System

Hydraulic station

1. Power: 5.5kw

2. Oil tank: 120OL

3. Brand: Yuken series
