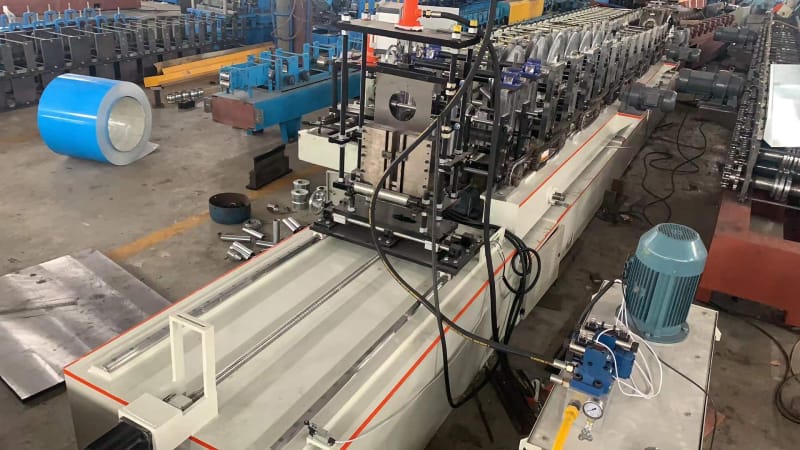

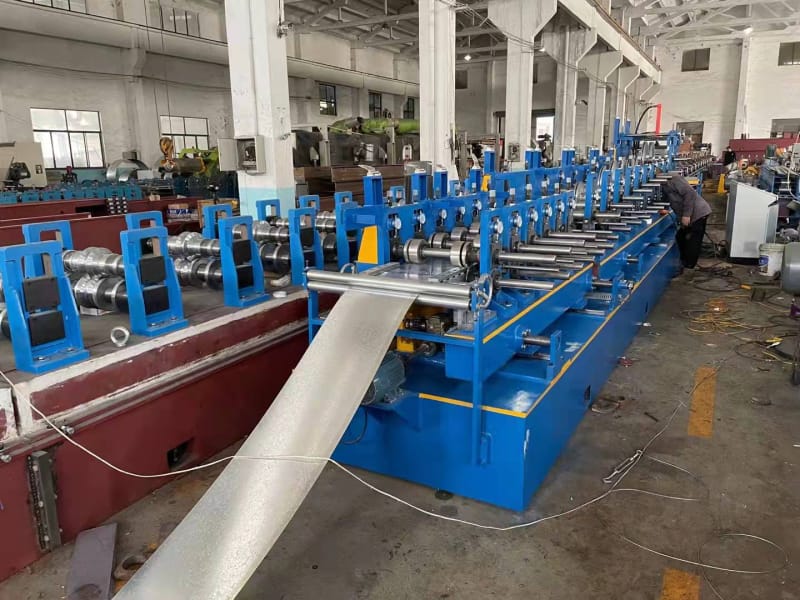

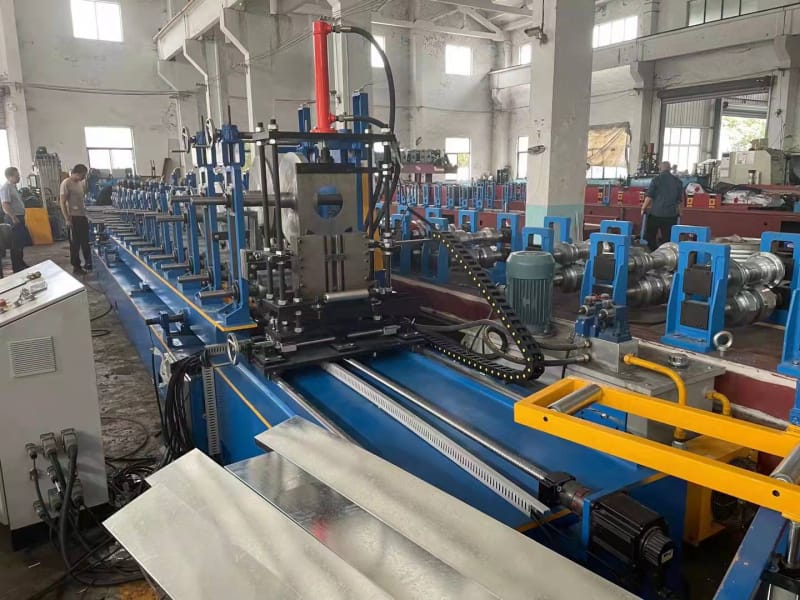

Strips U Shape Baffle Ceiling Roll Forming Machine Automatic Aluminum Baffle roll forming machine

Youtube link: https://youtu.be/TGS78jnKoCM

The full automatic U baffle ceiling roll forming equipment is fully automatic computer controlled type, and the imported rotary encoder has automatic side length. It takes only 1 minute to change from one specification to another. The input specification model is automatically converted and input directly.

Equipment features:
- High-precision guide column machine
- Forming roller: 14 roll forming stations
- maximum speed: 0-30m/min
- Baffle roll Forming thickness: 0.6-0.9mm
- U shape Baffle roll forming machine Unit includes: Uncoiler,  servo automatic variable specification, roll forming machine, automatic With cut off,
control box.

Cangzhou zhongtuo full automatic U baffle ceiling roll forming equipment is fully automatic computer controlled type, and the omron encoder has
automatic side length. It takes only 1 minute to change from one specification to another. The input specification model is automatically converted
and input directly.

 U shape baffle ceiling roll forming can produce both perforated baffle ceiling and plain baffle ceilings.

Universal U shape baffle ceiling roll forming machine can produce the metal baffle ceilings of different sizes. The width and height can be set on the touch screen. There are 3 units of servo feeder to control the width and height settings, for the servo feeder we use famous brand "YASKAWA", this will ensure the accuracy running of the baffle ceiling roll forming production.
