Stud & Track Machine

Automatic C channel steel stud and track roll forming machine

Automatic C channel steel roll forming machineAutomatic C channel steel roll forming machineis weldly used in the celling and drywall construction.Compared with cement construction and wooden construction,Steel frame is more light and durable.Thanks to these advantages, C/U/Omega stud is welcomed in construction field.Advantages of ourAutomatic C channel steel roll forming machine1.High speed.Ourhigh speed C/U/Omega stud roll formingmachine speed can up t0 80m/min.Normally, C/U/Omega stud roll forming machine's speed is around 45m/min,2.High durable.high speed C/U/Omega stud roll forming machine adopts cast steel roller fixer.3.High automatic.high speed C/U/Omega stud roll forming machin...

   Inquire


Automatic C channel steel roll forming machine

Automatic C channel steel roll forming machine is weldly used in the celling and drywall construction.Compared with cement construction and wooden construction,

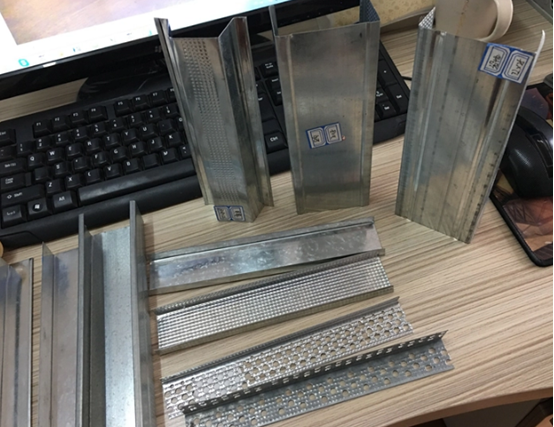

Steel frame is more light and durable.Thanks to these advantages, C/U/Omega stud is welcomed in construction field.


Advantages of our Automatic C channel steel roll forming machine

1. High speed. Our high speed C/U/Omega stud roll forming machine speed can up t0 80m/min.Normally, C/U/Omega stud roll forming machine's speed is around 45m/min,

2. High durable.  high speed C/U/Omega stud roll forming machine adopts cast steel roller fixer.

3. High automatic.  high speed C/U/Omega stud roll forming machine adopts PLC systerm.User can set production quantity, production speed on control cabinet.



Working process:

Decoiler--feeding--roll forming--punching(if need holes or logo)--cutting--product table



Technical parameters for the whole production line:

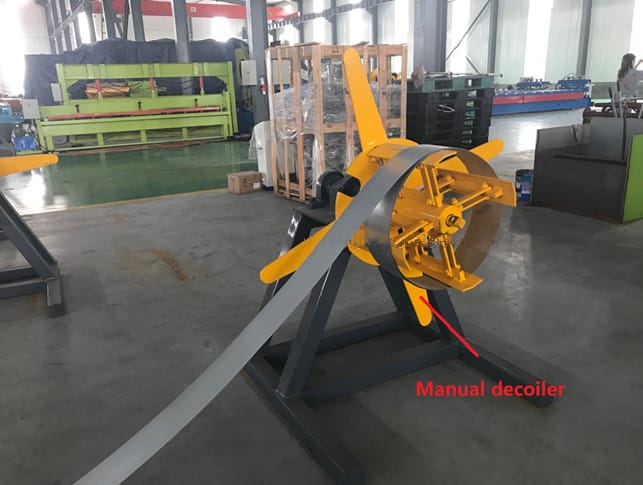

1.Manual decoiler

  Capacity:1.5T

  Coil inner diameter:350-450mm

  Coil width:300mm

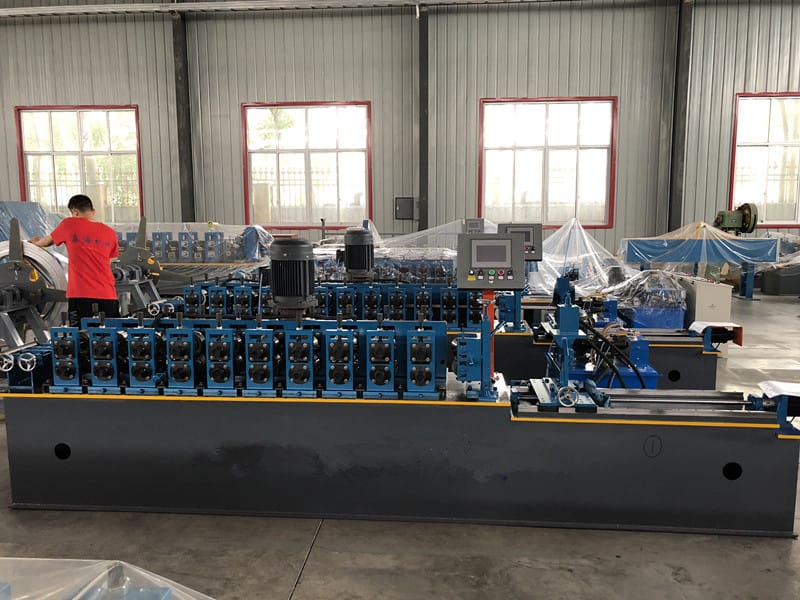

2.Roll forming machine

1)machine structure:cast iron roller fixer

2)Main power:5KW siemens motor

3)Forming stations:12 stands

4) Way of drive:by gear

5)Diameter of shaft:50mm

6)Max rolling speed: 45m/min

7)Thickness: 0.3-0.8mm galvanized steel or prepainted sheet,G550Mpa

8) Material  width:100mm~300mm

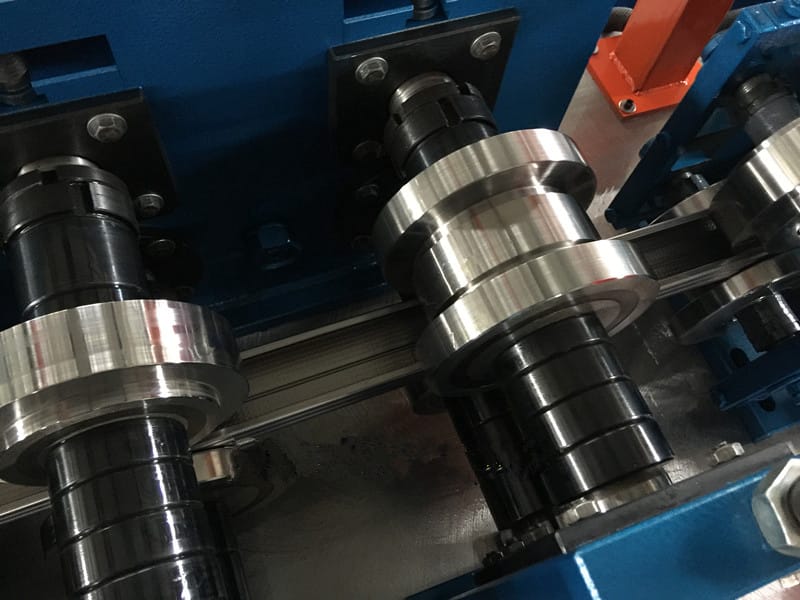

9)Material of roller:CR12 with quenched treatment

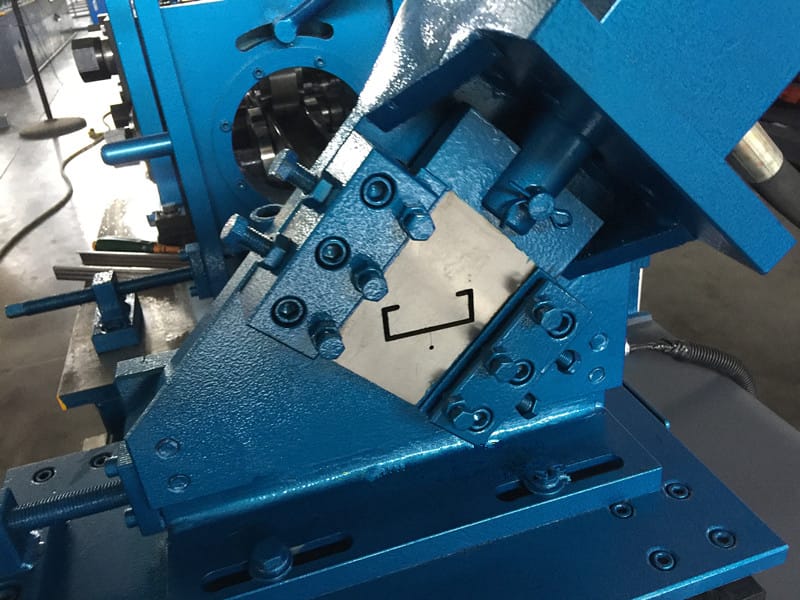

10)Material of blade mould:Cr12, quenched 58-62

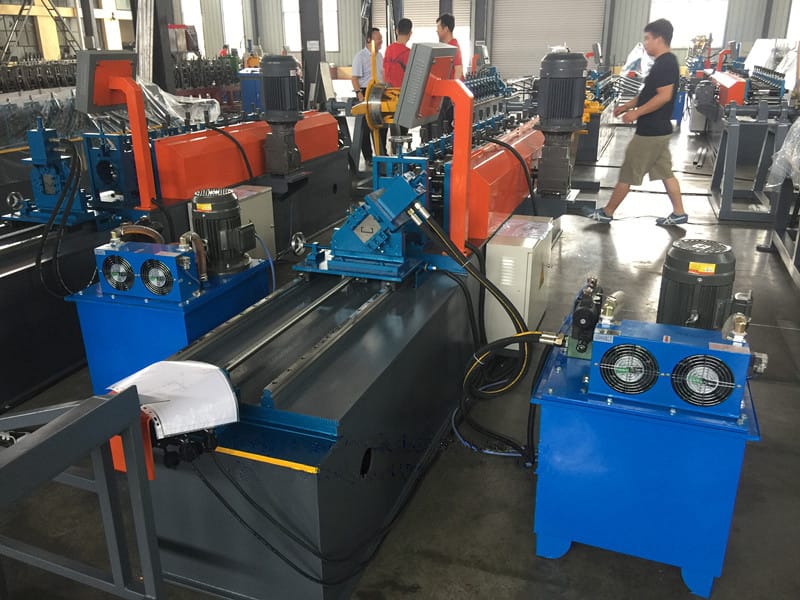

11)way of cutting:hydraulic mould cutting(flying cut,cut without stop)

12)Length cutting tolerance:+/-1.0mm

13) Electrical requirement:380V,50Hz,3P


3.Control system

1)Control system:PLC

2)PLC brand:Delta

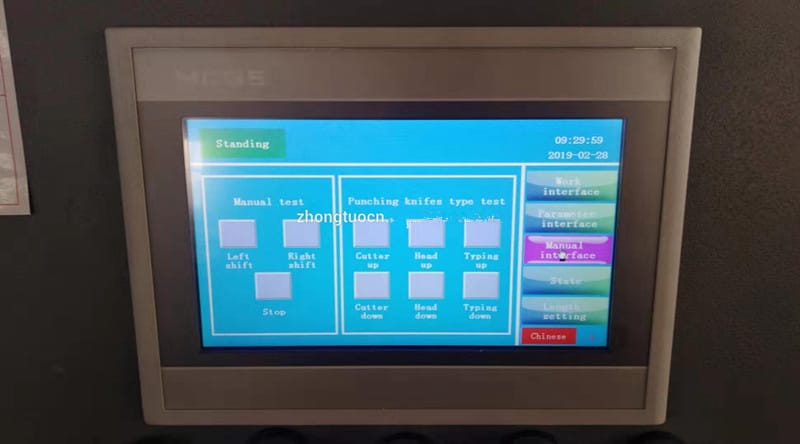

3)Screen:Touch screen

4)Screen brand:Touch screen

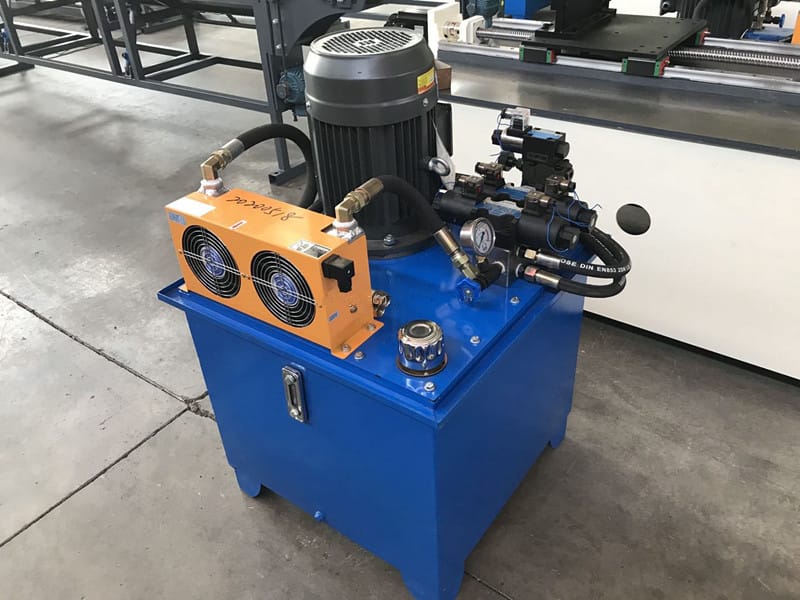

4.Hydraulic system:

1)Hydraulic pressure :16Mpa

2)Hydraulic power:4kw

3)Cooling system:fan cooling

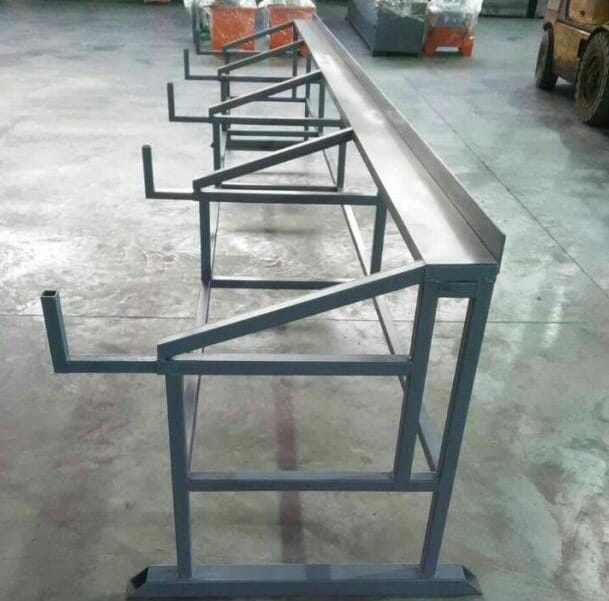

5.Product table

1)Length:3m

2)Manual or automatic
