Light Gauge Steel Profile stud and track Machine

Light Gauge Steel Profile stud and track MachineThe light gauge steel profile roll forming machine can produce various profiles such as: stud, track, channel, C/U/T shape, etc. whichoften used as the vertical frame of non-bearing wall system, ceiling, gypsum board support, etc.According to the profile shapes, one machine can produce one or more sizes profiles.Also, it can be designed as high speed, non-stop-cutting system.Main Machine of Light Gauge Roll Former 1. Roll stand: 14 stations, it includes material feeding rollers, main forming rollers 2. Main motor power: 5.5KW, it adopts cycloid cone pulley reducer 3. Material of the roller: 45# high grade steel, chromeplate 4. The roller proces...

   Inquire


Light Gauge Steel Profile stud and track Machine

The light gauge steel profile roll forming machine can produce various profiles such as: stud, track, channel, C/U/T shape, etc. which often used as the vertical frame of non-bearing wall system, ceiling, gypsum board support, etc.

According to the profile shapes, one machine can produce one or more sizes profiles. Also, it can be designed as high speed, non-stop-cutting system.


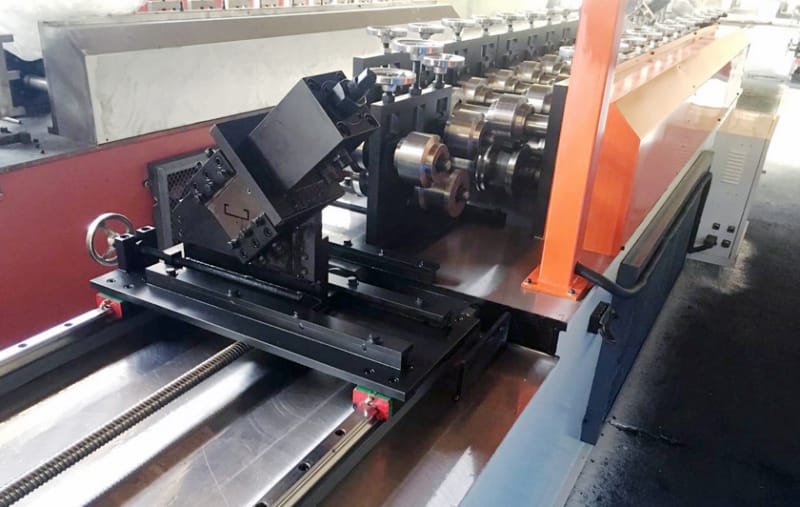

Main Machine of Light Gauge Roll Former

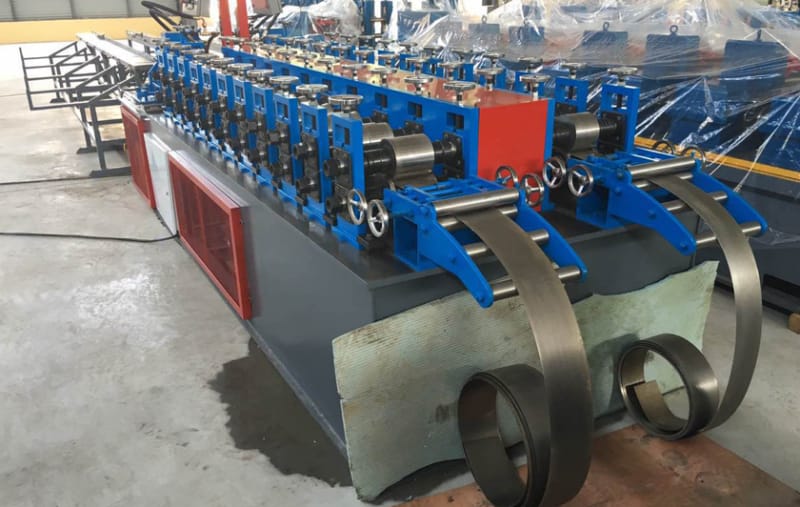

  1. Roll stand: 14 stations, it includes material feeding rollers, main forming rollers

  2. Main motor power: 5.5KW, it adopts cyc loid cone pulley reducer

  3. Material of the roller: 45# high grade steel, chrome plate

  4. The roller processed by CNC machine with finish machining. The surface adopt finished polishing, the roughness is 0.05mm

  5. Material of the main shaft: 45# forged steel with heat treatment

  6. The diameter of the main shaft: Φ70mm

  7. Material of frame: welding by 250 x 125mm H shape steel, by using carbon dioxide gas arc welding. The surface used shot blasting treatment.

  8. Typical Profile Drawing of Stud, Track, Channel Roll Forming Machine


Typical Profile of Stud & Track, Channel Profile Drawing


Technical Parameters of Light Gauge Steel Profile stud and track Machine

Item

Parameters

Coil thickness (mm)

0.4-0.6

Roll stand

13

Main power (Kw)

5.5Kw

Main shaft (mm)

Ø 60

Cutter material

Cr12

Cutting accuracy

10±2mm

Punching

Optional

Hydraulic station power (Kw)

4

Control system

PLC

Size adjusting way

Spacer

Main machine dimension (mm)

7000x 900 x 800
