                                                         B deck roof deck roll former steel metal floor deck roll forming machine in American market

Roof deck is essentially the structural component of the roof to transfer the load to the supports – typically steel joists or beams.

This lists the main functions of roof deck:

Encloses Building from Wind

Provides Fire Resistance as Part of UL Assembly

Structural Base of Roof Membrane

Resists Dead, Snow, Roof Live, Seismic and Wind Loads

Transfers Wind and Seismic Loads to Vertical Components of Lateral Force Resisting Systems through Diaphragm Action

Roof Deck Not Intended to Be Watertight in Any Circumstance!!

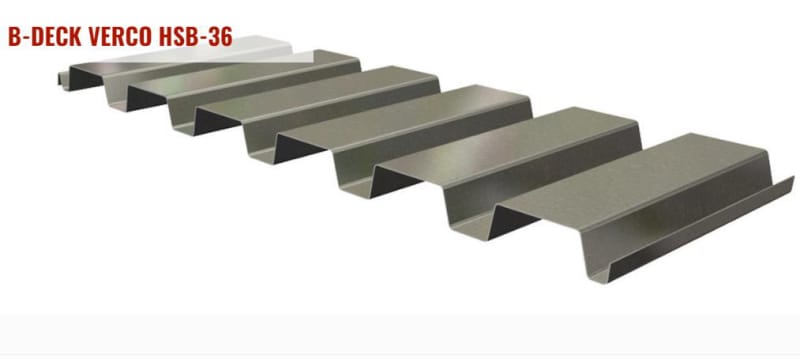

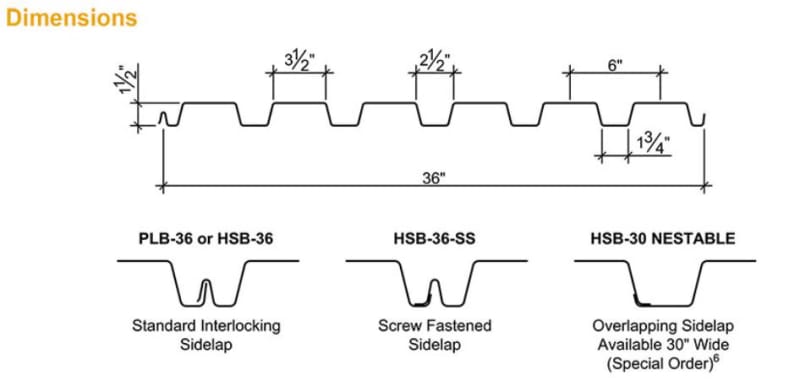

ROOF DECK 1.5" TYPE B:

"B" deck is generally known as "wide rib" deck

The most common deck profile in the industry and by far the most widely used

Comes in 36” coverage

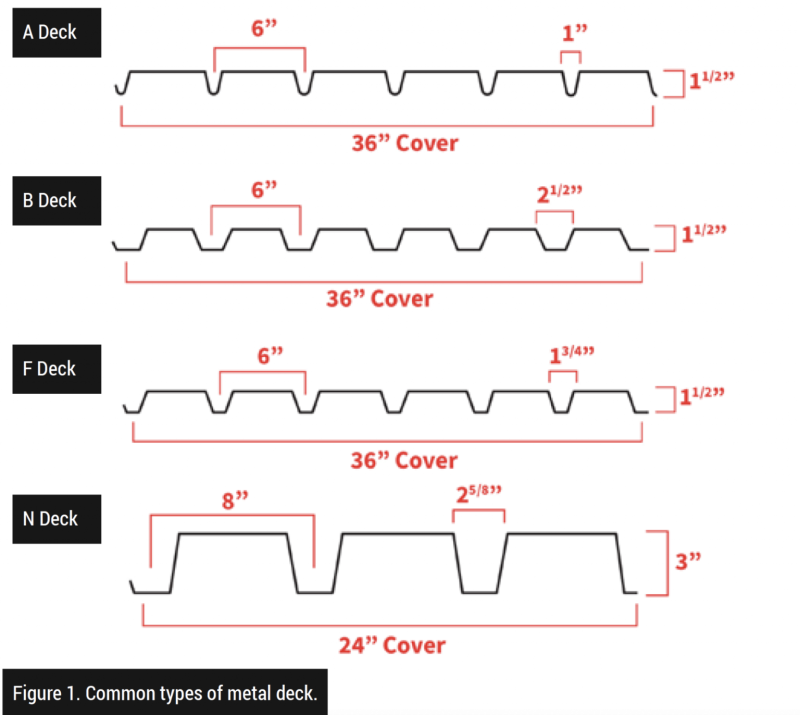

There are also other roof decks for your reference.




Cangzhou Zhongtuo Machinery is a leading producer of all kinds steel deck roll forming machines. We had experience of making roll forming machine of B deck, N deck, roof deck and other floor deck machines.

B Deck is a conventional metal deck profile in the United States which meets recent North American Specification(ANSI standard). B Deck is usuallly produced using 0.8-1.5mm(Gauge 22, Gauge 20, Gauge 18, Gauge 16) thickness galvanized steel.

Our roll forming machine uses 28 forming stations to make perfect B Deck profile, if the yield strength of steel material is higher than 345MPa, it will need more forming stations. Our machine doby is sturdy and durable. The machine body is about 20 meters long, it can be disassembled into 3-4 sections for easy transportation and installation. The roll forming part has two 22KW motors, Siemens brand, powerful during production. Shafts φ85mm, forming rollers GCr15, chromed plated surface is bright and not easy to rust, and will not cause scrathes on the surface of galvanized steel. The exquisite processing technology makes the machine more smooth in operation and it has a longer service life. The profile produced by our roll forming machine is straight and horizontal, with high accuracy in flatness and distortion, and the length accuracy can be controlled within plus or minus 1mm.

Cangzhou zhongtuo can also make other types of metal deck roll formers, for information on any of our roll forming machines please contact with us.

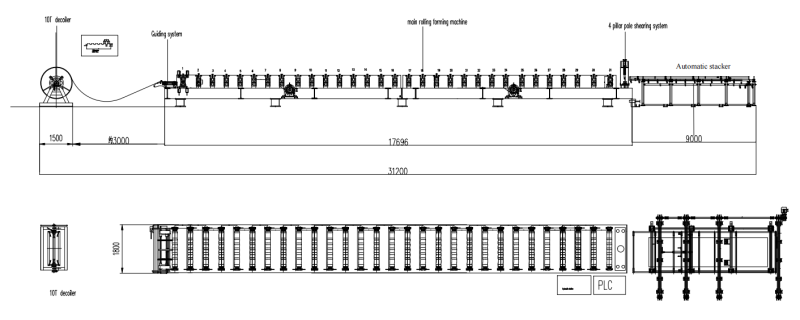

Metal decking machines working flow:

Decoiler (Manual decoiler or hydraulic decoiler optional)----> Metal decking rolling forming machine -----> receiving table or automatic stacker( optional)




1.Components of the36” B Deck N Deck Metal floor deck roll forming machine

No.NameQuantity
1Manual/hydraulic Decoiler with loading car1 set
2Main roll former1 set
3Control system1 set
4Hydraulic system1 set
5Product table/Auto stacker1 set

2.Technical specifications of the 36” B Deck N Deck Metal floor deck roll forming machine

ItemNameSpecifications
1Raw materialPPGI,Galvanized steel,Stainless steel
2Raw material thickness0.7-1.2mm or as customer’s request
3DecoilerManual/Hydraulic decoiler
4Roller station28 station(according to profile drawing)
5Roller material45# steel with quenched treatment
6Shaft diameter90mm
7Shaft material45# steel with tempered
8Transmissionby double chains
9Motor power11 kw
10Machine frame350H steel welded
11Cutting typeElectric motor cutting
12Hydraulic power5.5kw
13Cutting blade materialCr12 with quenched treatment
14Cutting tolerance+/-1mm
15Control systemPLC
16BrandPLC:Delta/Siemens/Mitsubishi


Touch screen:Delta/Siemens/Mitsubishi

Encoder:Omron

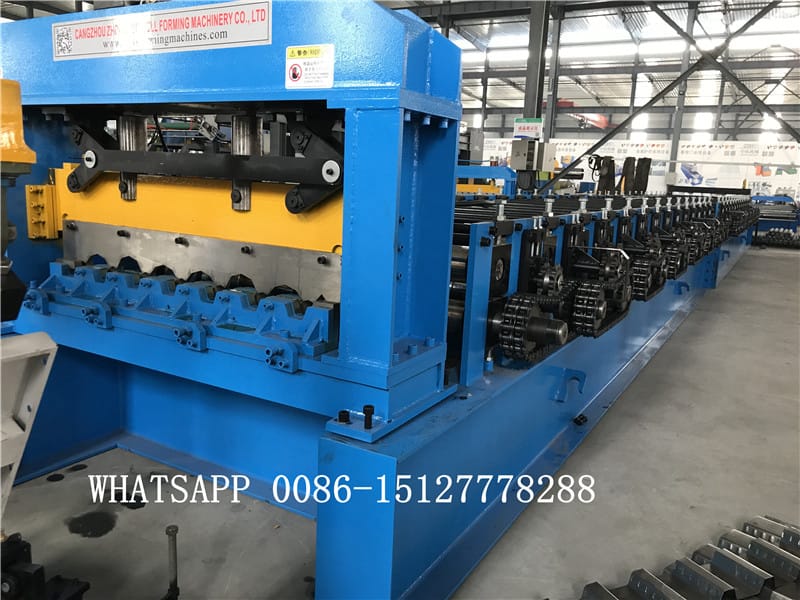

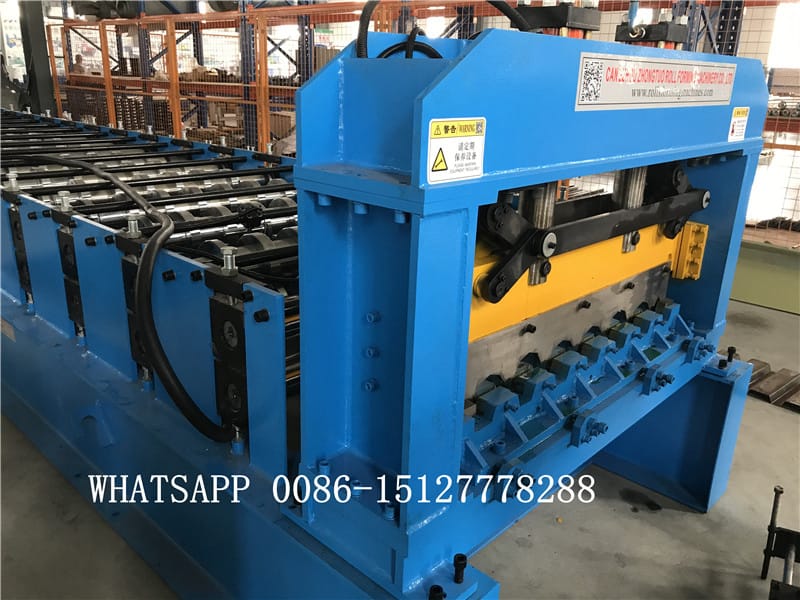

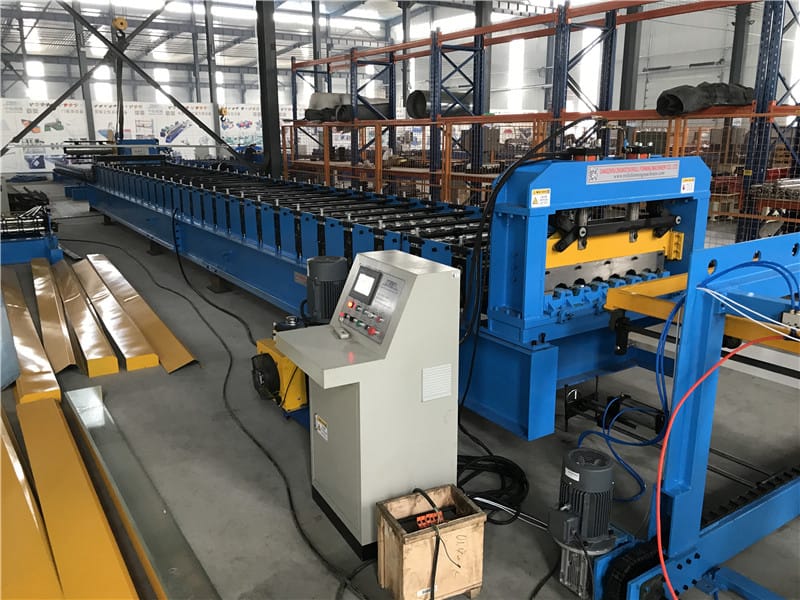

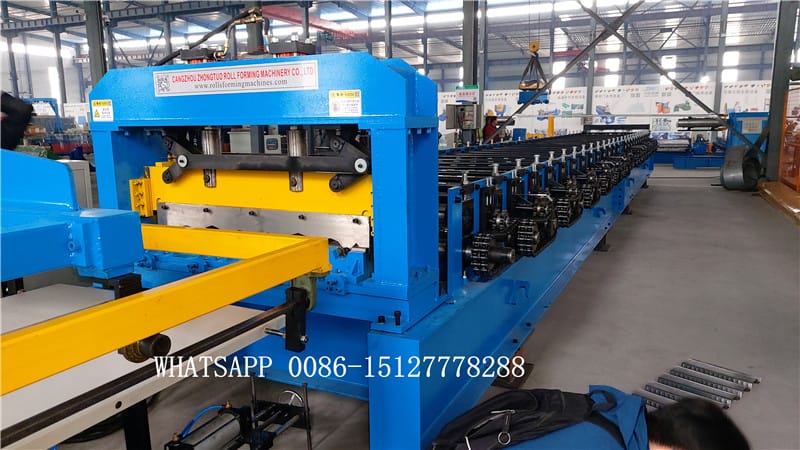

3.Pictures of the 36” B Deck N Deck Metal floor deck roll forming machine:


4.Working videos of the 36” B Deck N Deck Metal floor deck roll forming machine:

https://www.youtube.com/watch?v=aMIxaGKxApc


https://www.youtube.com/watch?v=WJS4mUEh89U&t=58s


https://www.youtube.com/watch?v=wtYPvo3u9p8


There are more other roll formers for you check, any interest, welcome to contact us.
