Gi Floor deck composite decking sheetroll forming machine steel floor panel roll former


This machine is with pre-shearing device, can cut the feeding sheet automatically before roll forming, it can also save the material in case of any waste, the roller material is Gcr15, shaft material is 45# steel, our machine rollers are bigger than other suppliers, some rollers are with bearings inside to make all the rollers work in one line and produce beautiful deck sheet, also can prolong the machine using life.

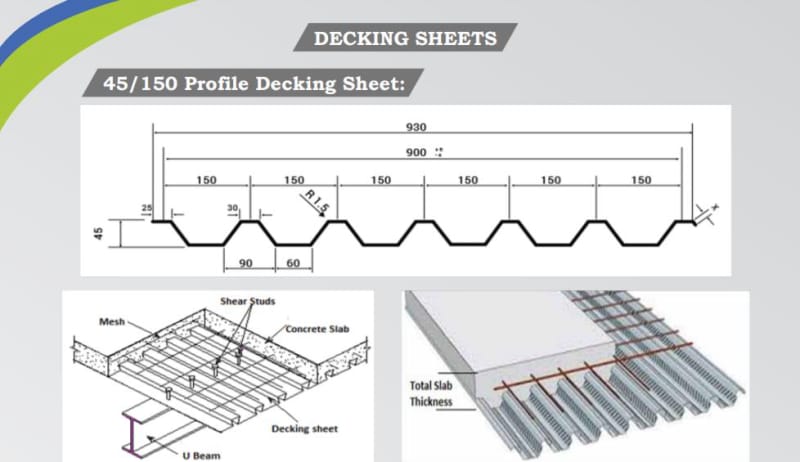

PROFILE DRAWING


The work flow for roof profile machine

Metal floor decking steel roll forming machine B deck roll former


Details

Parameter

Raw material

PPGI & GI

Material thickness

18-22 gauge

Sheet cutting length

Adjustable

Part 1: 10 Ton hydraulic decoiler

Part 2: Main roll former

Feeding device



Steel plate welded as the feeding platform

One set guiding roller

Rolling shaft

Shaft material:45# STEEL

Shaft type: solid shaft

Shaft diameter: 100 mm,Tempering treatment to prevent deformed and improve hardness

Roller



Gcr15

0.05mm Chromed treatment, make the rollers more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life

Rolling station

31 rolling stations

Middle wall plate

20mm thickness

Work speed

0-25 m/min

Machine structure

Carbon steel welded structure

Machine basic frame

400# H steel welded, Anti rusty treatment after welding

Work power

22+22 kw

Rolling spacer

Anti rusty treatment

Steel bar

Anti rusty treatment

Transmission

By Chains with cover

                                                     Part 3: PLC control system

Frequency brand

Delta (original)

PLC brand

Delta (original)

Screen type

Touch screen, also have buttons on the panel

Screen language

English/Chinese

Low pressure electric part

Schneider brand

Encode

Omron brand
