Simple steel coil slitting line metal sheet cut to length and slitting line machine with recoiler

Simple steel coil slitting line metal sheet cut to length and slitting line machine with recoilerSimple hydraulic slitting line is a complete line to slit the big steel coil into strips and then rewinding by frequency converting control , it can slit various size you need. It is composed as coil car, decoiler, slitter(with cut to length function), scrap winder, tension stand, recoiler and exit coil car. It can slit cold rolled steel, Galvanized steel, Stainless steel, Hot rolled steel , etc..Some factories will use this simple line to slit the big coils into small coils, then produce other goods directly, such as ridge caps, flashes, gutter and so on. if for the speed no high request,...

   Inquire


               Simple steel coil slitting line metal sheet cut to length and slitting line machine with recoiler



 Simple hydraulic slitting line is a complete line to slit the big steel coil into strips and then rewinding by frequency converting control , it can slit various size you need. It is composed as coil car, decoiler, slitter (with cut to length function), scrap winder, tension stand, recoiler and exit coil car. It can slit cold rolled steel, Galvanized steel, Stainless steel, Hot rolled steel , etc.. Some factories will use this simple line to slit the big coils into small coils, then produce other goods directly, such as ridge caps, flashes, gutter and so on. if for the speed no high request, and for the accuracy no high request, then you can choose the simple line to save cost.



Quick Details

Metal coil thickness range: 0.2-1 mm

Metal coil width range: 600-1250 mm

Metal coil weight : 10Tons (Max)

Line speed : 0-25m/min

Slit quantity5 pcs 1mm-0.2mm

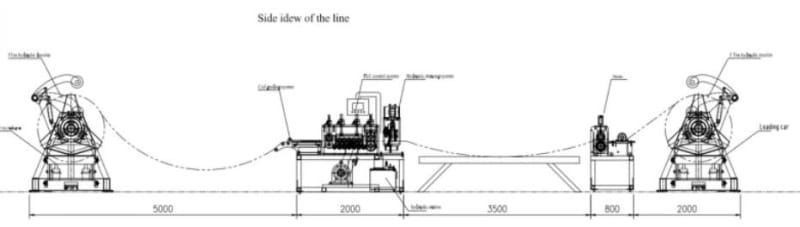

LAYOUT of Simple hydraulic slitting line

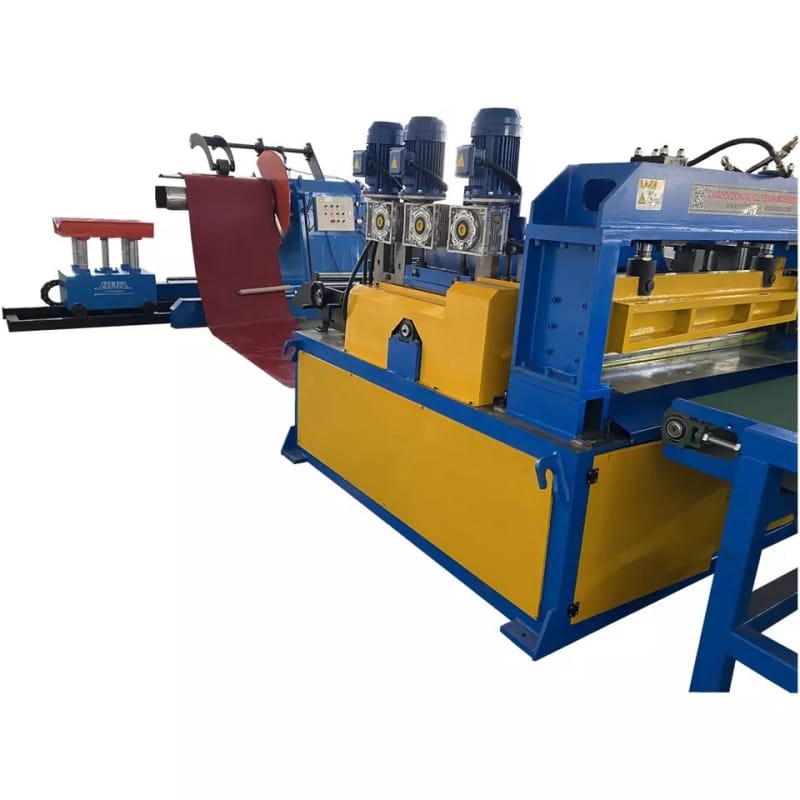

Slitter

Composed of side guide device to achieve positioning strip and stop the jumping of strip, bottom-stand, knife pivot, movable bracket

It is the important part to slit good-quality coil strips.

Can slit the different size according as blade adjustment.

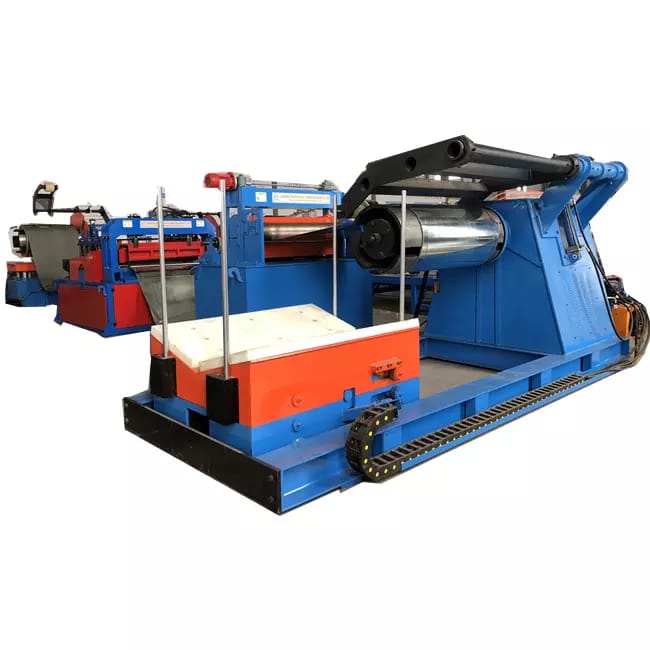

Recoiler


Designed with Overall steel plate cantilever structure.

Designed with hydraulic expand and shrink model.

Designed with the hydraulic press arm equipped with the spacers to guarantee the even rewinding quality.

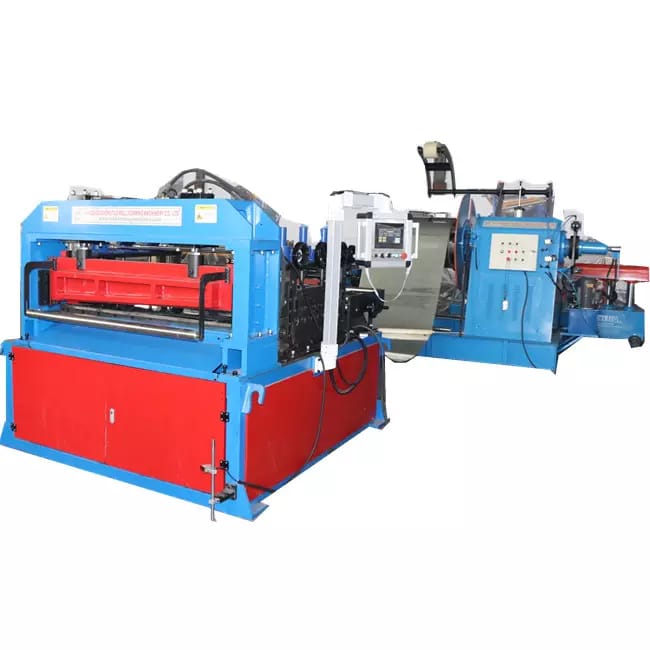

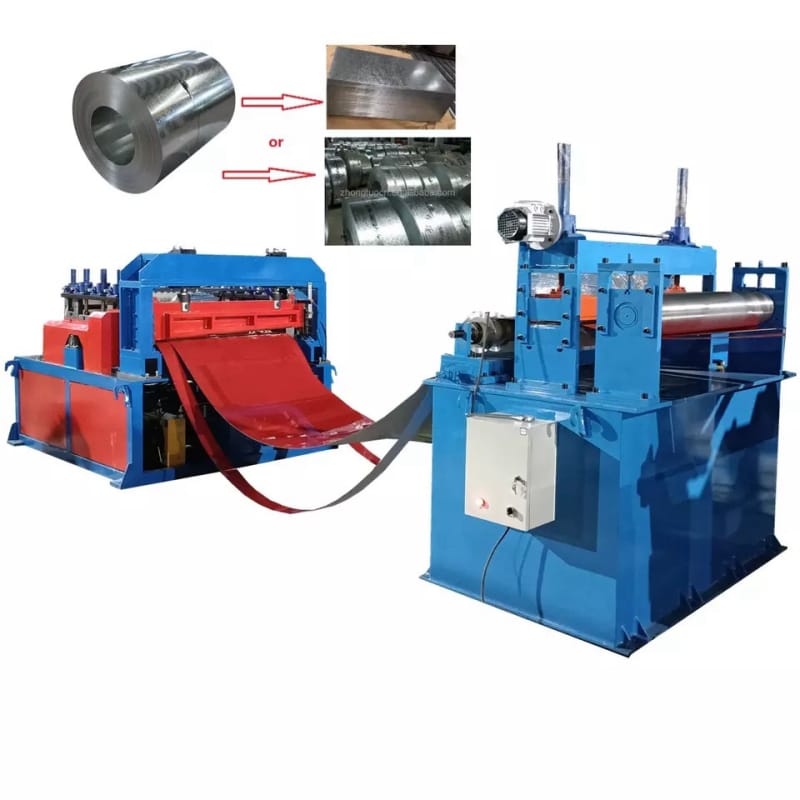

Color steel coil Galvanized steel Coil Thin material combined Slitting Line Machine and Cutting to Length Machine and recoiler
1.Formed Material
PPGI,GI,AI,GL
Thickness:0.2-1.0mm
Width:1000mm/1250mm(As request)
2.Working flow
Decoiling→Leveling&Slitting &Cutting→Tension stand→Recoiler→Loading car
3.Main technical specifications

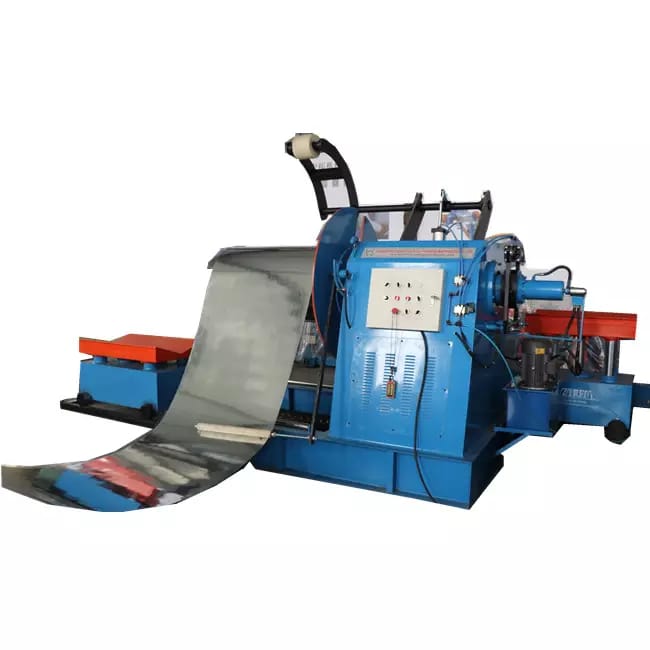

Decoiler with loading car
Capacity:5-10Tons
Leveling roller
11,up 5 down 6,with one pair of rubber roll feeder
Cutting blade material
Cr12 with quenched treatment
Total power
36.5KW
Total area needed
13m*2m*1.8m(L*W*H)
Control system
PLC
Electric brand
Siemens,Delta,Schneider,Mitisubishi
4.Voltage
380V 50Hz 3Phase
As your requirement
5. Line Speed
0-25m/min
The speed is adjustable

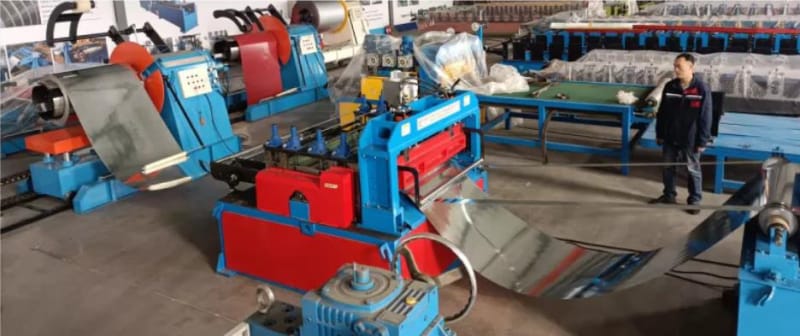

Working video of Simple hydraulic slitting line


https://youtu.be/BS36AZ8rJWk
