Garage Door rail roll forming machine

Where this Machine used:

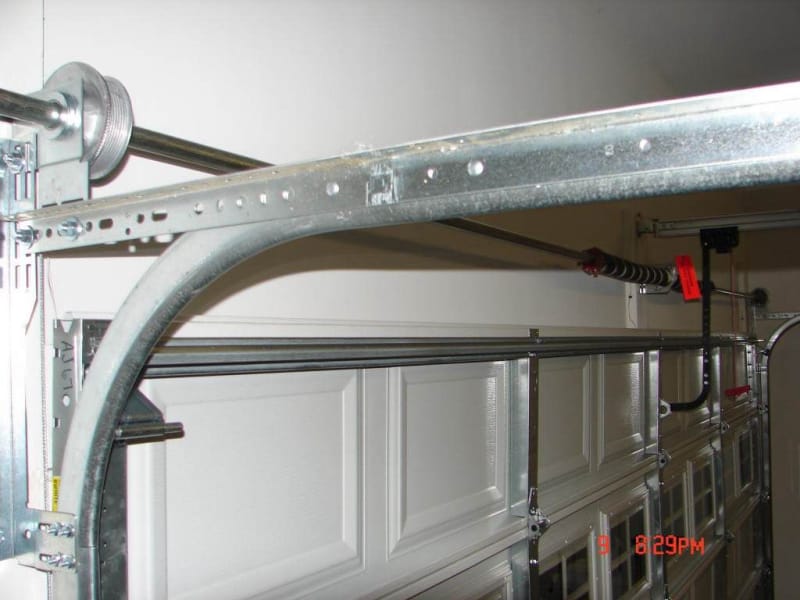

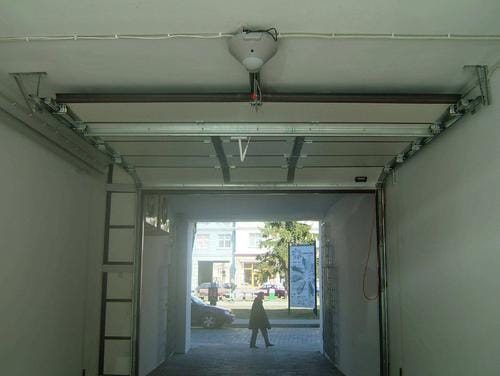

Usually used for the garage door tracks ,Here are some usage pictures for your reference:

The C type tracks drawing profile is customized(shape/size/and whether punching)

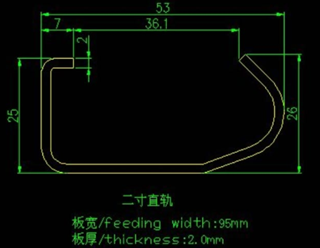

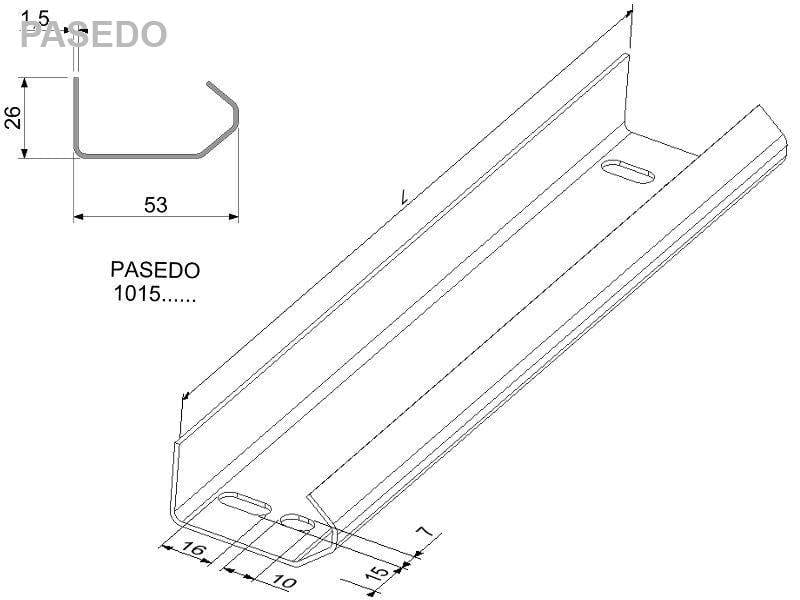

Here are some drawing profiles for your reference.

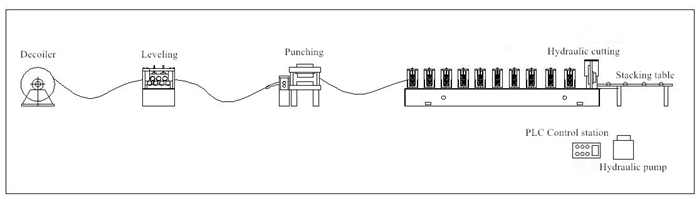

Working flow:

Manual decoiler→Feeding material into punching machine →Roll forming machine →Measure length →Hydraulic cutting →Finished Products


Technical parameters


Feeding device

Feeding width is adjustable with hand wheel

One set roller to carry and feed the sheet at the beginning

Rolling shaft

Shaft material:45# STEEL

Shaft diameter: 70 mm

Tempering treatment to prevent deformed and improve hardness

Roller

Cr12

Rolling station

14 rolling stations

Work speed

0-20 m/min

Machine structure

Carbon steel welded structure

Machine basic frame

Square pipe welded with panel cover

Work power

7.5 kw

Rolling spacer

Anti rusty treatment

Steel bar

Anti rusty treatment

Transmission

By gear with cover

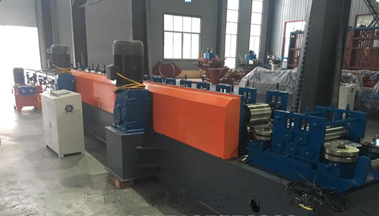

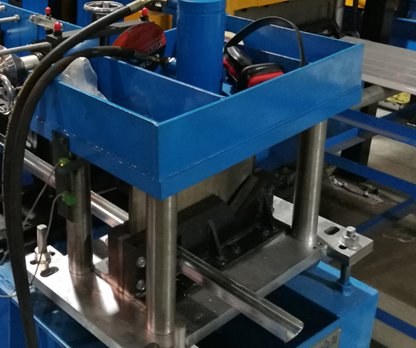

Machine pictures
