Cable Profile Roll Forming Machine With Punch Machine & Hydraulic Pre-Cutting Device

Cable Profile Roll Forming Machine With Punch Machine & Hydraulic Pre-Cutting DeviceMain technical specifications1. Coil Material: GI or Carbon Steel2. Forming material thickness: 1.0-2.5mm3. Decoil Type: Hydraulic Decoiler4.Electric releasing coil, hydraulic expanding, tension5. I.D:508, 610mm6.O.D: Max. 1500mm7. Leveling Device:2Rollers pinch feeding,7rollers leveling8. Leveling roller diameter:about Φ90mm9.Leveling motor power:4.0KW10. Feeding Type:Servo Feeding11. Servo motor power:3KW12. Punching Type: Punch Machine13. Punching Die: Cr12 Mov, quenching process14. Punching Die size: according to drawing15.Punching Power: 15KW16.Punching controlled by PLC17. Cutting: Hydraulic pre-cuttin...

   Inquire


Cable Profile Roll Forming Machine With Punch Machine & Hydraulic Pre-Cutting Device

 Main technical specifications

1. Coil Material: GI or Carbon Steel

2. Forming material thickness: 1.0-2.5mm

3. Decoil Type: Hydraulic Decoiler

4Electric releasing coil, hydraulic expanding, tension

5. I.D: 508, 610mm

6. O.D: Max. 1500mm

7. Leveling Device: Rollers pinch feeding, 7 rollers leveling

8. Leveling roller diameter: about Φ 90mm

9. Leveling motor power: 4.0KW

10. Feeding Type: Servo Feeding

11. Servo motor power: 3KW

12. Punching Type: Punch Machine

13. Punching Die: Cr12 Mov, quenching process

14. Punching Die size: according to drawing

15. Punching Power: 15KW

16Punching controlled by PLC

17. Cutting: Hydraulic pre-cutting

18. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62

19. Hydraulic Station Power: 15KW

20. Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)

21. Shaft Diameter: Φ 85mm

22. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm

23. Forming Station: 18 stations

24. Forming Speed: 0-15m/min

25. Forming Motor: 15KW

26Size adjustment: electrical power adjustment

27. Drive type: Chain drive

working flow chart

Decoiling --- Guiding & Leveling --- Punching --- Hydraulic Pre-Cutting --- Roll Forming --- Run-out Table

Main components

Components of Cable Tray Roll Forming Machine

Quantity

Hydraulic Uncoiler

1 Unit

7 Rollers Leveling

1 Unit

Servo Feeding

1 Unit

Punching Machine

1 Unit

Hydraulic Pre-Cutting

1 Unit

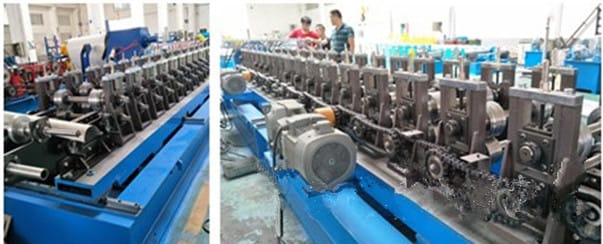

Main Roll Forming Machine

1 Unit

PLC Electrical Control Board

1 Unit

Hydraulic Stations

1 Unit

Run Out Tables

1 Unit

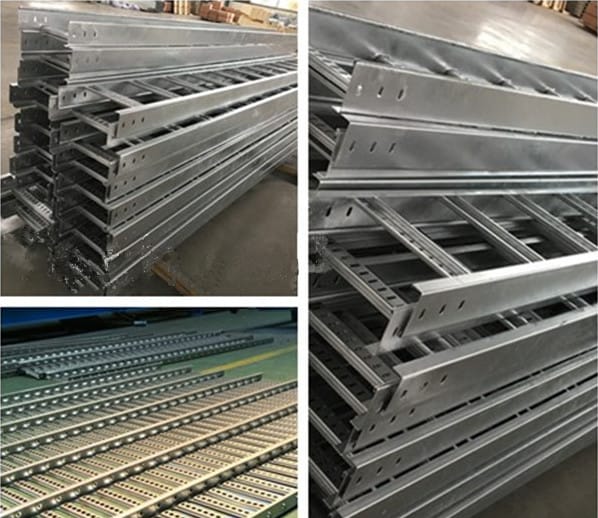

the finished product of the cable tray roll forming machine
