C & Z Purline Machine

The popular C and Z purline roll forming machine

Zhongtuo Roll Forming Machinery Co., Ltd. From 1996, is specialized in manufacturing of cold roll forming machines. Now we have plenty of customers from all over the world. We have established branch office, warehouse, and show room in India since last year, which will provide stable and timely supply, credible quality and sincere service.Our company insists on the service aim: Quality first, Credit first. In order to stranger our company also accept other payment terms, like L/C, D/P, O/A based on T/T.For the C/Z purline machine, we can give three options: C purline machine, Z purline machine and C/Z interchangeable roll forming machine. All those machines could support material thickness f...

   Inquire


Zhongtuo Roll Forming Machinery Co., Ltd. From 1996, is specialized in manufacturing of cold roll forming machines. Now we have plenty of customers from all over the world. We have established branch office, warehouse, and show room in India since last year, which will provide stable and timely supply, credible quality and sincere service.

Our company insists on the service aim: Quality first, Credit first. In order to stranger our company also accept other payment terms, like L/C, D/P, O/A based on T/T.

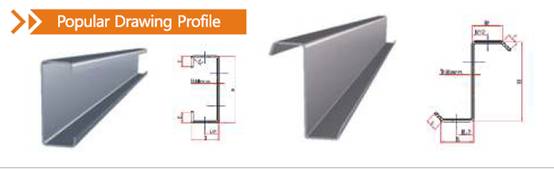

For the C/Z purline machine, we can give three options: C purline machine, Z purline machine and C/Z interchangeable roll forming machine. All those machines could support material thickness from 1.5 to 3.0mm and the bottom width from 80 to 300mm. C purline machine can only make C channel, it also has two types: one is fully automatic of changing sizes and other is changing sizes by spacers. Same of the situation of Z channel. But for the C/Z purline machine, C/Z interchangeable roll forming machine, it allows you to do the working from C to Z channel, from the size changing, all are fully automatic.

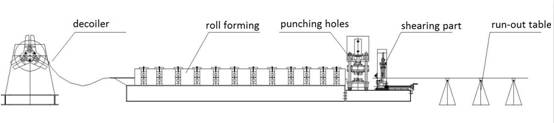

This is the Process drawing of our C and Z roll forming forming machine:




下载 (1).png

The main parts of our C and Z roll forming forming machine



S/N

Name

Parameter

Pictures

1DecoilerUsage: It is used to support the steel coil and uncoil it in a turntable way.Passive uncoil pulled by roll forming system.

1. Loading capacity: 1.5T

2. Uncoiling width: 300mm

3. Inner diameter: 450-550mm

下载 (2).png
2Feeding and levelingThis part will level coil to make sure it is neat clean and straight.下载 (3).png
3Roll forming machine

1. Size: 5300х1200х1400mm

2. Weight t: 3.8 tons

3. Voltage:380V/50HZ3Phase(as

customer’s request)

4. Roller fixer : Guide column

5. Frame : middle plate welded

Memorial arch frame type

6. Frame thickness:25mm

7. Drive mode: gear

8. Material of rollers: GCr12MoV

9. Material of shafts: 45# steel with

tempering

10. Diameter of shafts: φ50mm

11. Number of rollers :11 rollers

12. Main power: 5.5kw

  (Cycloidal planetary gear speed

reducer)

下载 (4).png

下载 (5).png

4Punching partThis part will together with shearing part.1. Mould material: Gcr12

2. Power supper: Hydraulic Station

下载 (6).png
5Shearing machine

1. Material of blades: Gcr12 quenched

2. Power supply : hydraulic power

3. Stroke switch : non-contact

photoelectric switch

下载 (7).png
6Hydraulic Station 1. Hydraulic motor Power: 5.5 kw2. Hydraulic oil: 46#

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and four hydraulic pipes. And two electromagnetism valves: one is for punching hole, one for cutting.

下载 (8).png
7Electric Control System

Feature:

1. Adopted PLC, transducer, touch

panel from Delta Taiwan to ensure

high speed with stability, precision

and lifetime.

2.Other electric element are Delta

3. Equipped with movable switch, air

break, radiator, transformer &

electric leakage protector for

operation convenience and safety.

下载 (9).png
8Run-out tableIt adopts welded steel and supported roller to transmit the products.





FAQ:

1.Does one machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.
