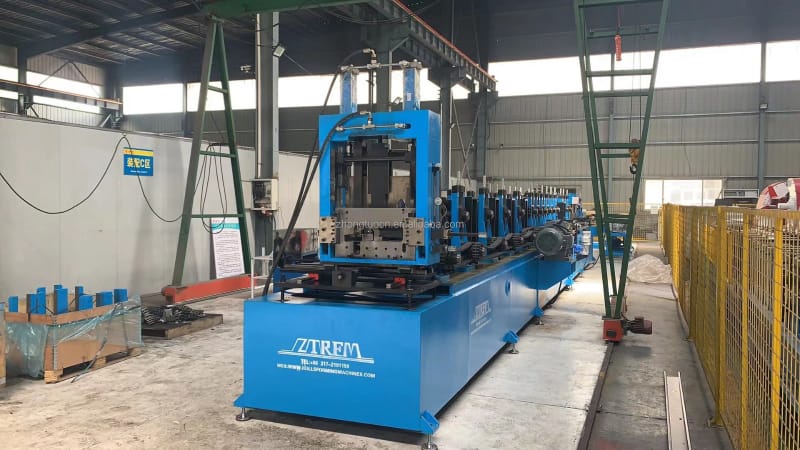

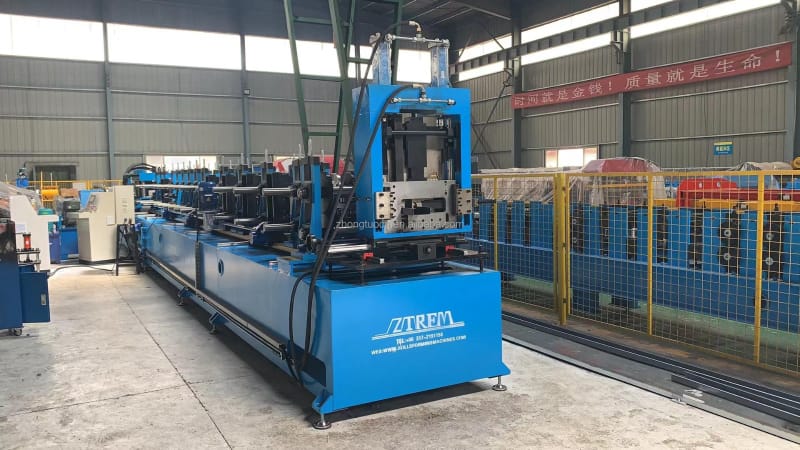

C & Z Purline Machine

Fully automatic or half automatic C/U/Z Purlin Roll Forming Machine

Introduction:Zhongtuo C/U/Z Purlin Roll Forming Machine can produce many sizes of C, U, Z purlins, it supports material thickness from 1.5mm to 4 mm. Our C/U/Z channel roll forming machine is well-known for its strong and durable design. The finished products of our machine are widely used in the large and medium-size enterprise civil construction, such as plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadium, and so on.Components of C/U Purlin Roll Forming MachineDecoiler--- leveling--- (punching) ---main roll forming--- (punching) ---shearing---run out tableFeatures of Zhongtuo C/U/Z Purlin Roll Forming Machine:Support many kinds of raw materials like carbon stee...

   Inquire


Introduction:

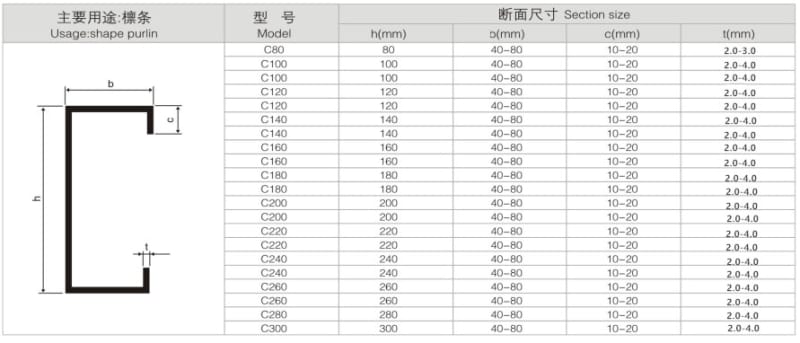

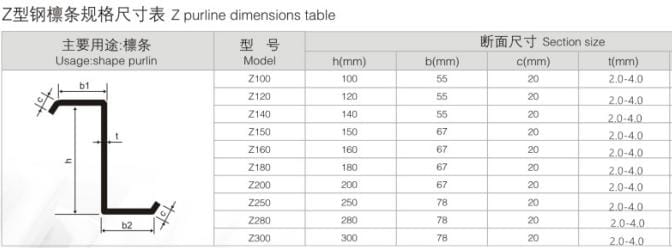

Zhongtuo C/U/Z Purlin Roll Forming Machine can produce many sizes of C, U, Z purlins, it supports material thickness from 1.5mm to 4 mm. Our C/U/Z channel roll forming machine is well-known for its strong and durable design. The finished products of our machine are widely used in the large and medium-size enterprise civil construction, such as plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadium, and so on.



Components of C/U Purlin Roll Forming Machine

Decoiler--- leveling--- (punching) ---main roll forming--- (punching) ---shearing---run out table

Features of Zhongtuo C/U/Z Purlin Roll Forming Machine:

  • Support many kinds of raw materials like carbon steel, hot rolled steel,

cold rolled steel and others.

  • C/U/Z purline roll forming machine is equipped with a reasonable leveling device to ensure the finished channels without twisting or sideways bending.

  • Decoiler takes inner expanding method, so it takes big loading capacity within little space.

  • For safety reasons, the whole process is operated and controlled by computer station.

  • For all the elements of the machine could be customized according your needs.[gview file="http://www.rollsformingmachine.com/wp-content/uploads/2014/12/details-description-of-purlin-roll-forming-machine.pdf"]

Technical specifications of Steel purlin roll forming machine

Raw materialItem Parameter Remark
Material Typehot rolled steelcold rolled steelcarbon steelSome material needs testing
Thickness1.5mm-4mm
tolerance_+1.5mm
Machine MaterialRoller Material45#steel
Shaft Material40CrHRC45
Shearing Blade MateriaCr12 MOV
Frame material

Working SpeedRoll Forming Speed5-15m/min
Forming Stand  Rolling Roller number16
TransmissionGear Box, Gear line

ShearingServo flying cutting saw
Other options
Hydraulic SystemValve and Pump

ControlPLC

Decoiler Single head5T, 10TAutomatic or Manual

Zhongtuo Cold Roll Forming Machinery is a professional company to provide C/U/Z Purlin Roll Forming Machine for the all over the world. As the professional roll forming machine manufacturer, we have modern management concept, strong research technology, advanced production technique and perfect service system.




If you are interested in this C Z purlin roll forming machine, welcome to contact me for the latest price.
