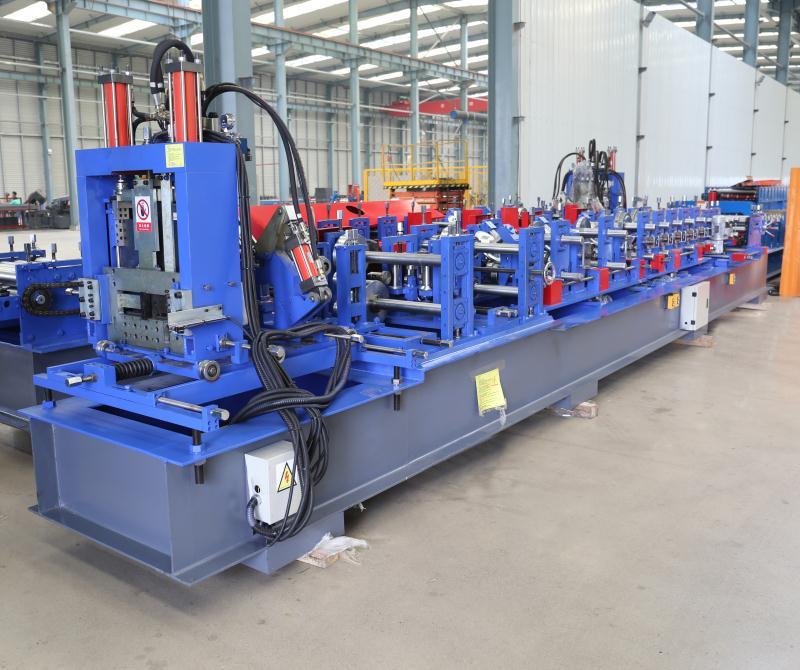

This CZ purlin making machine produces C-shaped and Z-shaped steel beams, which are key structural components in steel structure buildings. They are mainly used for:
Roof support: As the main or secondary roof beams, they support roof tiles or color steel plates.
Wall support: As wall columns or beams, they support wall panels.
Floor support: In multi-story steel structure buildings, they serve as the supporting structure for floors.

Product advantages

High strength: We use high-quality steels including Q195, Q235, Q345, Q355, ensuring finished products have reliable load-bearing capacity.

High precision: Length tolerance is controlled within ±1.0mm for accurate on-site installation.
Versatility: The machine produces a full range of C and Z steel profiles to meet diverse project requirements.

How the machine ensures finished product quality

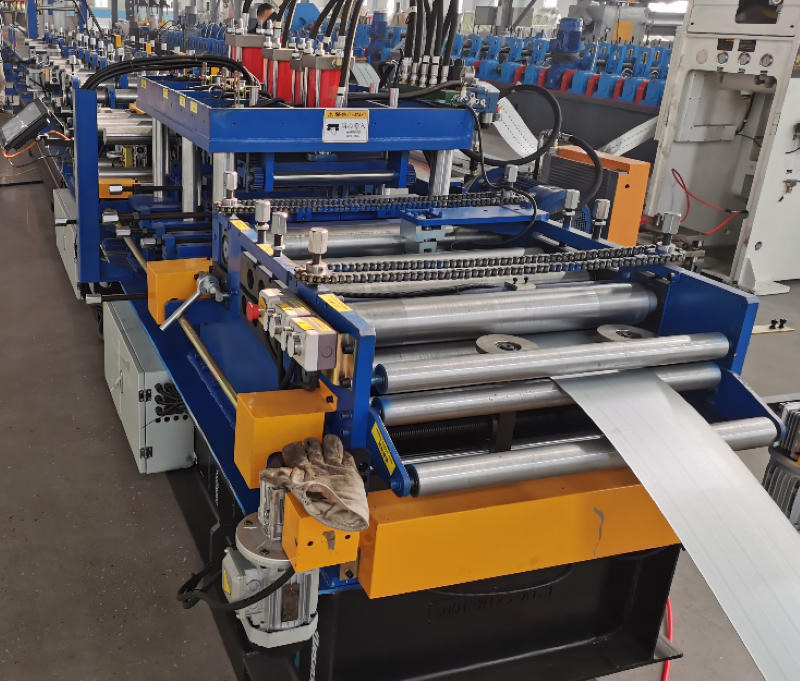

Automatic leveling: Straightens steel coils before forming to prevent waviness or distortion in the final product.

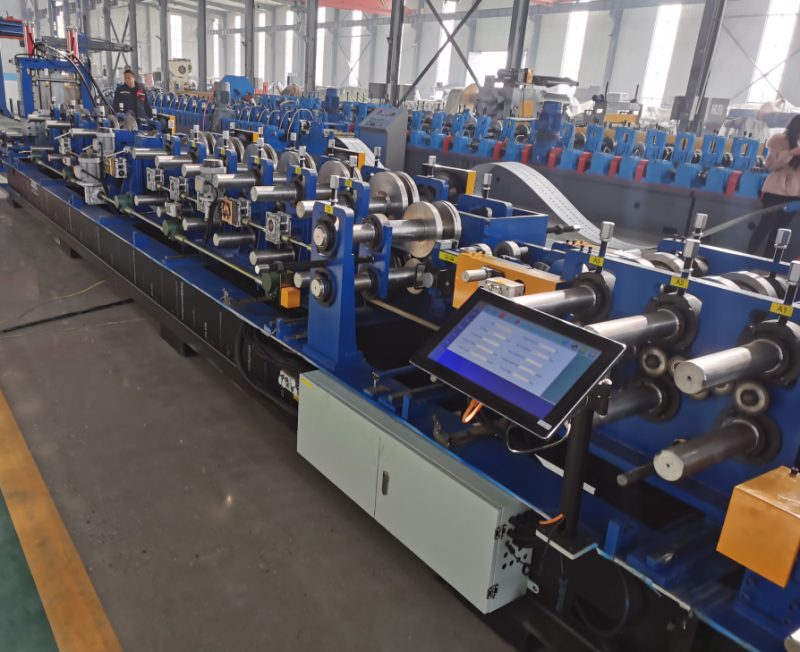

Servo drive system: Delivers stable, accurate forming and minimizes production errors.

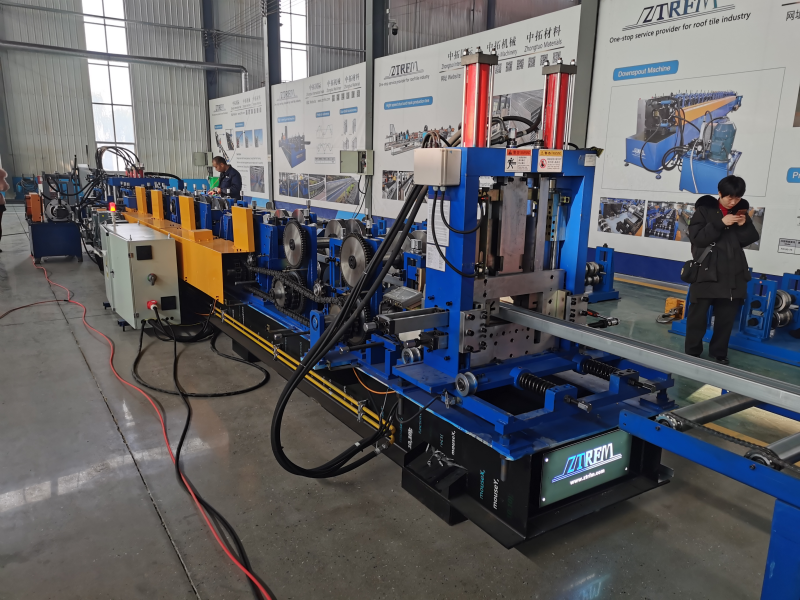

Hydraulic cutting: Produces clean, burr-free cut ends for consistent edge quality.

Frequently Asked Questions

Q: What thickness of steel can this machine process?
A: It handles galvanized steel coils or low-carbon steel coils with a thickness range of 1.0mm to 3.0mm.

Q: How long does it take to change the model?
A: Specification changeover is very fast, with a typical changeover time within 5 minutes.

Q: Does the machine support remote monitoring?
A: Yes. Equipped with an intelligent control system that adopts a computer interface instead of a traditional control desk, it supports remote monitoring of production status and remote operation from the office.
