CZ Purlin Making Machine: The Automatic Decoiler System
The CZ Purlin Making Machine, also known as the purlin machine or the CZ integrated machine, is a piece of cold bending forming equipment used in the construction industry. Its core function is to con...
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content

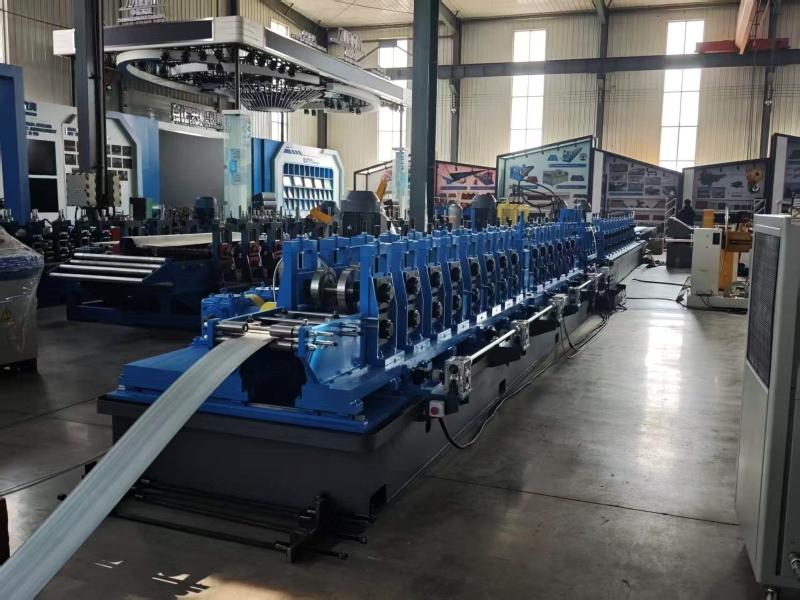

TheCZ Purlin Making Machine, also known as thepurlin machineor theCZ integrated machine, is a piece ofcold bending forming equipmentused in theconstruction industry. Its core function is to continuously roll and presssteel coils(such asgalvanized steel coils) through a series of rollers to automatically process them intoC-shaped steelorZ-shaped steel. Compared to traditional equipment, theCZ Purlin Making Machinecan produce bothC-shapedandZ-shapedsteel of different specifications with just one machine, eliminating the need to purchase two separate machines andsaving costs.

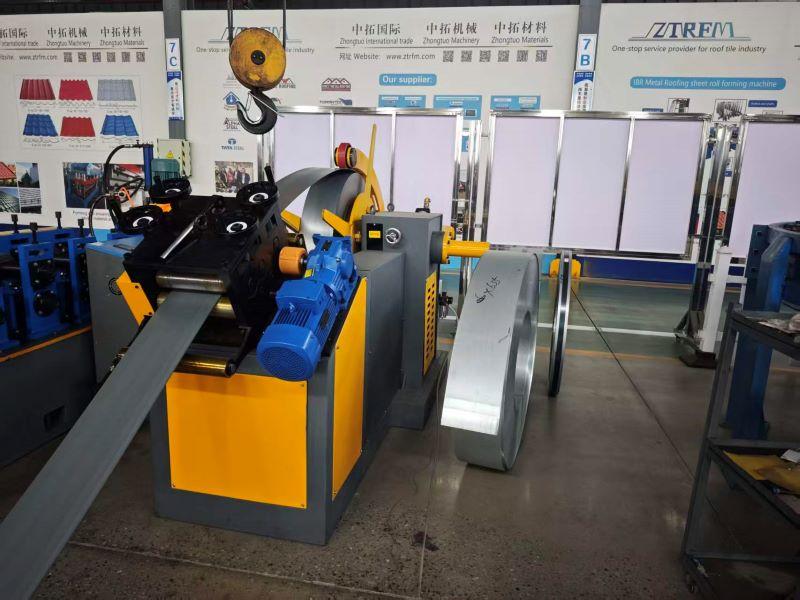

Regarding theAutomatic Decoiler Systemof theCZ Purlin Making Machine, theAutomatic Decoiler Systemis equivalent to the "digestive system" of the human body. Just like the stomach and intestines are responsible for orderly breaking down food (raw materials) and transporting them throughout the body (processing units), theAutomatic Decoileruncoils thesteel coilsinto continuous sheets, providing a stable "energy flow" for the entire machine. This system is an indispensable "front-end engine" for theCZ Purlin Making Machineto achieve efficient, stable, and intelligent production. Here is some information that I hope will be helpful for you to understand theCZ Purlin Making Machine.

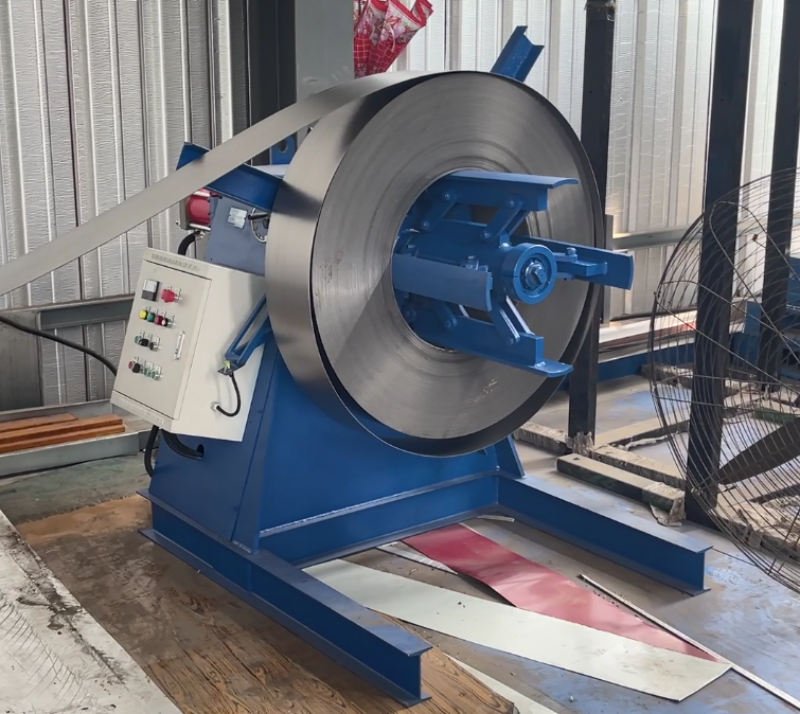

Automatic Decoiler System Parameters
| Parameter | Specification |
|---|---|
| Loading Capacity | Max 5 t |
| Max Coil Width | Max 500 mm |
| Coil Inner Diameter | 450 - 550 mm |
| Expansion Method | Hydraulic segment expansion |
| Drive Type | Electric motor transmission |
| Hydraulic Motor Power | 3 kW |
| Transmission Motor Power | 3 kW |
Why choose the CZ Purlin Making Machine? (From the perspective of the Automatic Decoiler System)
●Precise feeding, ensuring continuous production
TheAutomatic Decoiler Systemcan automatically adjust the feeding rate according to the running speed of theforming machine, achieving a "seamless connection". This significantly enhances the automation level of the entire line, reduces manual intervention, and lowers operational risks.
●Efficient loading, saving downtime
The hydraulic clamping structure can quickly fix or release thesteel coil. Combined with the automatic centering function, theloading processonly takes a few minutes, significantly improving equipment utilization.
●High adaptability, compatible with various materials
It can handlegalvanized steel coilsorhot-rolled stripsof different thicknesses and widths, meeting the production needs of various specifications such asC-typeandZ-type purlins.
●Stable tension, improving product quality
The closed-loop control system maintains constant tension, avoiding defects such as waves and distortions in the material during transportation, ensuring subsequentforming accuracy.
