C & Z Purline Machine

CZ Purlin Roll Forming Machine with servo motor power and transmission

The description for servo motorCompared with ordinary motors, servo motors are mainly used for automatic positioning. Speed control is generally realized by a frequency converter, and a servo motor is used for speed control. It is generally used for fast acceleration or deceleration or precise speed control, because compared to the frequency converter, the servo motor can reach several thousand revolutions within a few millimeters. Since the servos are closed loop, the speed is very stable. Torque control mainly controls the output torque of the servo motor, also because of the fast response of the servo motor. With the above two types of control, the servo drive can be regarded as a frequen...

   Inquire


The description for servo motor

Compared with ordinary motors, servo motors are mainly used for automatic positioning. Speed control is generally realized by a frequency converter, and a servo motor is used for speed control. It is generally used for fast acceleration or deceleration or precise speed control, because compared to the frequency converter, the servo motor can reach several thousand revolutions within a few millimeters. Since the servos are closed loop, the speed is very stable. Torque control mainly controls the output torque of the servo motor, also because of the fast response of the servo motor. With the above two types of control, the servo drive can be regarded as a frequency converter, which is generally controlled by analog.

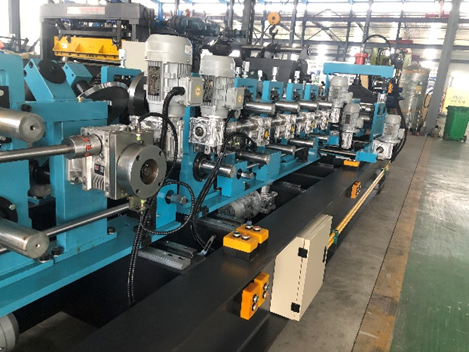

CZ Purlin Roll Forming Machine, C & Z Roll Forming Machine. For Standard Size C80-300MM, Z 100-300MM, Raw Material Thickness 1.5-3.0mm, With Three Hole Punch Device, Two Devices to perforate the bottom, a device for perforating the side.



Zhongtuo Machine Factory also manufactures C purlin roll forming machine, that is, the forming machine only makes C shape size from 3 inch to 12 inch for example. or CU forming machine or CG purlin machine, with punch hole or not, please tell us your requirements, we will design your required roll forming machines.



This CZ purlin forming machine includes 3 ton manual unwinder, forming system with optional punching device, post-cutting device, output table, PLC control system, output table



between C and Z, adjust some rollers of the top layer with the bottom rollers by turning the hand wheel 180 degrees.



for different sizes, move the whole line roll with lower press control, easy and time saving.



Advantage of our breakdown machines:

1. The small size less than 120mm of Z purlin made by special design, very straight and not twisted. Usually, the small size of Z tips made by another factory is not straight and will twist.

2. A 75mm solid shaft is used, and the H-shaped steel is used as the base frame, so that the machine can withstand long-term production without deformation of the machine, thus ensuring long-term production. term of quality failures;

3. The rollers are made of GCR15 material and processed by CNC machine tools to ensure the precision of the rollers, and hence the precision of the final purlin.

4. Our cut frames are relaxed to ensure that they are not deformed during the long-term production process, which makes the breakdown c smoothly.

5. Use Mitsubishi or Siemens operating system with stable performance, simple operation

6.Training speed can reach 10-15 meters per minute

7. The c z purlin with punching machine weighs about 9 tons.
