C & Z Purline Machine

Z purlin roll forming machine

Z purlin roll forming machineThis is Z-shaped steel forming machine. Z-shaped steel is a common cold-formed thin-walled steel with a thickness of 1.6-3.0mmand a cross-sectional height of 120-350mm. Cold-formed Z-shaped steel has the advantages of adjustable size and largecompressive strength.It is widely used in automobiles, railway vehicles, building doors and windows, transportation, shelves,electrical cabinets, highway guardrails, building steel structures, containers, steel formwork and scaffolding, solar energy Bracketshipbuilding, bridges, transmission towers, steel sheet piles, cable trays, agricultural machinery, furniture, storage, guide rails,keel steel, vegetable greenhouses, pipe...

   Inquire


Z purlin roll forming machine

This is Z-shaped steel forming machine. Z-shaped steel is a common cold-formed thin-walled steel with a thickness of 1.6-3.0mmand a cross-sectional height of 120-350mm. Cold-formed Z-shaped steel has the advantages of adjustable size and large

compressive strength.It is widely used in automobiles, railway vehicles, building doors and windows, transportation, shelves,electrical cabinets, highway guardrails, building steel structures, containers, steel formwork and scaffolding, solar energy Bracketshipbuilding, bridges, transmission towers, steel sheet piles, cable trays, agricultural machinery, furniture, storage, guide rails,keel steel, vegetable greenhouses, pipeline supports, municipal construction and other fields.

Features and Advantages of Z Purlin Roll Forming Machine

1. Fully automatic continuous Z profile purlin roll forming machine for both heavy and light-duty use.

2. Adopts changing spacers to make multi sizes profiles sections.

3.Inline flexible punching system integrated

4.Pre-cutting and Post cutting is optional.lf we need to produce many sizes, we can adopt pre-cutting to save cost and much time on changing blades during change sizes;lf profile sizes are not so many, post cutting can improve profile quality greatly.

5.Forming speed: 12-15 m/min

6.Certified with Multi-Patents; CE Certified,EUROPEAN quality standard

7.Most of the hot & popular profiles models, we have ready machines in stock for prompt delivery.

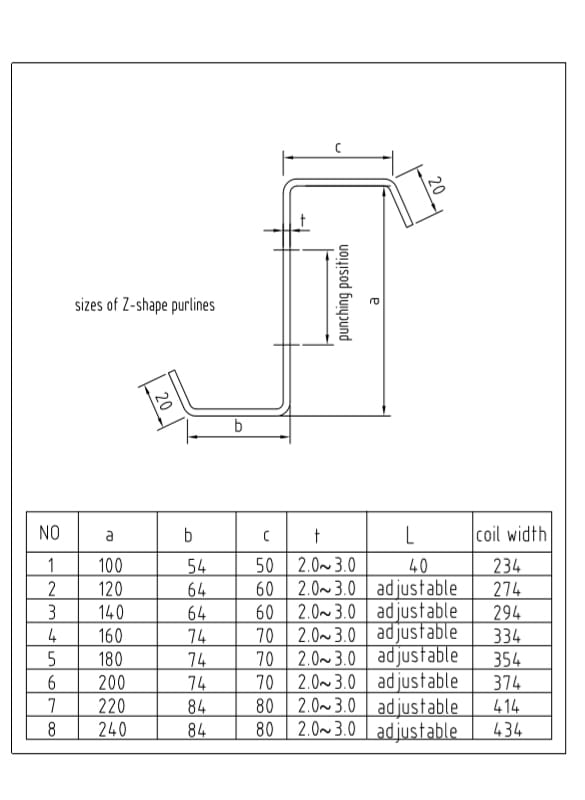

Popular Z Profile Drawings

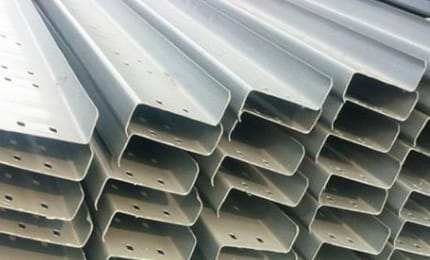

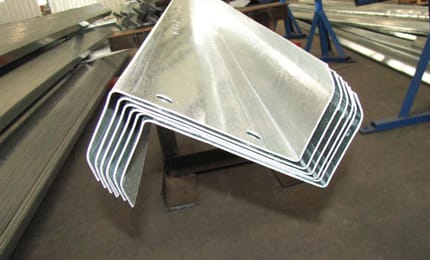

Finished product

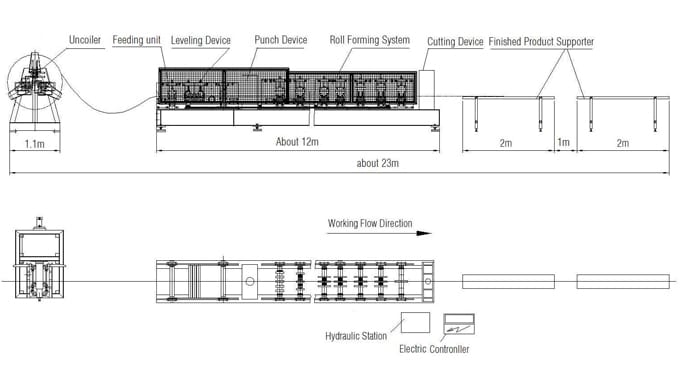

Working Flow

Pre-cutting flow:

Decoiler(passivelauto) = Feeding and Guiding Table →leveling system → hole punching system (as profile requests)→ pre-cutting to length →Roll Forming System  Output Manual SupporterIAuto Stacker(optional)

Post-cutting flow:

Decoiler (passivelauto) -Feeding and Guiding Table →leveling system → hole punching system (as profile requests)→RollForming System → Post-Cutting to length(Hydraulic)→Output Manual SupporterIAuto Stacker(optional)

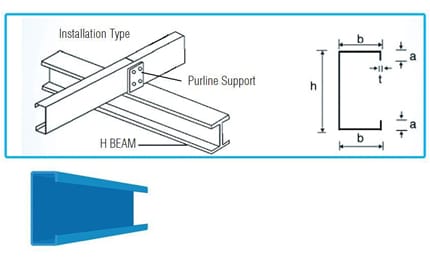

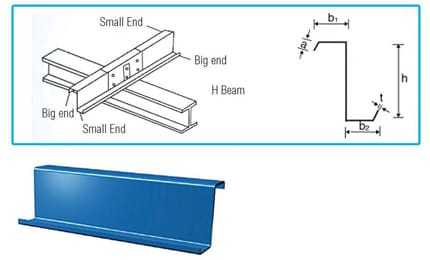

lnstallation Type of Panel Structure Purlin Roll Forming Machine

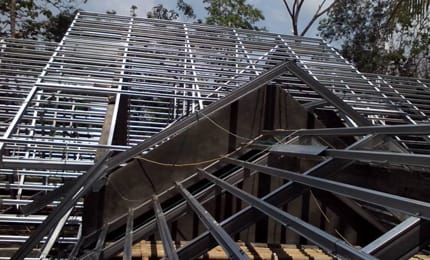

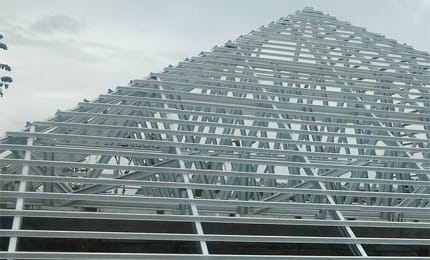

Panel Structure Purlin Roll Forming Machine Application

As the features of green, solid, economical, durable, fast & easy to install and good looking, steel purline and other steel buildingmaterials are used more and more widely.

lt suits for various Light Steel structure construction, civil-construction and mansions building.

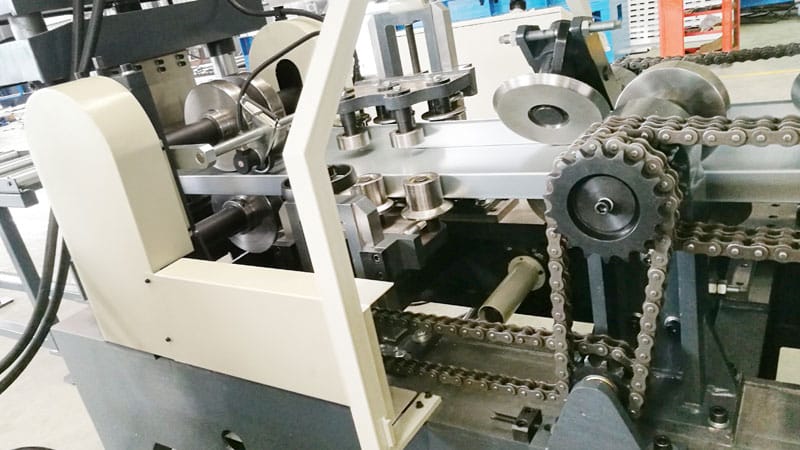

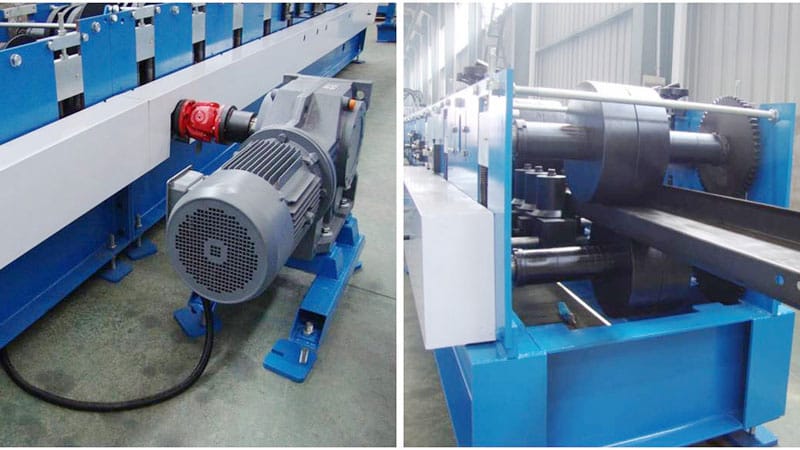

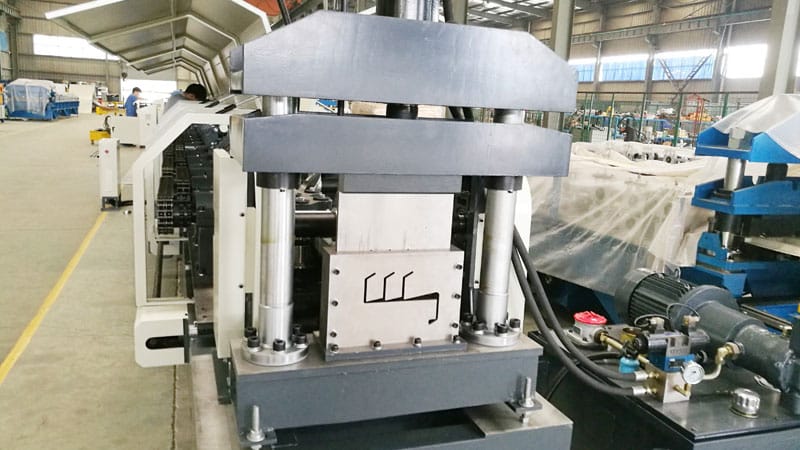

More machine pictures
