Full AUTO Change C Purlin Roll Forming Machine

The full auto change C purlin roll forming machine is designed for  making the C purlin production in batch fully automatically.

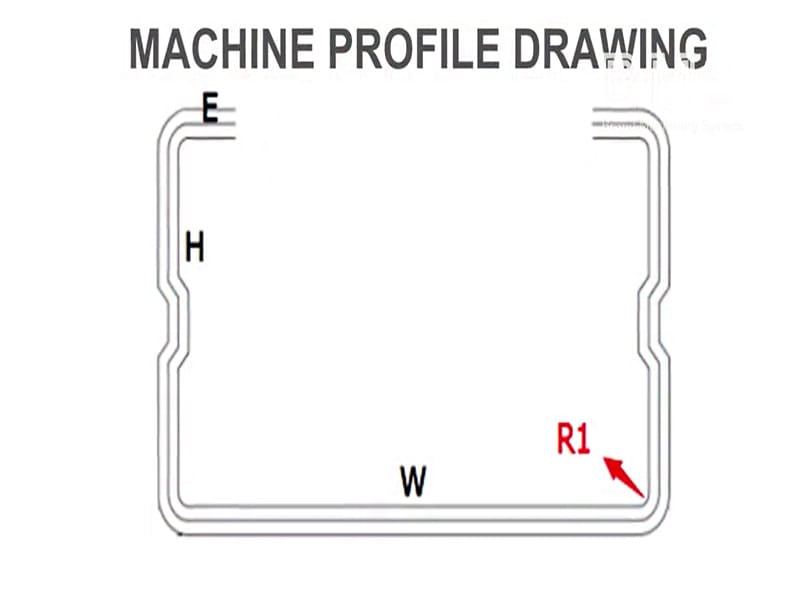

The C purlin drawing profile :

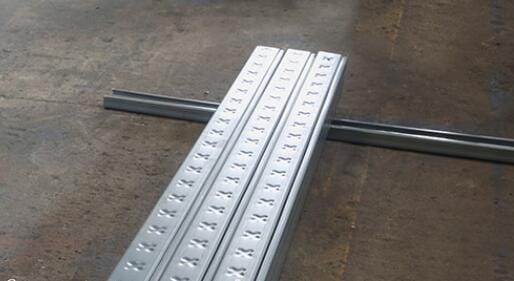

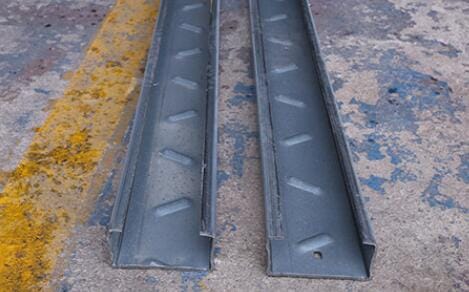

Finished product show

The work flow of the Full AUTO Change C Purlin Roll Forming Machine

Decoiler→Feeding And Leveling Device→Hydrualic Punching& Pre-Cutting Device→Rolling Forming System→Hydraulic Post Cutting→Exit Rack

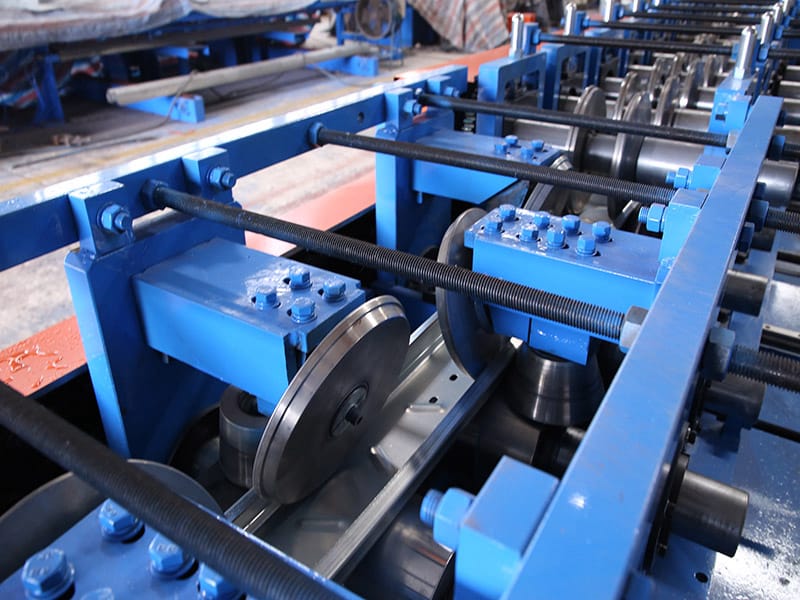

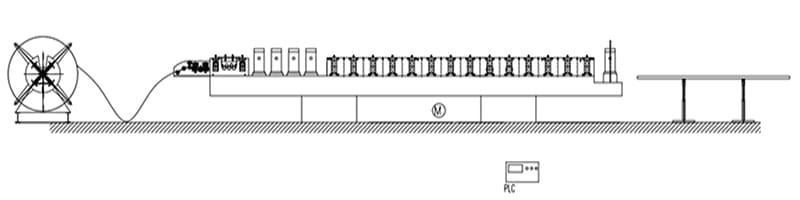

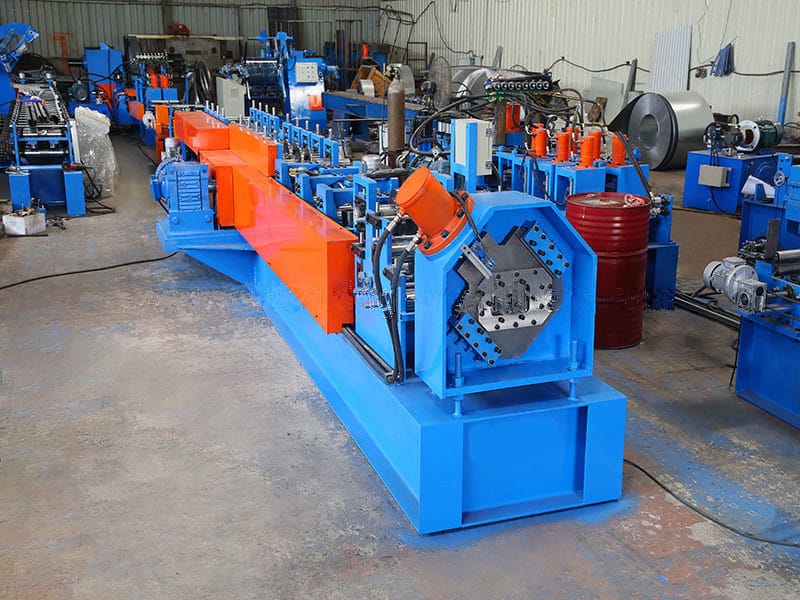

Based on the customer requirements and our experience, we design the Full AUTO Change C Purlin Roll Forming Machine like following picture:


Full AUTO Change C Purlin Roll Forming Machine is composed by the following elements:

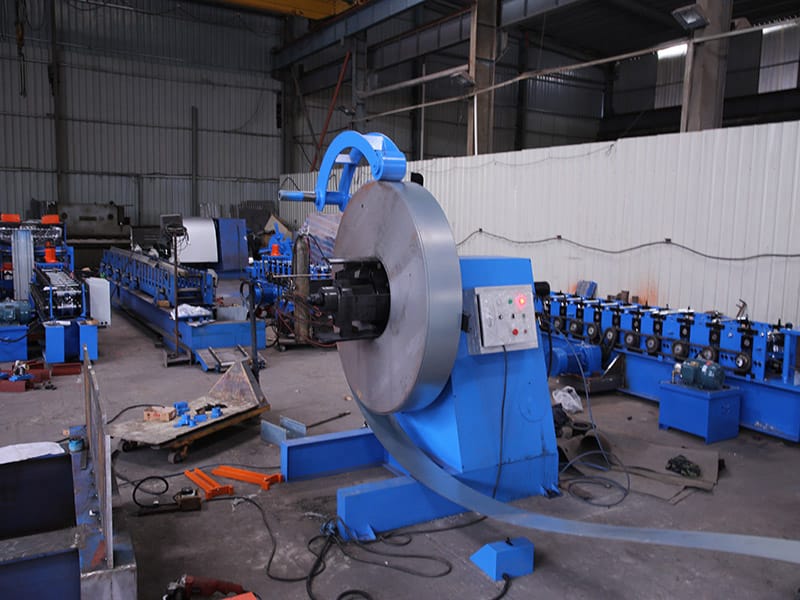

1)5 Ton Hydraulic Decoiler: one set

Hydraulic Control Steel Coil Inner Bore Shrinkage And Stop

Max.Feeding Width:600mm

Coil ID Range:508+30mm,Outside Diameter:1600mm

Max Capacity:5 ton,Motor:3KW,Frequency Speed Control

Oil Pump Motor:2.2KW,With Press Arm

Add Automatic Feeding Power And Self-Stop Device

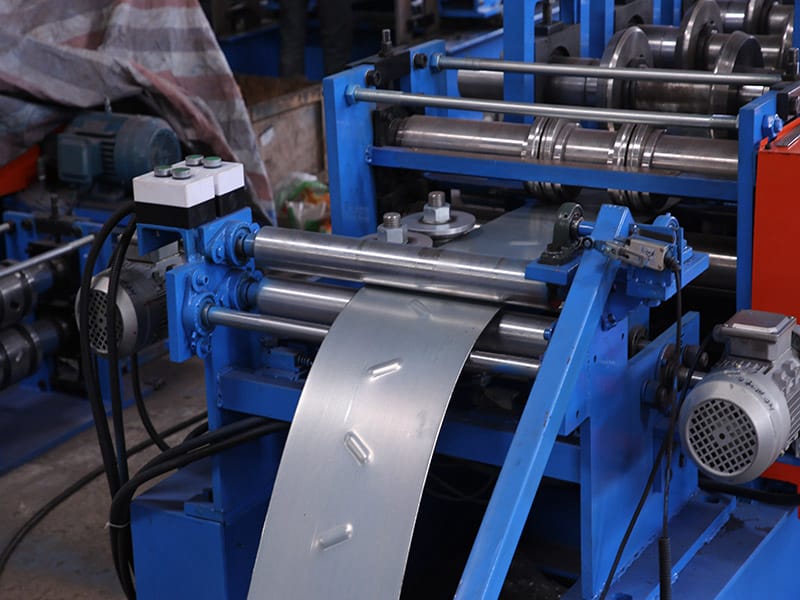

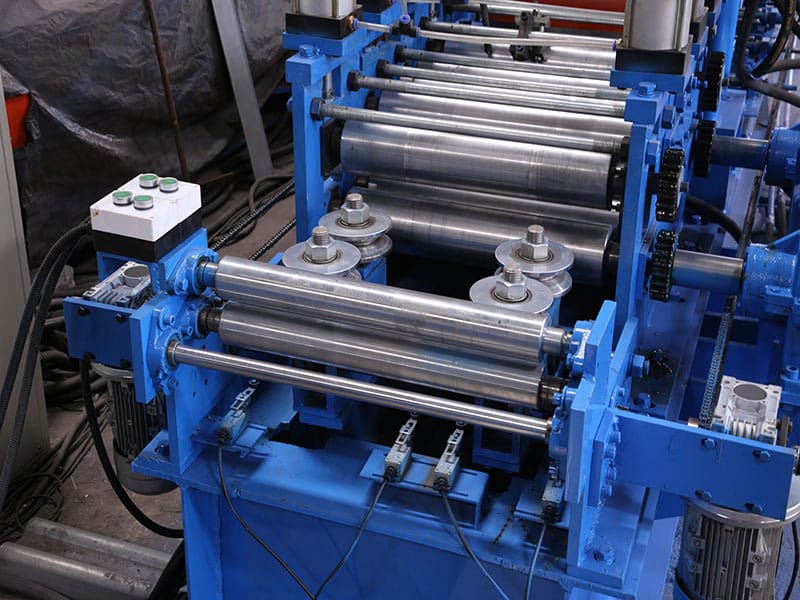

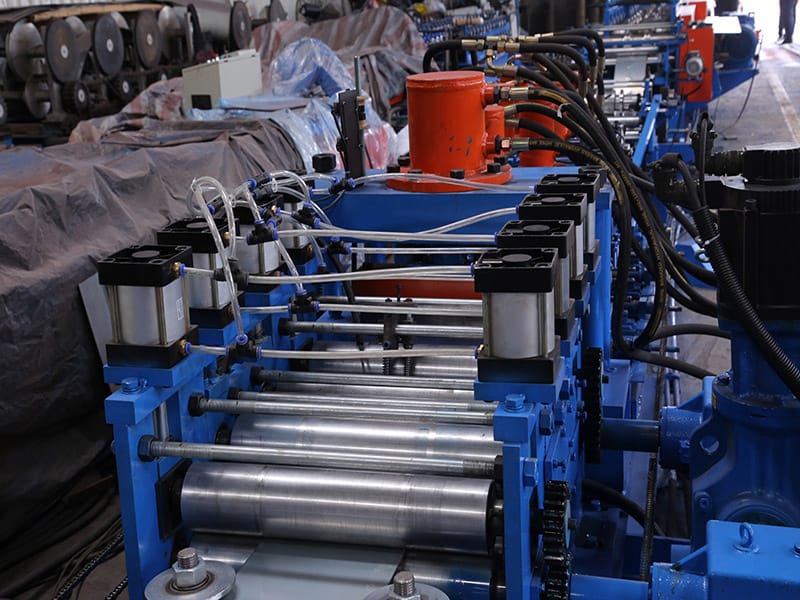

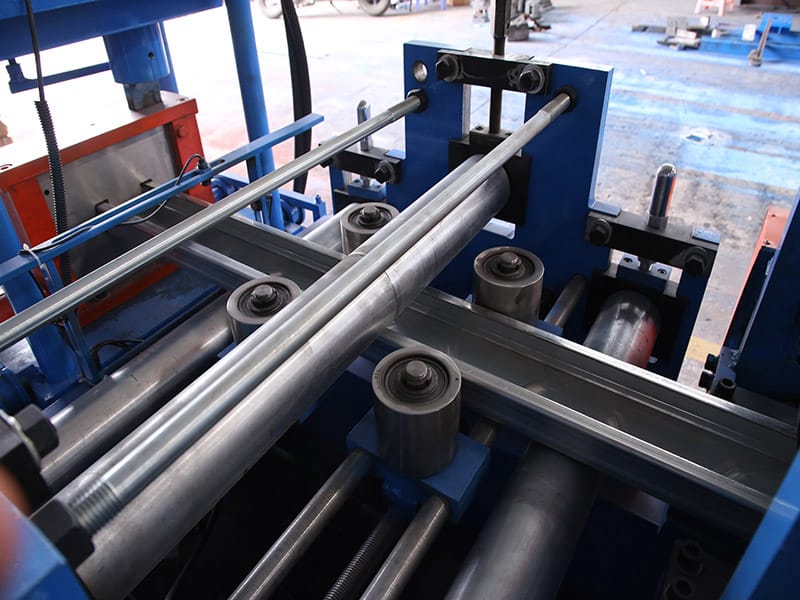

2) Feeding And Leveling Device

Up Three Down Four Totally Seven Shafts Leveling Device

With Feeding Material Guide,Body Frame Made From H450 Type Steel

Side Wall Thickness:Q235 t30mm

Shafts Manufactured From GCr15 Steel(=EN31 Steel)

Heat Treatment,HRC 58-62.Diameter=p105mm

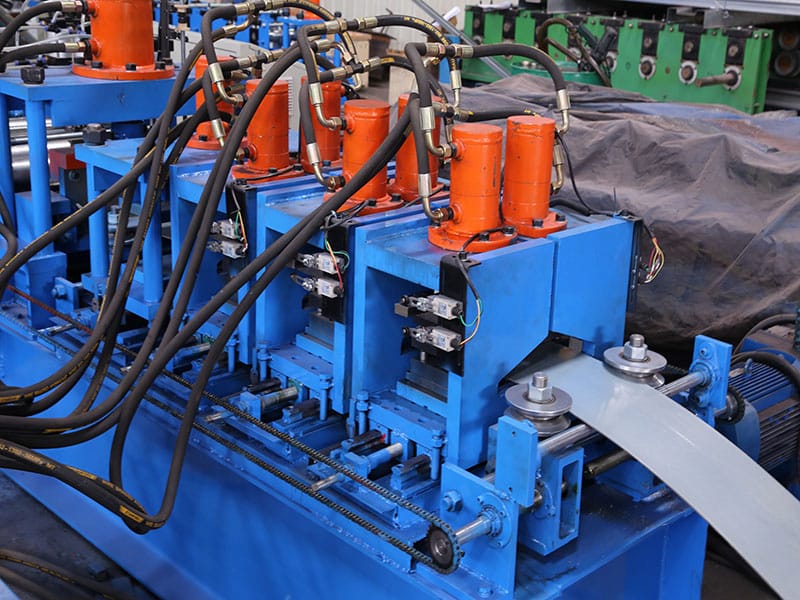

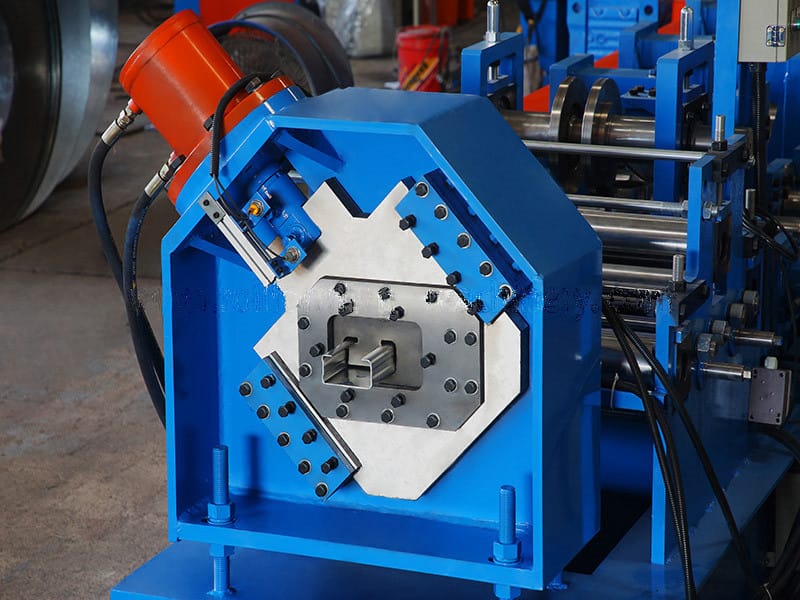

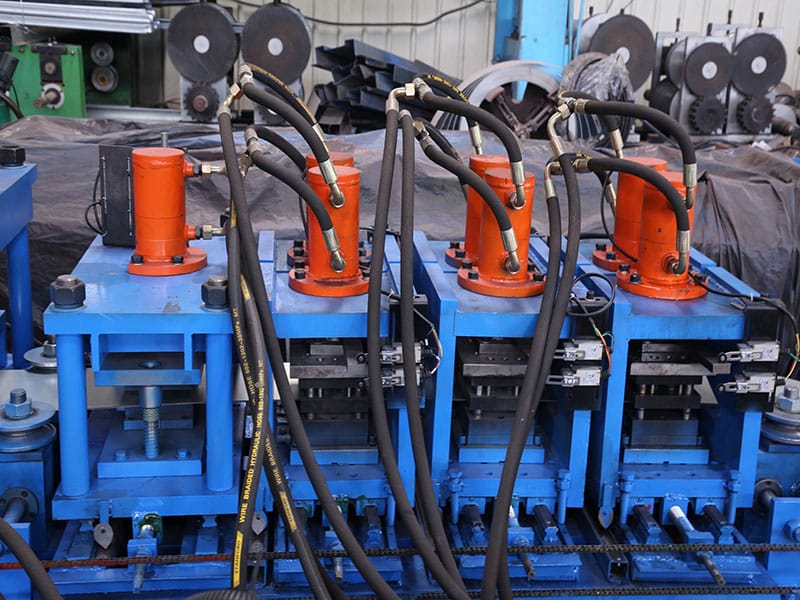

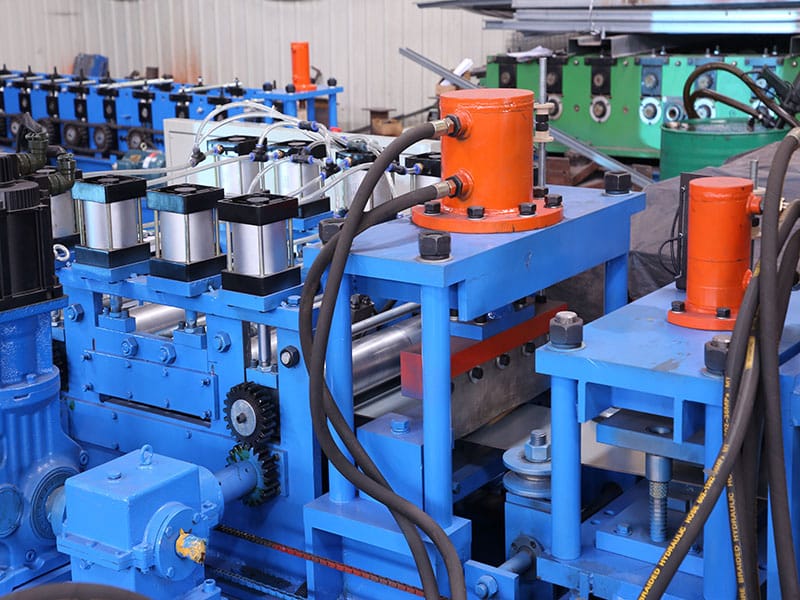

3)Hydraulic Pre-Cutting & Punching Device

Pre-Punching And Pre-Cutting,Use The Same Hydraulic System

Hydraulic Motor:22KW,Hydraulic Pressure Range:0-16Mpa

Punching And Cutting Tool Material:Mold Steel Cr12MoV(=SKD11 steelWith One Million Times cutting Life),

Heat Treatment To HRC58-62 Degree4-cylinders Hole Punching System For Punching Both On Web And Flange

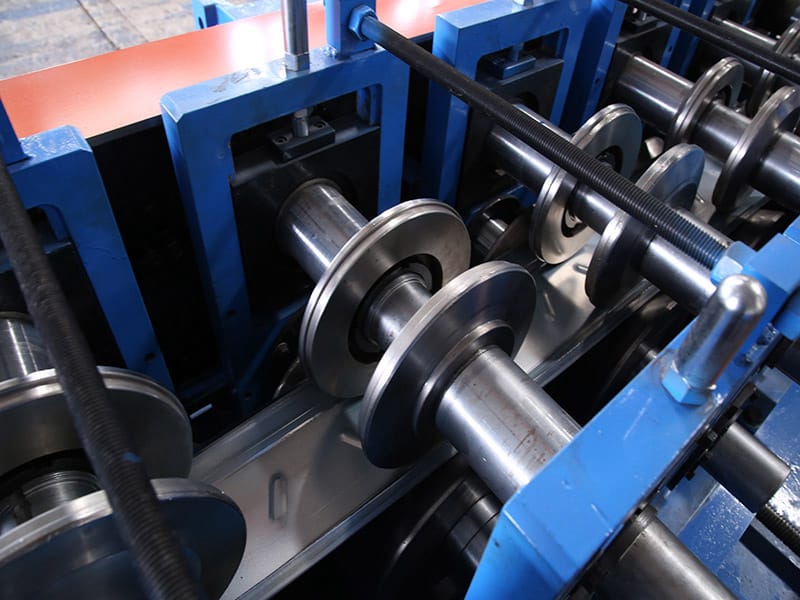

4)Main Machine

Body Frame Made From H450 Type Steel By WeldingSide Wall Thickness:Q235 t30mm

Rollers Manufactured From Cr12 Steel,Heat Treatment,HRC58-62

Shafts Diameter=Φ95,Precision Machined

GearlSprocket Driving,About 22-step To Form

Main Motor(Polaroid brand)=30KW, Frequency Speed Control

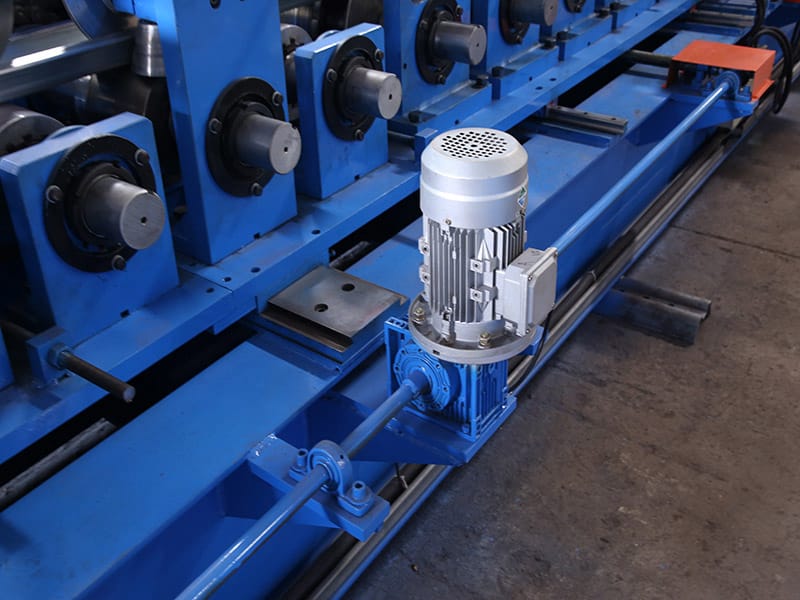

Use Two Electric Motors To AUTO Adjust The Material Feeding Width

Use Two Electric Motors To AUTO Change Size

Arch Structure

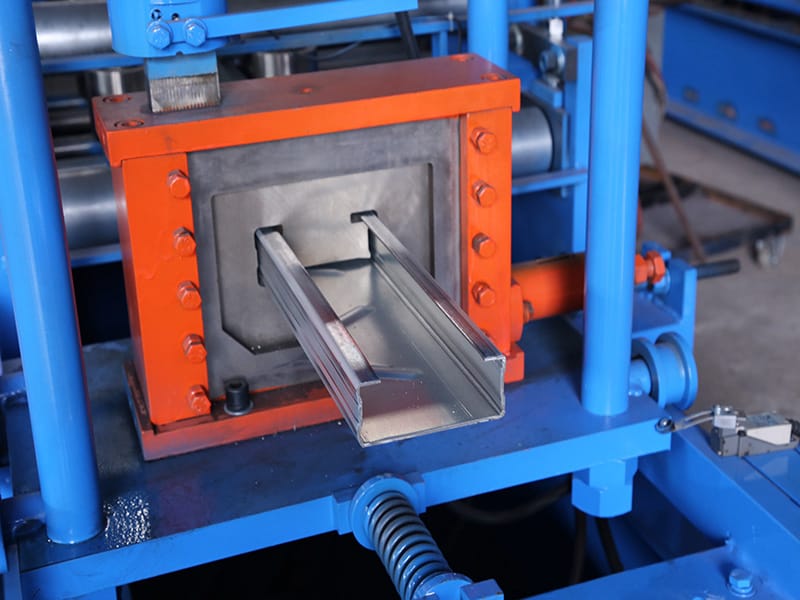

5)Post Hydraulic Cutting Device

Post To Cut,Stop To Cutting,Two Pieces Type Of Cutting Blade DesignHydraulic Motor:22KW,Cutting Pressure:0-16Mpa

Cutting Tool Material:Cr12MoV(= SKD11 Steel)

With At Least One Million Times Of Cutting Life),Heat Treatment HRC58-62
