Top Hat Channel / Furring Channel Roof Panel Roll Forming Machine
Main specification
1. Material: GI, Carbon steel
2. Material thickness: 1.5-3.0mm
3. Main power: 15KW
4. Machine diameter: about 11500x1500x1300mm ( LXWXH )
5. Weight of machine: about 10 Ton
6. Main Technical Specification:
7. Decoiler: Manual or hydraulic decoiler ( customer can choose )
8. Weight capacity of decoiler: 5 Ton
9. Forming station: 18
10. Principle axis: 75mm diameter
11. Forming speed: 0-15m/min
12. Drive type: 1.5' chain transmission
13. Roller material: GCr15 steel, quenched and heated process
14. Main power: 15KW
15. Hydraulic power: 7.5KW
16. Electrical Control: PLC Frequency Control System with touch screen
17. PLC: PANASONIC Brand
18. Encoder: OMRON Brand
19. Transducer: PANASONIC Brand
Main components
1. Decoiler ----------------------------------------------- 1 Unit
2. Feeding & Leveling -------------------------------- 1 Unit
3. Main roll forming machine ------------------------ 1 Unit
4. Hydraulic cutting device --------------------------- 1 Unit
5. Hydraulic Station ------------------------------------ 1 Unit
6. PLC computer control ------------------------------ 1 Unit
7. Output table ------------------------------------------- 1 Unit
working flow
Decoiler --- Fedding & Leveling --- Roll Forming --- Cut-to-length --- Run out table
Application
Metal angle, steel angle, angle steel, l section, wall angle, l shape, l profile
Competitive Advantages
Best Design Oriented for Your Special Requirements
High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

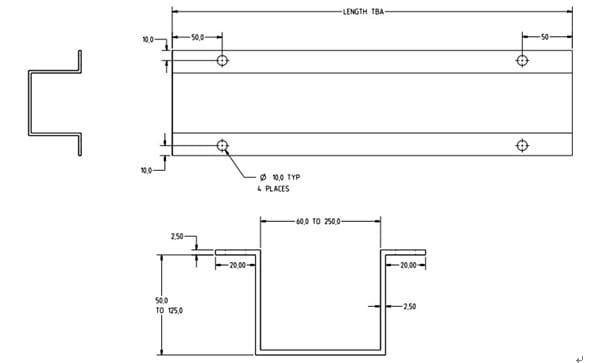

Drawing profile
Reference pictures
