FURRING CHANNEL / HAT CHANNEL ROLLING MACHINE
FURRING CHANNEL / HAT CHANNEL ROLLING MACHINE is designed to make the furring channel in batch fully autoamtically. Hat channel is the bearing channel in the ceiling building and drywall building.
Furring channel is a hat-shaped corrosion-resistant framing component used to furr out masonry walls and ceiling assemblies. In concrete wall applications, furring channel is installed vertically to the wall surface using concrete nails or power-driven fasteners. Gypsum panels are then screw-attached to the furring channels.
Based on the fully understanding of furring channel, and the hat channel understanding, we design the machine like the following.
|
Name |
Parameter |
Pictures |
||
|
Decoiler |
Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system Loading capacity: 1.5T Uncoiling width: 300mm Inner diameter: 450-550mm |
|
||
|
Feeding and leveling |
This part will level coil to make sure it is neat clean and straight. Meanwhile the roller will punch dots at both side of the C channel. |
|
||
|

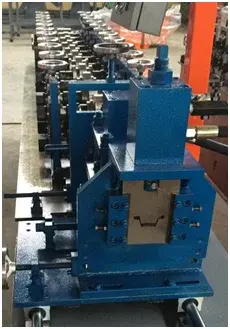

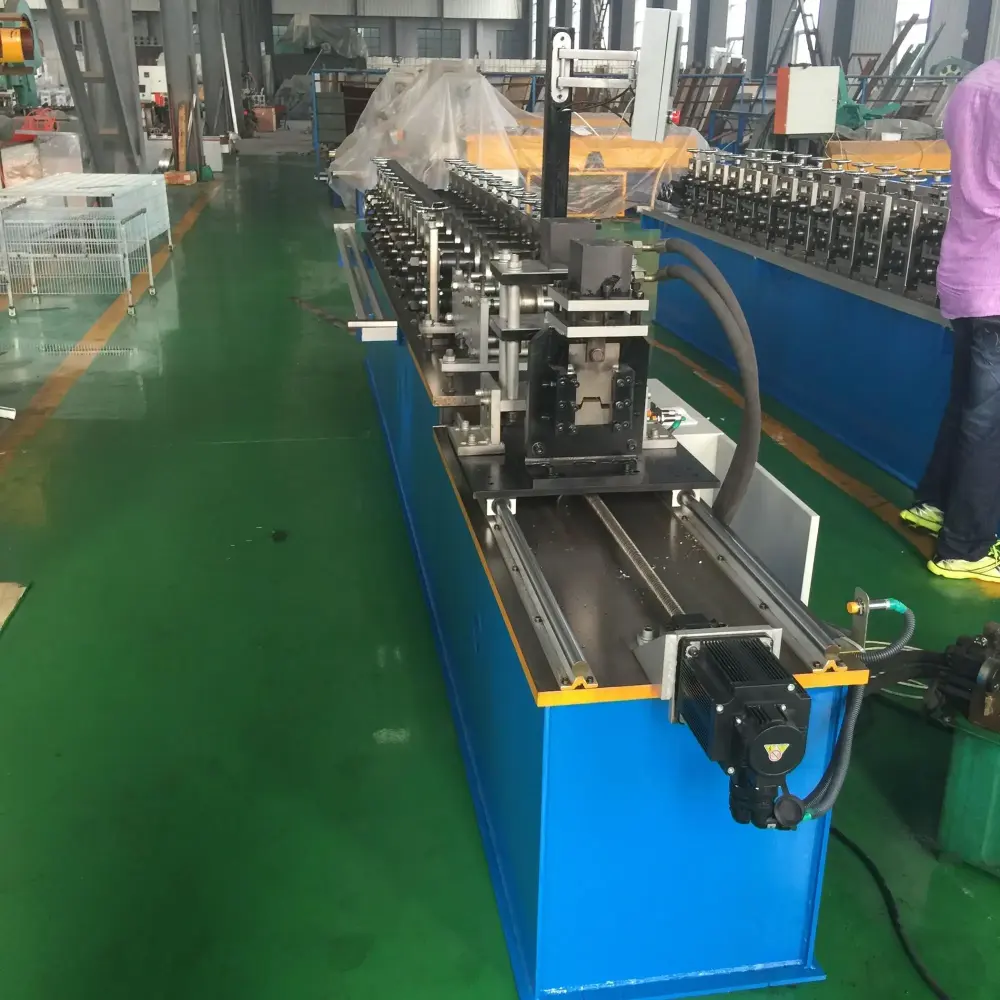

Roll forming machine
|
Size: 3800-800-1400 Weight t: 2.6 tons Voltage:380V/50HZ3Phase(as customer’s request) Roller fixer : Guide column Frame : middle plate welded Memorial arch frame type Frame thickness:25mm Drive mode: gear Material of rollers: GCr12MoV Material of shafts: 45# steel with tempering Diameter of shafts: φ40mm Number of rollers : 10rollers Main power: 4kw Cycloidal planetary gear speed reducer) |
|
||
|

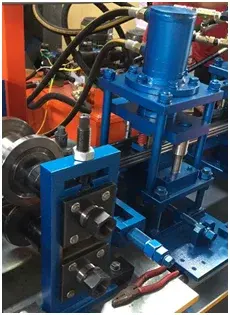

Shearing machine |
Together with punching words, cutting will be done together. Material of blades: Gcr12 quenched Power supply : hydraulic power Frame : Pillar style with rack & pinion system Stroke switch : non-contact photoelectric switch |
|
FURRING CHANNEL / HAT CHANNEL ROLLING MACHINE:
Design options:we have serval speed for your reference:
25m/min
45m/mim
80m/min.
For this furring channel making machine, if you need to know more information, please contact us at any time.
Here is the machine working video for your reference:
