METAL ROLL FORMING MACHINE
Zhongtuo roll forming Systems is a "one-stop shop" for all your roll forming needs,enabling our customers to save time and money when buying roll forming machines,to help customers grow.
false ceiling, t bar suspended ceiling grid
falseceiling,tbarsuspendedceilinggridfalseceiling,tbarsuspendedceilinggrid-Rawmaterials:ZINCcoatingfrom80to275grampersquaremeter,also...
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content
false ceiling, t bar suspended ceiling grid
- Raw materials : ZINC coating from 80 to 275 gram per square meter , also can use the stainless steel mirror or aluminum mirror .
- Thickness : Form 0.25mm to 0.40mm
- Dimension :
Length : Main Tee up to 3.75 meters ,Cross Tee up to 1.22 meters ,
Width : From 14mm to 24mm and Hight from 24mm to 38mm .
We can produce any size to meet and install your ceiling .
- Colour : The surface is white , but also can be stainless steel mirror and aluminum mirror .

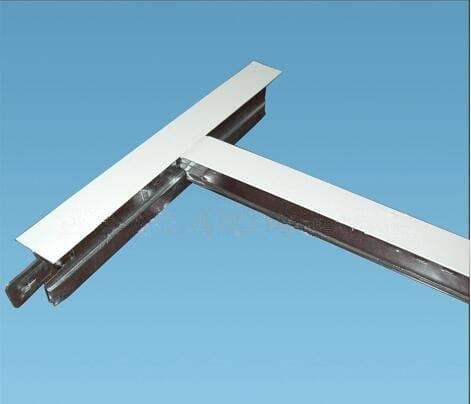

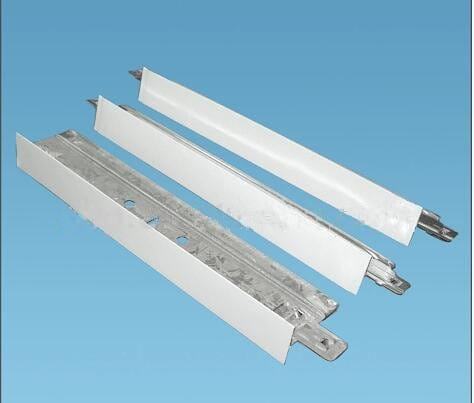

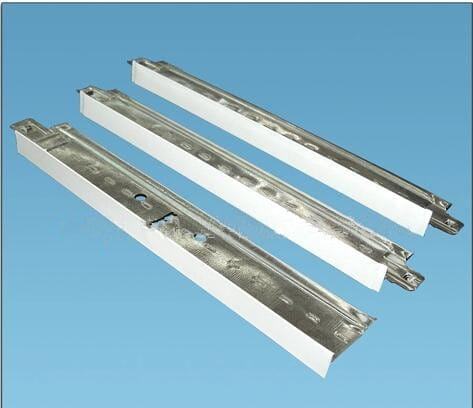

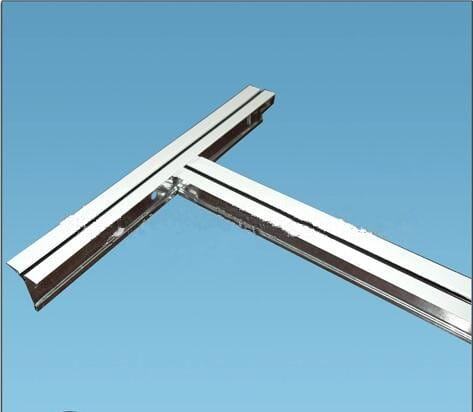

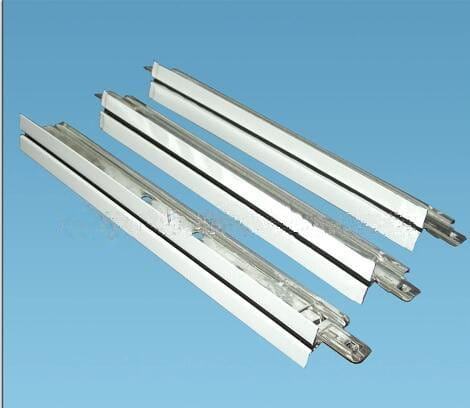

false ceiling, t bar suspended ceiling grid Pictures

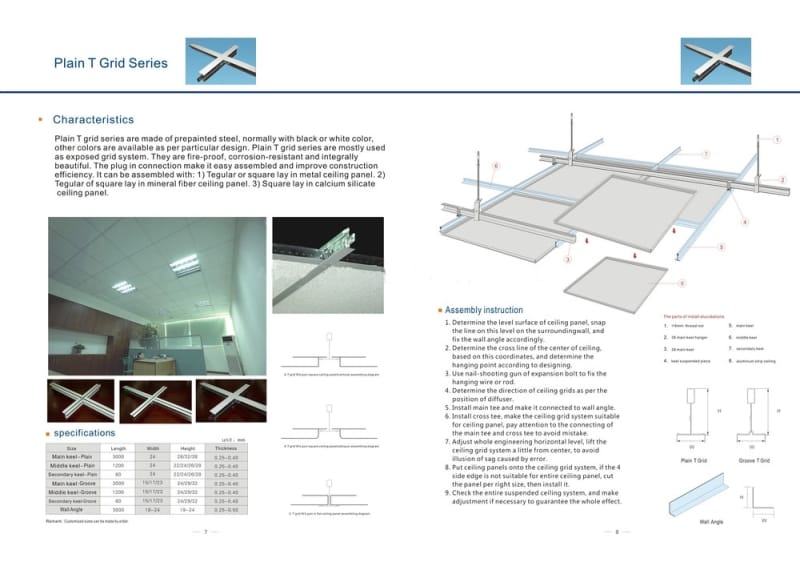

false ceiling, t bar suspended ceiling grid Flat Tee Grid Specifications
|
Item |
Description |
Width (mm) |
Hight (mm) |
Thickness (mm) |
Length |
|
1 |
T24 MAIN TEE |
24 |
38 |
0.25~0.40mm |
up to 3.75m |
|
32 |
|||||
|
28 |
|||||
|
26 |
|||||
|
24 |
|||||
|
T24 CROSS TEE |
24 |
38 |
0.25~0.40mm |
up to 1.22m |
|
|
32 |
|||||
|
28 |
|||||
|
26 |
|||||
|
24 |
|||||
|
2 |
T15 MAIN TEE |
15 |
38 |
0.25~0.40mm |
up to 3.75m |
|
32 |
|||||
|
28 |
|||||
|
26 |
|||||
|
T15 CROSS TEE |
15 |
38 |
0.25~0.40mm |
up to 1.22m |
|
|
32 |
|||||
|
28 |
|||||
|
26 |
|||||
|
3 |
T14 MAIN TEE |
14 |
32 |
0.25~0.40mm |
up to 3.75m |
|
28 |
|||||
|
24 |
|||||
|
T14 CROSS TEE |
14 |
32 |
0.25~0.40mm |
up to 1.22m |
|
|
28 |
|||||
|
24 |

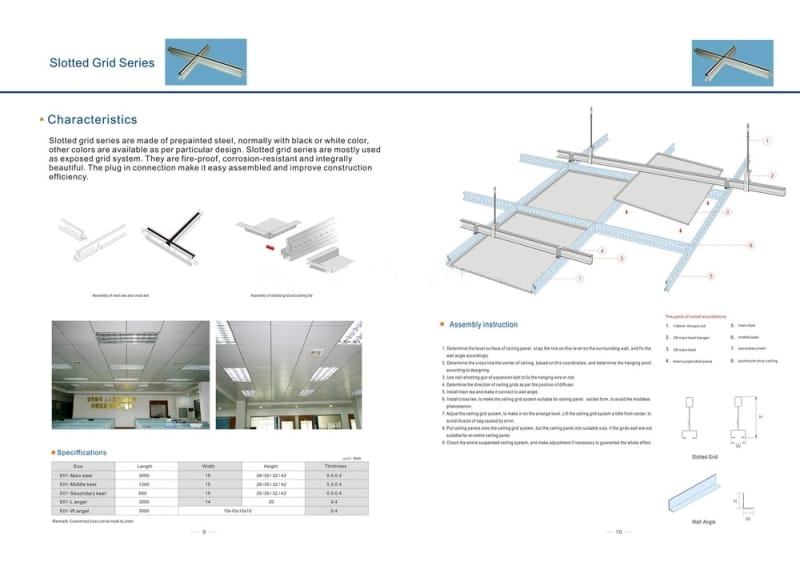

false ceiling, t bar suspended ceiling grid slotted Tee Grid Specifications
|
Item |
Description |
Width (mm) |
Hight (mm) |
Thickness (mm) |
Length |
|
1 |
U15 MAIN TEE WITH 8mm GAP |
15 |
42 |
0.25~0.40 |
up to 3.75m |
|
32 |
|||||
|
26 |
|||||
|
U15 MAIN TEE WITH 8mm GAP |
15 |
42 |
0.25~0.40 |
up to 1.22m |
|
|
32 |
|||||
|
26 |
|||||
|
2 |
U15 MAIN TEE WITH 5mm GAP |
15 |
30 |
0.25~0.40 |
up to 3.75m |
|
25 |
|||||
|
U15 MAIN TEE WITH 5mm GAP |
15 |
30 |
0.25~0.40 |
up to 1.22m |
|
|
25 |
