Have you ever searched for "what is a unistrut channel roll forming machine"? Maybe you are evaluating new equipment, or maybe you just want to understand what it actually does. Either way, we understand you need a clear and straightforward explanation.

Many customers who search this question are really thinking: what problem does this thing actually solve? Is it worth the investment? Will it be complicated to operate? We understand these concerns, so we will introduce this machine in the simplest way possible.

In short, this equipment takes a steel coil in one end and delivers finished channel out the other. It connects uncoiling, roll forming, punching, and shearing into one continuous production line. You don't need to buy pre made profiles and process them again. This eliminates intermediate steps and waiting time.

What Is Unistrut?

Unistrut is a cold formed metal channel with a U shaped cross section and inward turned edges.Its surface typically has regularly spaced punched holes or slots. These holes let installers adjust positions on site without drilling.

The material is usually pre galvanized steel sheet, which offers good corrosion resistance. Construction and electrical industries use this profile widely. It is a standardized structural support component.

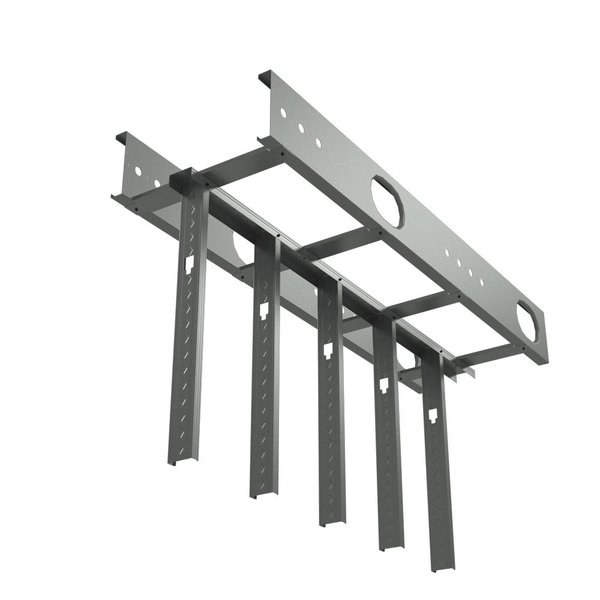

Application Areas

Unistrut channels serve a wide range of applications, including:

• Electrical system supports (cable trays, power distribution lines)
• Mechanical system supports (pipes, ducts, equipment brackets)
• HVAC system installation
• Solar photovoltaic mounting brackets
• Seismic bracing and diagonal supports
• Suspended ceiling grids and overhead structures
• Warehouse shelving and general framing
• Light gauge steel building connections and fixings

Unistrut channels serve electrical, mechanical, solar, and many other industries. This equipment is designed to meet the production needs of these diverse applications.

Technical Specifications

Composition and Workflow

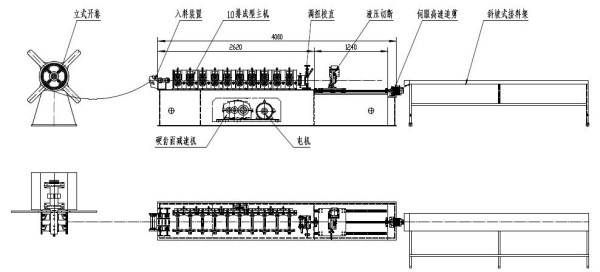

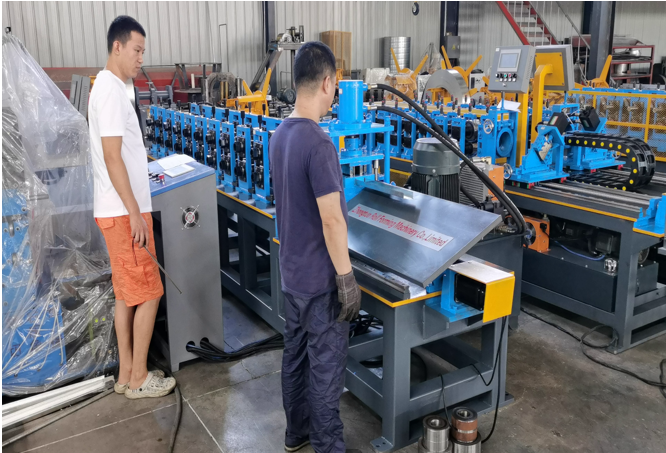

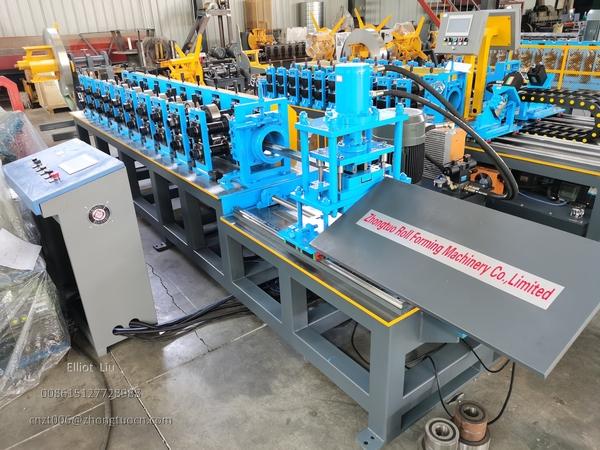

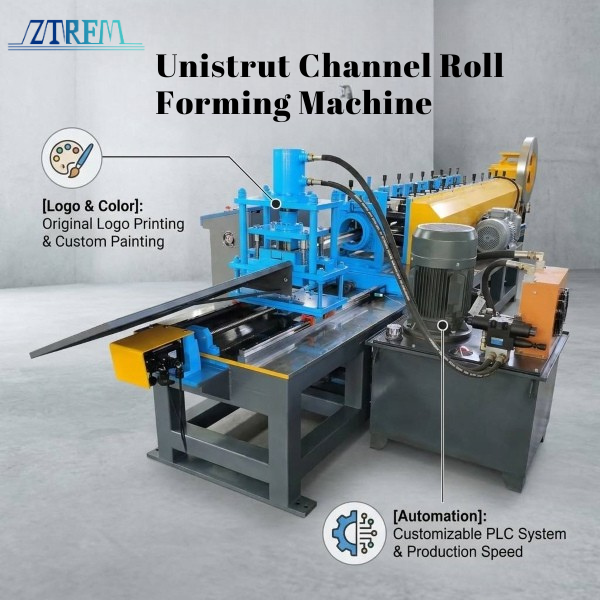

A complete unistrut channel roll forming machine consists of several modules.

Main components include: decoiler, entry guide table, main forming section, punching system, shearing system, and receiving table.

The workflow is as follows:

• The operator lifts the steel coil onto the decoiler and adjusts the expanding mechanism to secure the coil
• The strip enters the main machine after centering through the entry guide table
• 12 roller stations gradually cold form the flat strip into a unistrut channel section
• The PLC controls the punching system to complete hole positioning during continuous motion
• When the set length is reached, the shearing system automatically cuts to length

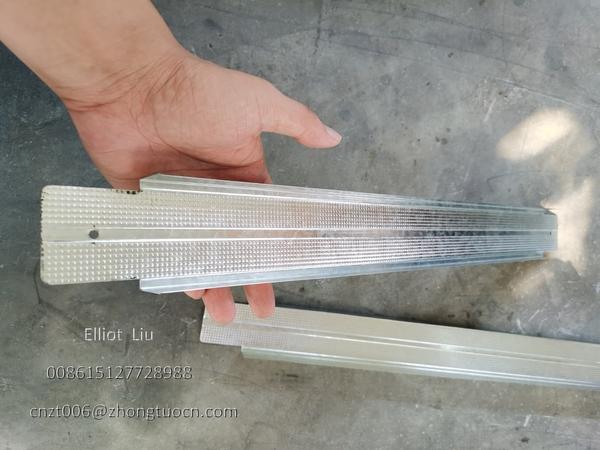

• Finished channels come out from the receiving table, and operators collect and visually inspect each piece

Key Features

Worried about unstable operation or hole position drift? The gear transmission system addresses this concern.

Roller Spacers for Width Adjustment

Precision spacers are installed between each roller station. Operators change the spacer combination to switch between different sizes. There is no need to remove roller shafts or re-align the entire stand.

Gear Transmission Ensures Accurate Hole Positioning

The machine uses a closed gearbox transmission instead of chain drive. Gear meshing creates rigid connections without the stretching problems found in chains. Each roller maintains precise angular correlation, so hole positions remain accurate.

GCr12 Bearing Steel Rollers

The rollers are made of GCr12 bearing steel with heat treatment and surface finishing. They offer good wear resistance and service life, suitable for continuous batch production.

Cr12 Quenched Blades

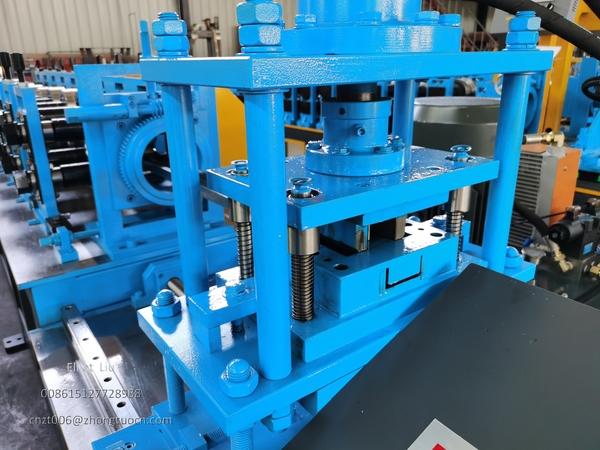

The shear blades are made of Cr12 die steel with full quenching treatment. They deliver clean cuts with minimal burrs, suitable for galvanized sheet materials.

Why Choose This Equipment

Is your factory struggling with labor shortages? New workers learn slowly and experienced workers often leave. Many manufacturers share this challenge. The control computer stores recipes for each profile. Operators select the required size on the screen and start production. No programming knowledge is needed.

Are you tired of long changeover times? The spacer adjustment design saves you this time.

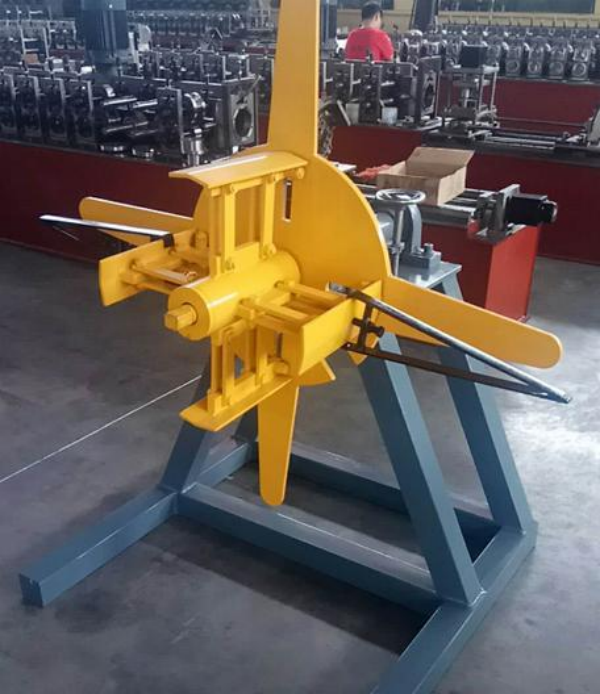

Worried about different coil inner diameters from various suppliers? The decoiler has an adjustable inner diameter range of 450mm to 550mm, fitting most standard coils on the market.

Have you experienced noise issues in your workshop? The portal frame provides good rigidity and reduces vibration during punching and shearing. Gear transmission runs quieter than chain drives.

Do you want a machine that runs steadily for years with fewer breakdowns? The main shafts are tempered to combine hardness and toughness. The GCr12 rollers offer good wear resistance. The whole machine is designed for long term reliability.

Selection Guide

When choosing a unistrut channel roll forming machine, you should confirm the following points:

• Raw material: whether your galvanized coil thickness is within 0.35-0.45mm and width does not exceed 300mm

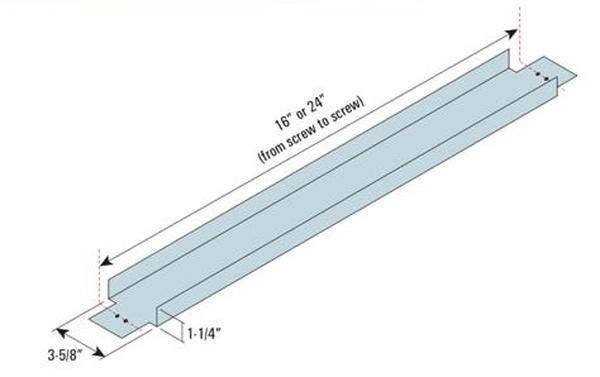

• Finished sizes: whether you need both 63.5mm and 92mm widths, and both 406mm and 610mm lengths
• Power supply: whether your facility has 480V/60Hz/3 phase power available
• Floor space: whether you have approximately 12m × 2.0m × 1.5m of available space

Once these conditions are confirmed, the machine arrives ready for quick installation and production start.

Whatever concerns you had when you first searched "what is a unistrut channel roll forming machine" whether you were worried about return on investment or unsure if the equipment matches your working conditions we want to help you fully understand this equipment. If you have specific production needs or site conditions, feel free to reach out. We can provide customized configuration suggestions based on your actual situation.
