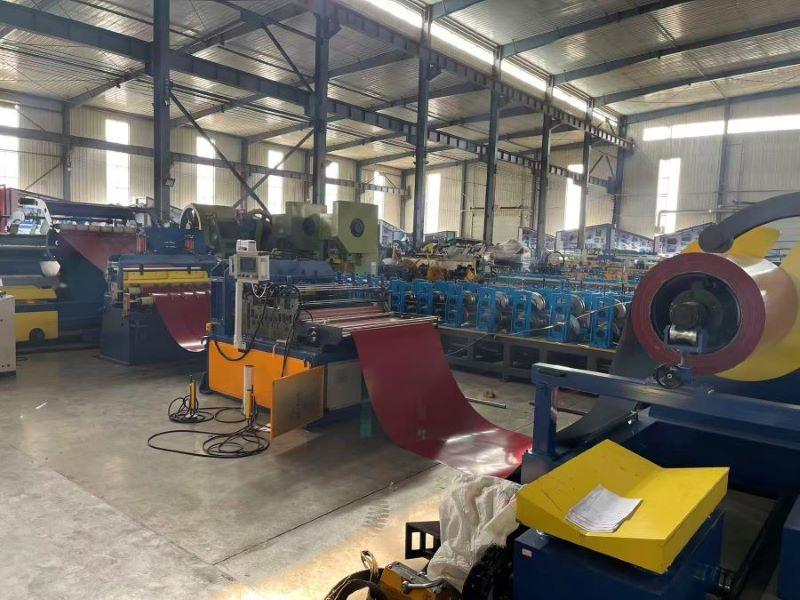

This Hydraulic Slitting Line is mainly used for longitudinal cutting and splitting of cold-rolled, galvanized, CRS and GI steel coil materials to prepare strips for subsequent processes. Its core functions include automatic feeding, uncoiling, leveling, longitudinal cutting, and winding, and it can efficiently handle steel coils with a thickness of 0.3 - 3.5mm and a width of 500 - 1600mm. The maximum number of splits can reach 9 (for a thickness of 3 - 3.5mm) or 25 (for a thickness of 0.3mm).

Core Function Highlights

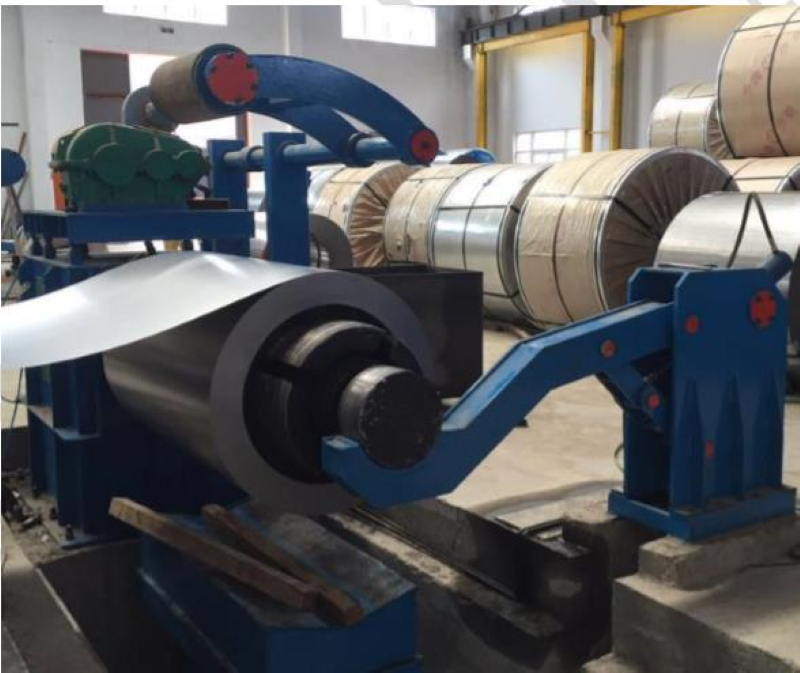

● Hydraulic Drive: The hydraulic system drives key components such as the uncoiling machine, shearing machine, and winding machine to ensure stable and reliable operation.

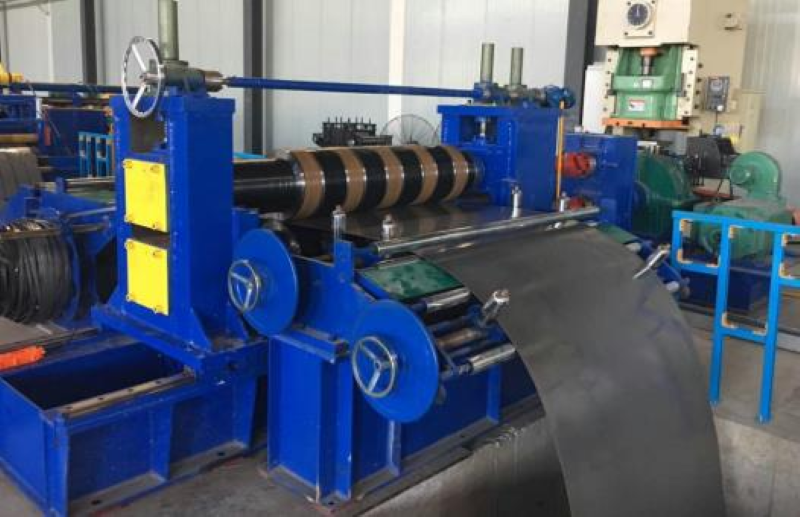

● Precise Splitting: The longitudinal cutting machine uses H13K material blades and a 40Cr knife shaft to ensure splitting accuracy within ±0.05mm.

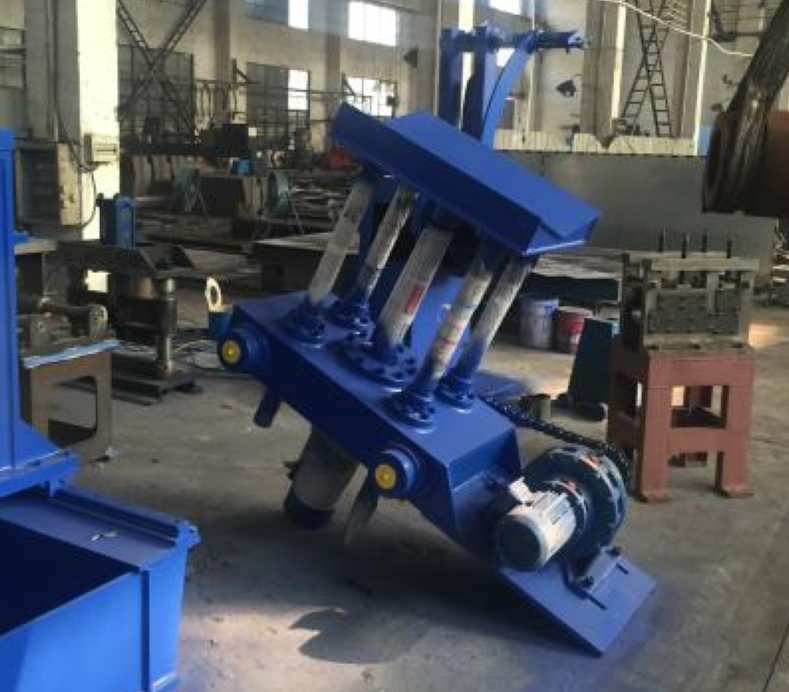

● Automatic Feeding: The hydraulic feeding trolley can move horizontally and rise and fall, facilitating the insertion of the inner hole of the steel coil into the uncoiling machine's expansion cylinder.

● Tension Control: The tension station uses a hydraulic expansion structure to ensure the tension and neatness of the steel strip during winding.

Technical Specifications

Why Choose Us

● Heavy-duty design: The equipment is entirely constructed with a steel plate welding structure, with a stable base that can withstand a maximum load of 15T.

● Precise control: The PLC variable frequency control system enables centralized control throughout the line, and the main operation console can adjust for high and low speeds.

● Efficient production: The daily output can reach 40T (8 hours), suitable for large-scale production needs.

● Easy maintenance: Key components such as blades and shafts are made of high-quality materials, which are wear-resistant and durable, resulting in low maintenance costs.
