Shutter Door Machine

Fully automatic roller shutter door roll forming machine

Zhongtuo cold roll forming machinery is engaged in manufacturing, supplying and exporting an extensive range of Rolling Shutter Making Machine since 1996. Our machines are designed and developed with time and date for making fashion and durable rolling shutter with the proper bandings and smooth curves to the metal sheets. Our machines can work for long hours consistently with any problem at low energy consuming. We offer these machines in different specifications and at economic rates in market.Component of Roller shutter door roll forming machine:Uncoiling----Sheet Guiding----Roll Forming----Pressing----Measuring Length & Shearing----Runout tableFeatures of Roller shutter door roll forming...

   Inquire


Zhongtuo cold roll forming machinery is engaged in manufacturing, supplying and exporting an extensive range of Rolling Shutter Making Machine since 1996. Our machines are designed and developed with time and date for making fashion and durable rolling shutter with the proper bandings and smooth curves to the metal sheets. Our machines can work for long hours consistently with any problem at low energy consuming. We offer these machines in different specifications and at economic rates in market.


Component of Roller shutter door roll forming machine:

Uncoiling----Sheet Guiding----Roll Forming----Pressing----Measuring Length & Shearing----Runout table

Features of Roller shutter door roll forming machine:

  1. Single head decoiler fully matched with whole machine, safety guard added at both sides. Inner expanding way, up to 12cm if you need.

  2. Coil feeder added and there is also leveling entry elements for making sure the coil material neat, straight and good.

  3. Welded frame and polished by both sides for long time using and stability when using. Even if you use it in long time, there is no rust produced.

  4. Servo flying cutting saw, the machine does not need to stop when cutting, so the working speed could be enhanced greatly.

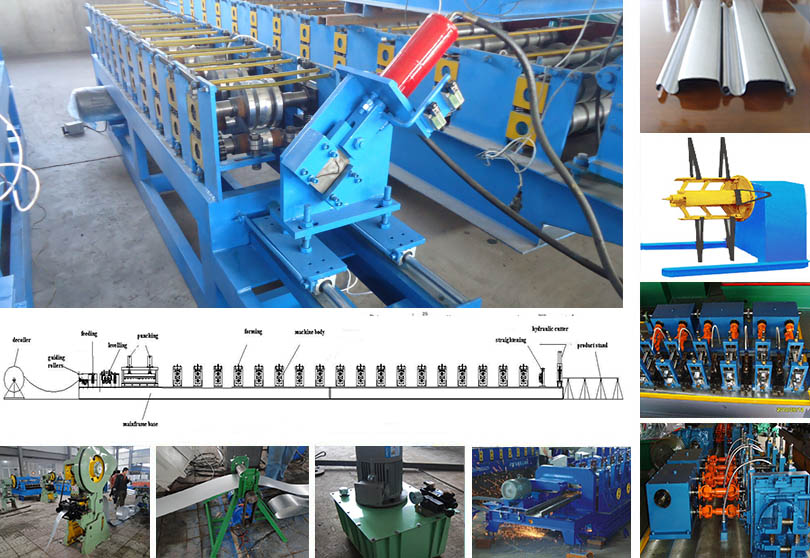

Roller shutter door roll forming machine

Basic parameters of Zhongtuo shutter door roll forming machine.

Fully automatic roller shutter door roll forming machine.
Tile TypePPGI/GI /Aluminum coil
Yield stressÂ230~300Mpa
Thickness0.6-0.8 mm
Material Width148mm
Quantity of stands12
Max. forming speed (m/min)20-30/min
Main motor power7.5kw
Hydraulic station motor power (KW)5.5kw
Voltage380V 3 phase 60Hz or buyer’s requirement
Controlling systemPLC
OperationTouch screen and button
Dimension ( L/W/H)5000mm*500mm*900mm
Container required40inch
Total weight (Kg)About8000kg
