 Rolling shutter door machine two profile by one machine

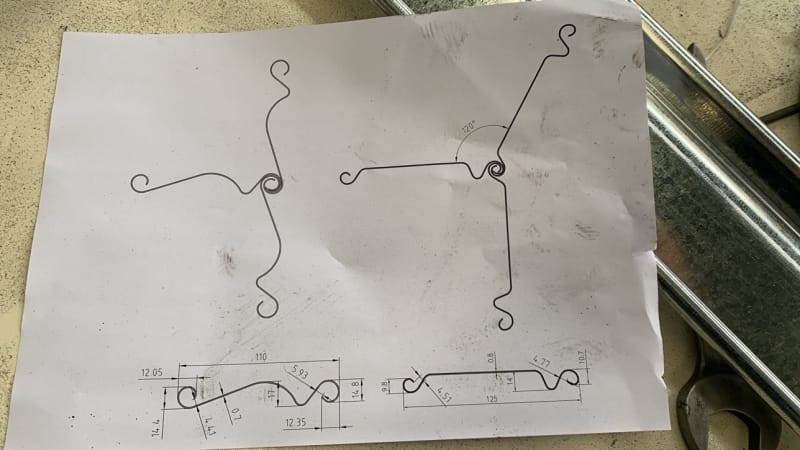

Rolling shutter door machine two profile by one machine is designed to make two profiles by one machine. Zhongtuo rolling shutter door machines have the following types: Perforated Roller Shutter Roll Forming Machine, window and shutter rolling machine, Shutter Patti Machine, Australian Rolling shutters Machine, Aluminum window sill roll forming machine and other types. No matter which types, we can try to design two profiles by one machine, if the production rate you require is not high. Here we will take a random drawing to show you, how double profile is made by one machine:

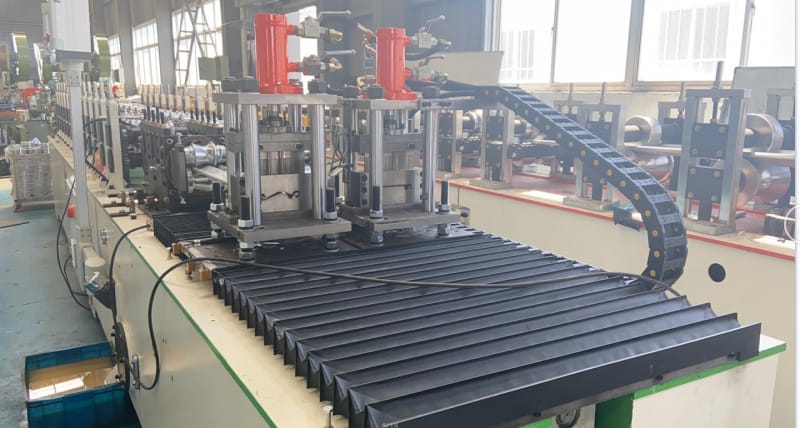

Rolling shutter door machine two profile by one machine:



Here are more parameters of the machine for your reference:

Packing list for shutter door roll forming machine

Part 1

1.5T decoiler

set

2

Manual

Part 2

Roll forming system

set

1

Gear Box transmission

Part 3

PLC control station

set

1


Part 4

Hydraulic system

set

1

YUKEN STANDARD

Part 5

Product collect table

set

1

Pneumatic /3m length

Rolling shaft

Shaft material: 45# steel with quenched treatment, precision machined

Shaft diameter: 50 mm

Roller

Roller material: Cr12 Mov with quenched treatment

Shaft diameter

60MM

Machine structure

Steel plate welded structure, arch frame thickness 35 mm

Size adjustment

Adjust the spacers manually

Rolling station

14 stations

Forming speed

0-30 m/min

Machine frame

Vertical arch frame structure

Machine body

steel plate welded with grinding

Bearing

Chinese famous brand Harbin

Work power

5.5 kw

Transmission

By chain

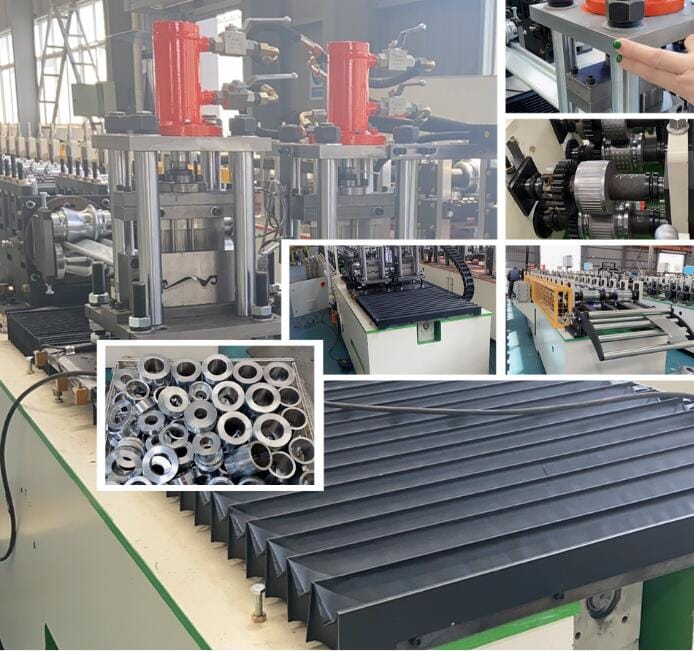

More details of Zhongtuo rolling shutter door machine two profiles in One:

1. All the rollers we use the GCR12 material, hardness is enough for long time to use. Meanwhile carefully processing to make sure the surface of the rollers are smoothly.

2. It allows to make many types embossing pattern, simple by adjusting the embossing rollers.

3. With the flying tracking cutting saw to make sure the speed can reach 35 meter per minute.

4. High quality hydraulic seals and valves to make sure shearing powerful and long time to use.

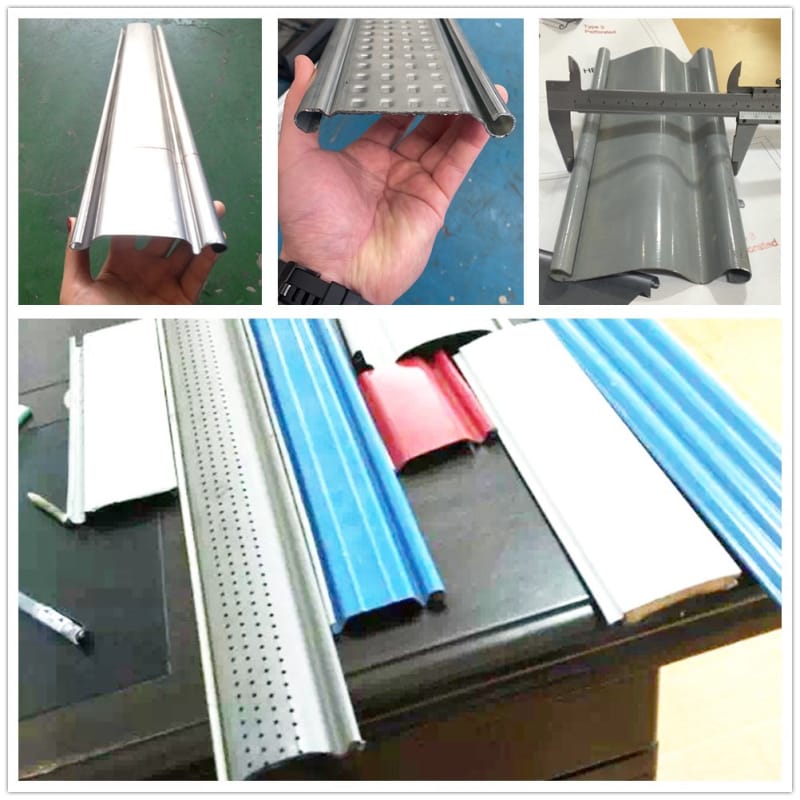

Check the profiles made by Zhongtuo rolling shutter door machine:

1. The rollers can protect the surface of the coil well. We can make sure the surface smoothly.

2. Good and easy for installation. The two pieces parts could be smoothly connected, and we can make sure you use it well.

3. Either for the embossing or without, those profiles could be made.



Here is the machine working video for your reference:
