Shutter Door Machine

Algeria 70mm Roller Shutter Slat Door Roll Forming Machine

Algeria 70mm Roller Shutter Slat Door Roll Forming MachineMain Components1. Main machine2. Manual/hydraulic decoiler3. Cutting device4. Hydraulic system5. PLC computer controlling system6. Run out tableFeatures of Door Roll Forming MachineShutter door roll forming machines can produce steel shutter door slats in galvanized sheet, pre-painted sheet or stainless steel sheet. Steel shutter door slats are used as the doors for work plants and shops because of durable use, space saving, low cost and low noise. The complete door roll forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with acomputer controlling system. We ...

   Inquire

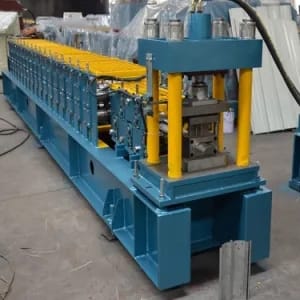

Algeria 70mm Roller Shutter Slat Door Roll Forming Machine

Main Components
1. Main machine
2. Manual/hydraulic decoiler
3. Cutting device
4. Hydraulic system
5. PLC computer controlling system
6. Run out table


Features of Door Roll Forming Machine
Shutter door roll forming machines can produce steel shutter door slats in galvanized sheet, pre-painted sheet or stainless steel sheet. Steel shutter door slats are used as the doors for work plants and shops because of durable use, space saving, low cost and low noise. The complete door roll forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the door machine produces it automatically. The machines are easy to operate and running stable.


After-sale Service
1. The warranty of door roll forming machines is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: 60 workdays
3. Port of loading: Port of Tianjin
4. Type of payment: T/T
5. Export: Australia, Ireland, Poland, Mexico, Brazil, Israel, Iran, Iraq, Dubai, Russia, India, Taiwan, Philippines, South Africa, Nigeria and others.

 Main parameter

 1

 Rollers

 14steps

 2

 shaft of diameter

 60mm

 3

 material of roller

 45#steel with treatment

 4

 thickness of material

 0.8-1.2mm

 5

 wall thickness

 14mm

 6

 speed

 8-12m/min

 7

 main power

 4kw

 8

 hydraulic power

 7.5kw

 9

 material of balde

 Cr12

 10

 drive type

 1''chain

 11

 control system

 PLC

 12

 voltage

 380v 3phase 50HZ
