A single STONE-COATED METAL ROOF TILE PRODUCTION LINE production line can produce various styles of colored stone tiles.

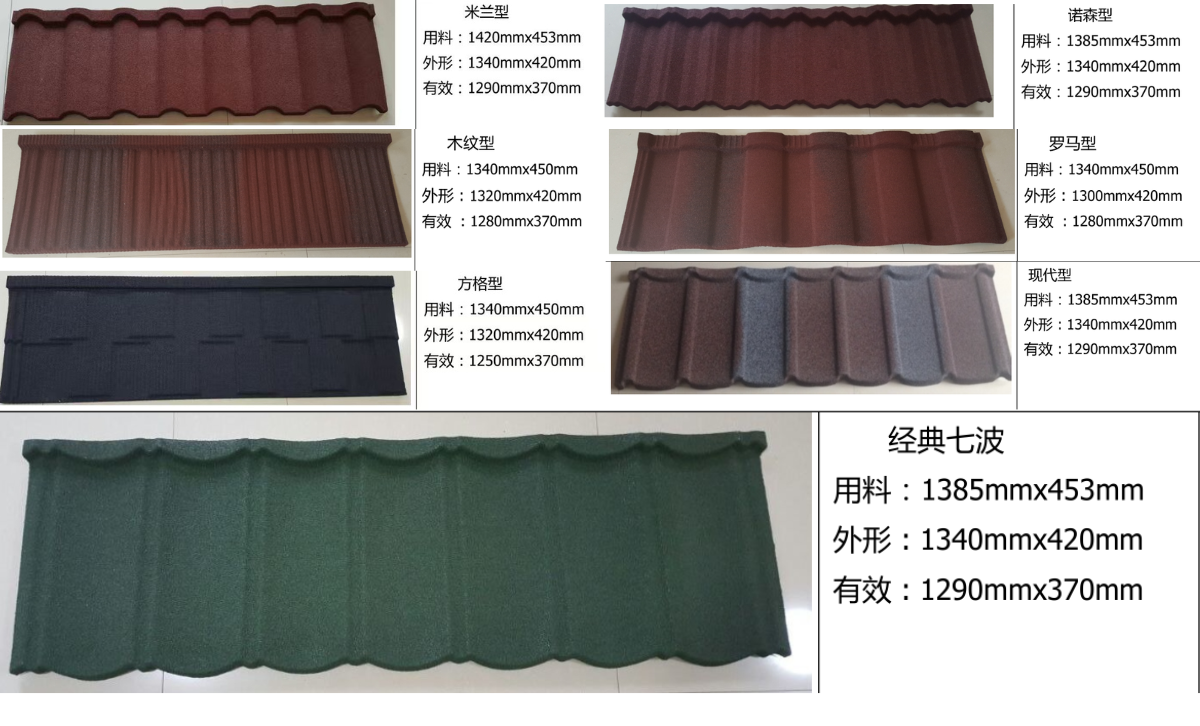

Diverse Finished Products Display

Workflow

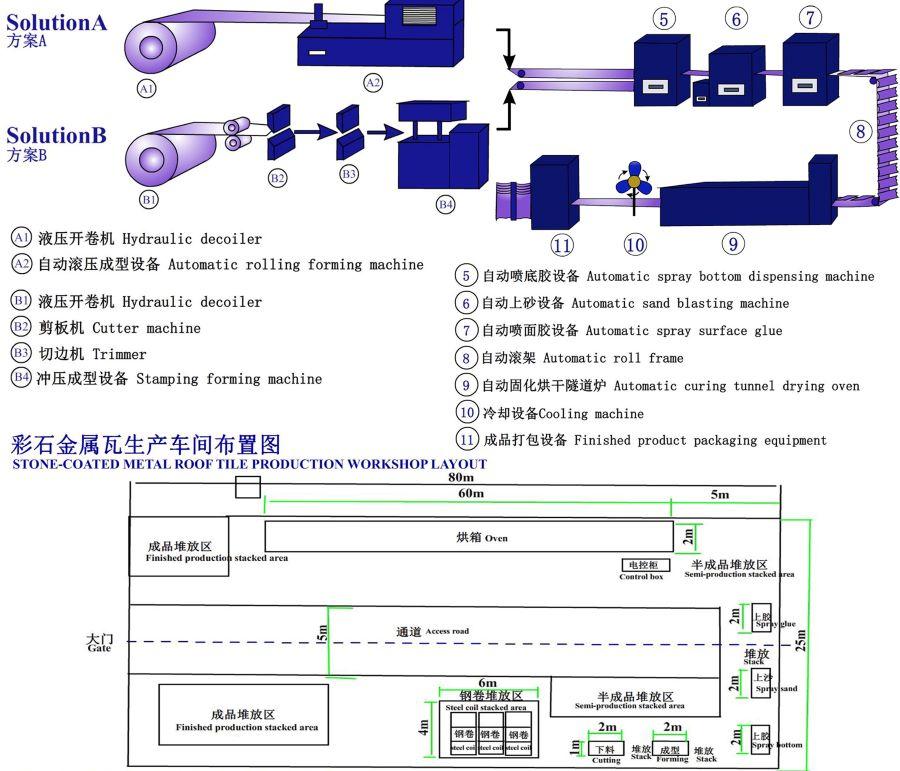

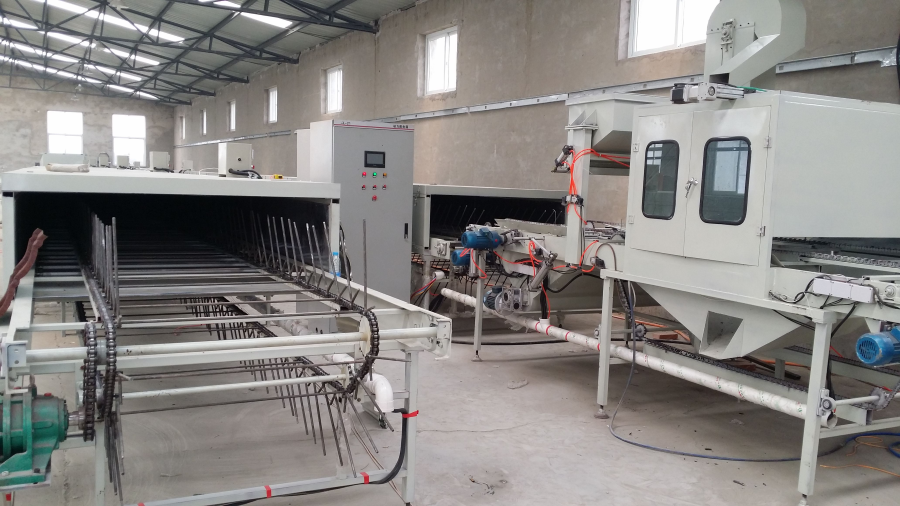

A complete STONE-COATED METAL ROOF TILE PRODUCTION LINE production line includes:

1. Automatic bottom glue spraying section

2. Automatic stone coating section

3. Primary drying section

4. Automatic face glue spraying section

5. Secondary drying section

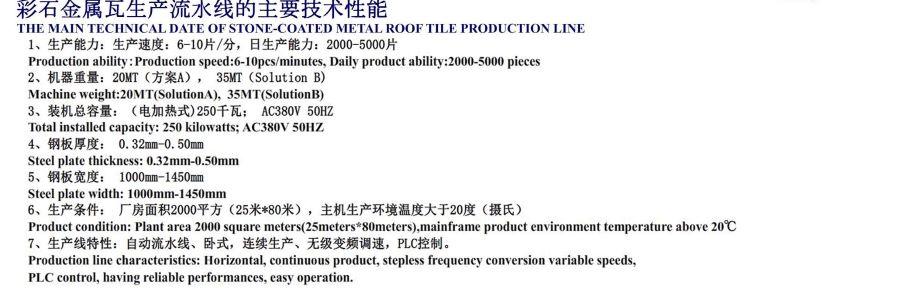

Production line characteristics: Horizontal, continuous production, stepless variable speed control via frequency conversion, PLC control, reliable performance, and easy operation.

Component Introduction

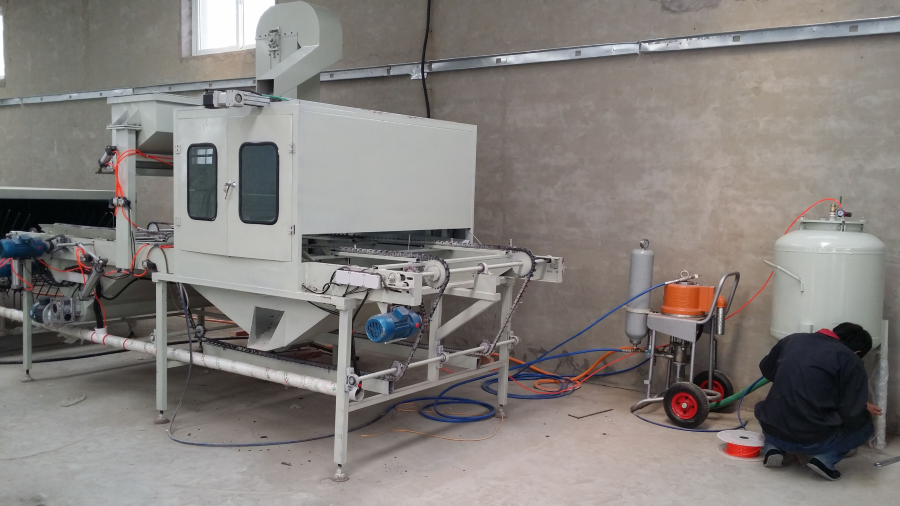

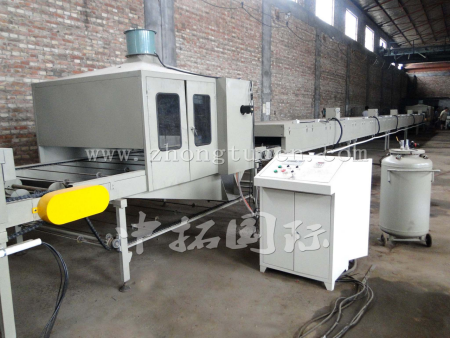

Automatic Bottom Glue Spraying Section

• Outside Dimension: 8001350850mm (LWH)
• Structure: Channel steel, welded
• Transmission: 2.2kW Variable-frequency adjustable-speed motor, 0-32R/Min
• Conveying Device: Reciprocating chain conveys
• Automatic Glue Spraying Assembly with Motor: 0.06KW
• Adsorption of Dust Removal Equipment: 1 set
• Air Compressor: 1 set, 0.09m³
• Airless Spray Glue Pump: 1 set
• Automatic Glue Spraying Gun: 1 piece
• Fill Glue Gun: 1 piece

Automatic Stone Coating Section

• Outside Dimension:3000*1850*700mm(L*W*H)
• Structure: Channel steel, angle steel, welded
• Transmission: With glue spraying equipment compound chain transmit
• Conveying Device: Compound chain transmit
• Automatic Sand Hopper: 1 set (Dimension 550*600*500mm)
• Automatic Rising Machine: 1 set (Rising Height: 1.9m, Power: 300kg/h)

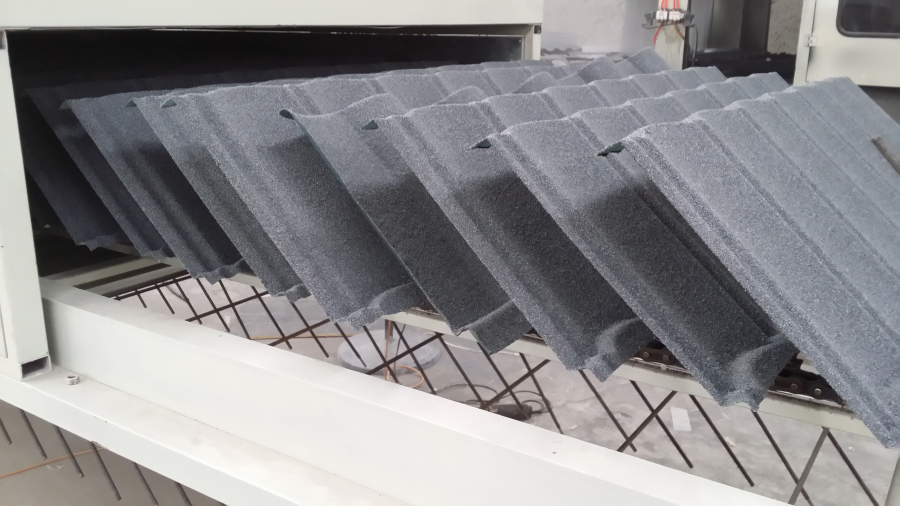

Primary Drying Section

• Outside Dimension:25000*800*1200mm(L*W*H)
• Structure: Carbon steel welded
• Frame Type Heat Preservation Wall: Fill up with heat preservation material which is bended with 1mm carbon steel
• Automatic Temperature Controller: 2 sets
• Range of Adjustable Temperature: 0-160°
• Infrared Fluorescent Tube: 50 pcs
• Conveying Device: Reciprocating chain conveys
• Cool Device: 1 set

Automatic Face Glue Spraying Section

• Outside Dimension: 3000*850*700mm(L*W*H)
• Structure: Carbon steel welded
• Automatic Glue Spraying Gun: 2 sets
• Automatic Spraying Assembly: 1 set (Range of Pressure: 0.1-0.6MPa)
• Adsorption of Dust Removal Equipment: 1 set
• Manual Spraying Gun: 5 sets

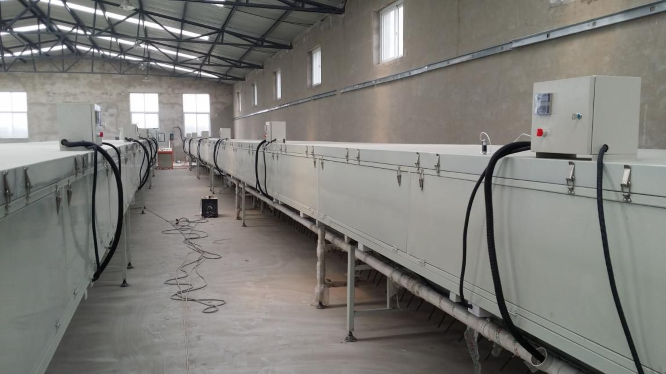

Secondary Drying Section

• Outside Dimension: 25000*800*1200mm(L*W*H)
• Structure: Carbon steel welded
• Frame Type Heat Preservation Wall: Fill up with heat preservation material which is bended with 1mm carbon steel
• Automatic Temperature Controller: 2 sets
• Range of Adjustable Temperature: 0-160°
• Infrared Fluorescent Tube: 50 pcs
• Conveying Device: Reciprocating chain conveys
• Cool Device: 1 set
• Automatic Printing Code and Marking: 1 set of automatic printer
• Total Equipment Matches Total Control Station: 1 set (Control system)
