High speed roof sheet roll former AG panel metal steel roll forming machine



Application:



High speed metal sheet roll forming machine is designed to produce steel roof panels, roofing step tiles and wall cladding sheets with different models, like IBR roofing sheets, corrugated roofing sheets, trapezoidal roof panels, AG roofing sheets, TR4 TR5 roofs, standing seam roofing sheets and concealed fixing roofing sheets etc.



In order to improve high efficient production and save labor cost, the high speed roof sheet roll forming machine is more and more popular in market such as 30meter/min, 40 meter/min or more fast speed.



Machine list of high speed roofing sheet roll forming machine:

1. 5T*1250mm hydraulic de-coiler as standard design

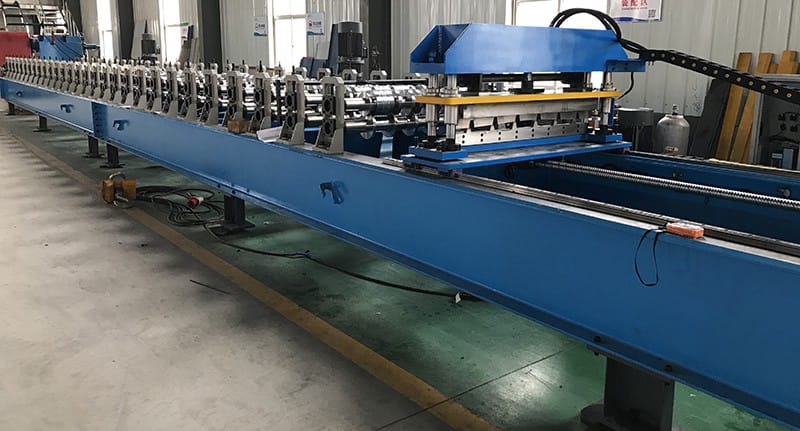

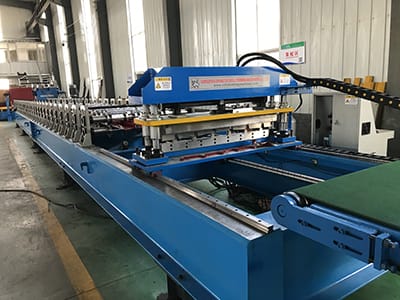

2. Roll former

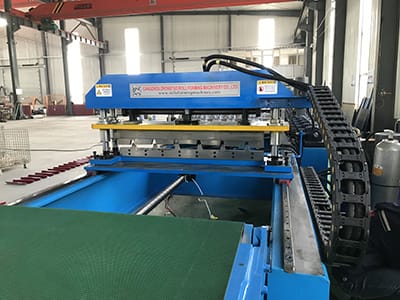

3. Hydraulic cutting device

4. Run out rack or pneumatic stacker

5. PLC control system



Description/Technical Parameter details of complete line:

· 5TX1250mm Hydraulic Un-Coiler with/without coil car

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons, Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 7.5KW or higher for high rotation and suit with Max. Line speed of roll former

Delta/Schneider brand inverter

Other design such as support arm or coil car can be added as client request

· Manual Pre-shearing device or hydraulic pre-shearing device to cut off the end of the final piece of sheet only

· Roll forming machine with cutting details as below table :

Suitable roll forming material

Color steel sheet or galvanized steel sheet, G550

Thickness

0.4-0.8mm or as request

Coil feed in width

914/1219/1250mm

Carriage Frame design

Wall-plate-frame-design, thickness 25mm

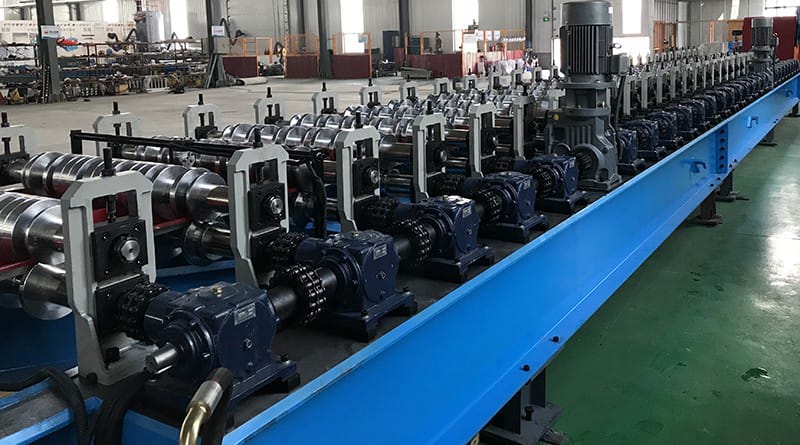

Roll forming stages

24-28 stages

Material of forming roller

45# steel, heat treatment, Hard Chrome Coated or Cr12, heat treatment

Shafts Diameter

Φ80/90mm

Main motor power

18.5Kw with reducer

Line speed of roll former

30/40/45m/min

Hydraulic group power

7.5 Kw

Cutting material

Cr12, hear treatment

Electric Voltage Standard

415V/50Hz/3PH or as request

Major Painting Color

Customized and RAL5015 as standard



Our advantage of high speed roofing sheet making machine



. Ensure roller hardness. Increase the chrome thickness of the key part of roller.

. Ensure roller accuracy. Rollers are made from two times CNC processes and grinding.

.  Increase roller size and use more harder raw material.

.  Larger rollers and adopts solid high quality steel (this steel is used to make bearings)

So that roller’s shape is high accurate and hard enough to form steel plate. Service life time is longer.



There are also some TN40 roof sheet panel roll forming machines working video for you check, please click bellow link:



https://www.youtube.com/watch?v=LAa_ExFvVes



Any interest, welcome to contact us.
