5V Modle Corrugated Galvalume Roofing Sheet For Chile Market Iron Roof 5V Plancha Calaminas Makinng Machine

5vmachine is the popular style inChilemarket, this is one set single layer forming machine, it can assemble double layer machine withcorrugatedshapeWorking Process The completedouble layerroll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep the5V Modle Corrugated Galvalume Roofing Sheetlength accurate.EACH PART DETAIL INTRODUCTION1.5 Ton Manual Decoiler2.Roof and wall panel forming machine1) Leveling beachwith manualcutterUsage:Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and eve...

   Inquire

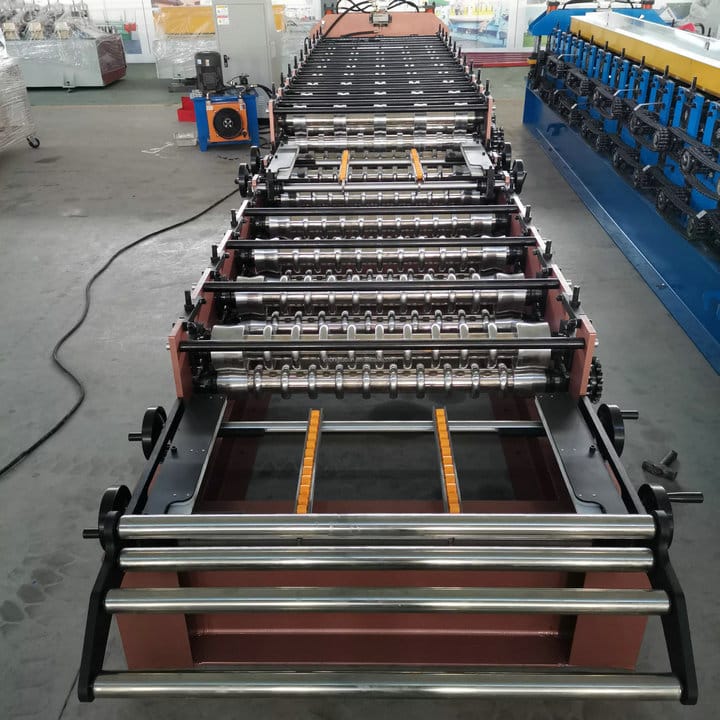

 5v machine is the popular style in Chile market, this is one set single layer forming machine, it can assemble double layer machine with corrugated shape

Working Process



   The complete double layer roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep the 5V Modle Corrugated Galvalume Roofing Sheet length accurate.




EACH PART DETAIL INTRODUCTION

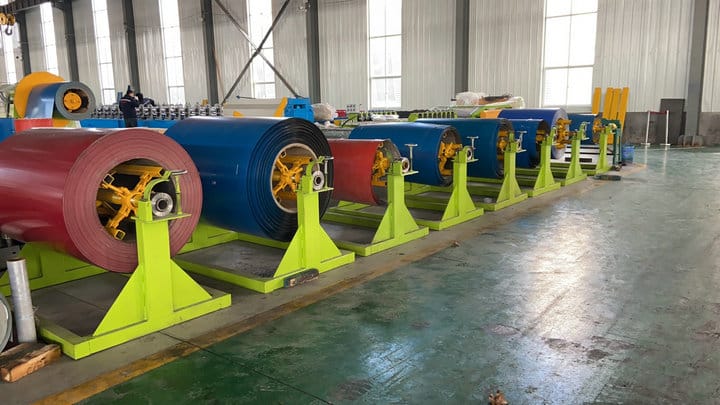

1. 5  Ton  Manual Decoiler



 2. Roof and wall panel forming machine

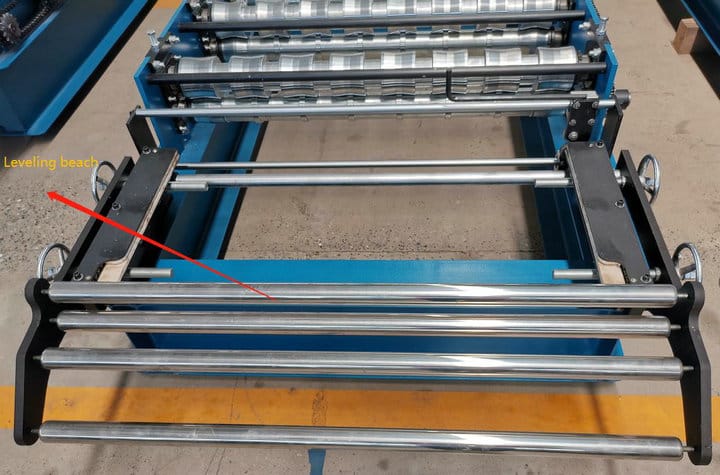

1) Leveling beach with manual cutter

Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.


2) Main Roll Forming System for Roof and wall panel forming machine

Usage

In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

MACHINE

About 11500*1650*1500mm

Weight of main part

About 15T

 Voltage

380V/50HZ3Phase

 Roller fixer

Middle plate welded of thickness 20mm

 Frame

350mm H steel welded

 Frame thickness

20mm

 Drive mode

Double Chain 1.0

 Material of rollers

45# steel surface hard chromium plating.

 Material of shafts

45# steel

 Diameter of shafts

90mm

 Number of rollers

11+16 rollers


3) Shearing  system

Usage

Automatic cutting controlled by PLC. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. In order to increase the speed, we have to change the shearing method. Shearing from down to up or using the servo motor.

Material of blades

Cr12 quenched

Power supply

hydraulic power

Components

It contains one set of blade, one hydraulic tank and one cutter machine, Note: two hydraulic jacks.



4Hyraulic Station with cooling fan

Usage

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

Power

5.5kw

Hydraulic oil

46#

Components

The system includes a set of hydraulic tank, a set of hydraulic oil pump, and four hydraulic pipes and two sets of electromagnetism valves.

Spare Parts

Give one set of cutting blade as spare part for each set.

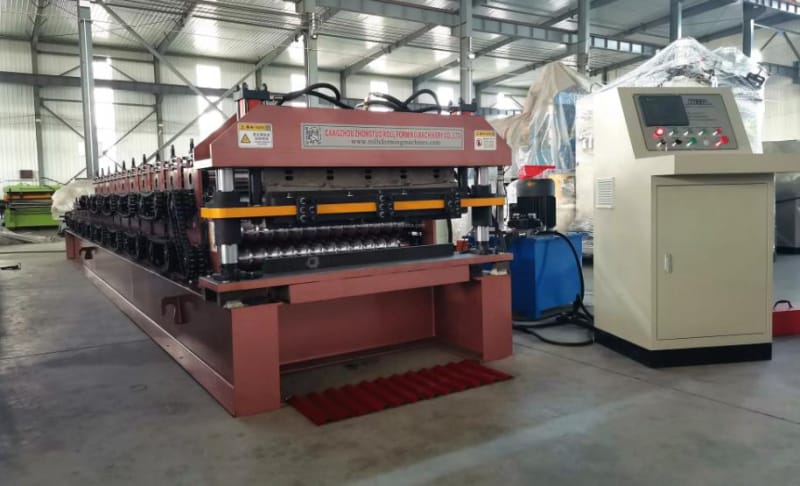

PLC control system

Usage

Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime;Touch screen, also have buttons on the panel

Brand

Frequency brand  Delta (original)

PLC brand     Delta (original)

Low pressure electric part : Schneider brand

Counter

One counter gauges length, pulses, and decides length

Brand

Omron encoder for length measurement
