  Metal roof sheet machine

    Rain water steel downpipe spout roll forming machines

    DescriptionRain water steel downpipe spout roll forming machinesmake precise and well sealed roof drainpipefor carrying rainwater from a rain gutter.Advantage ofsteel downpipe spoutpipe;galvanizedsteelgutteringresiststhermalexpansion andcontraction,whichmeansthatitremains unaffectedfromsuddenfluctuationsintemperature. Steelhasanexcellentlifetimevalue,asitcanberecycled.The downpipe forming machine we produce is customized according to the specific requirements of customers, such as specification and raw materials. The machine is installed and tested before leaving the factory. After receiving the machine, the customer can start production once connect wires and tubes. We randomly send instruc...

       Inquire


    Description

    Rain water steel downpipe spout roll forming machines make precise and well sealed roof drain pipe for carrying rainwater from a rain gutter.

    Advantage of steel downpipe spout pipe;

    galvanized steel guttering resists thermal expansion and contraction, which means that it remains unaffected from sudden fluctuations in temperature. Steel has an excellent lifetime value, as it can be recycled.

    The downpipe forming machine we produce is customized according to the specific requirements of customers, such as specification and raw materials. The machine is installed and tested before leaving the factory. After receiving the machine, the customer can start production once connect wires and tubes. We randomly send instructions to tell how to operate. Of course, we also have corresponding videos for reference. Technicians Can also be sent to customer factory for guidance and training if necessary.

    The downpipe roll forming machine also work with elbow bending machine, which make flat pipe to curve according to construction requirement.

    Specifications

    Machine Specifications
    WeightAbout 5000kgs
    SizeAbout 11m x 1.2m x 1m (length x width x height)
    ColorMain color: blue
    Warning color: yellow
    Suitable Raw Material
    MaterialGalvanized Steel Coils
    Thickness0.5-0.8mm
    Coil width325mm
    Yield Strength235Mpa
    Main Technical Parameters

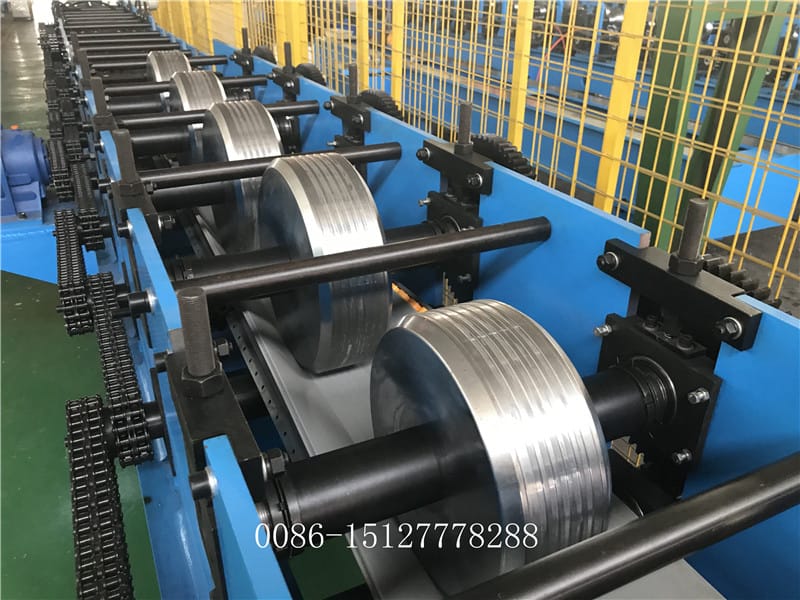

    Quantity of forming rollers stations20-22
    Diameter of forming rollers shafts60mm
    Roll Forming Speed8-12m/min
    Forming rollers materialNo.45 steel, coated with chromed treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMotor of roll forming machine: 5.5kw
    Motor of sawing cutter: 3kw
    Motor of elbow machine: 1.5kw
    Electric voltageAccording to customer’s requirement
    Main Components
    Decoiler (manual and automatic for options)1 set
    Guiding device1 set

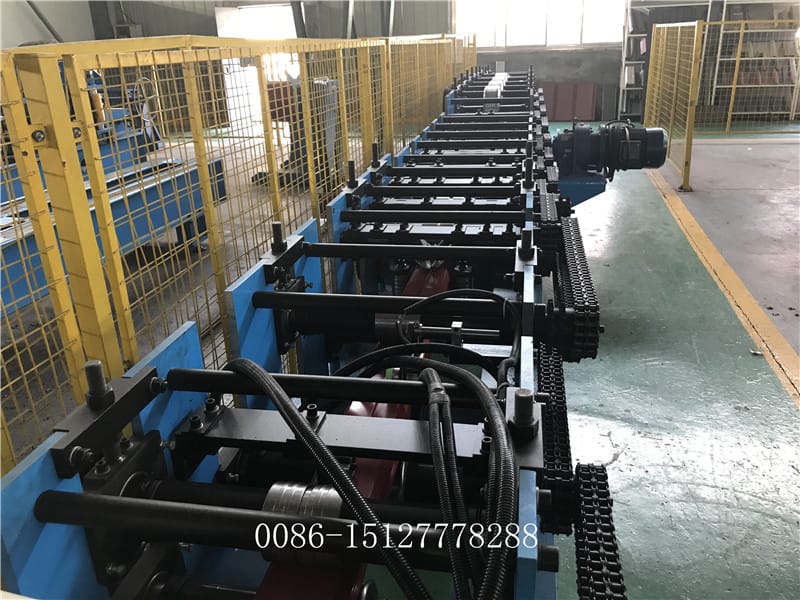

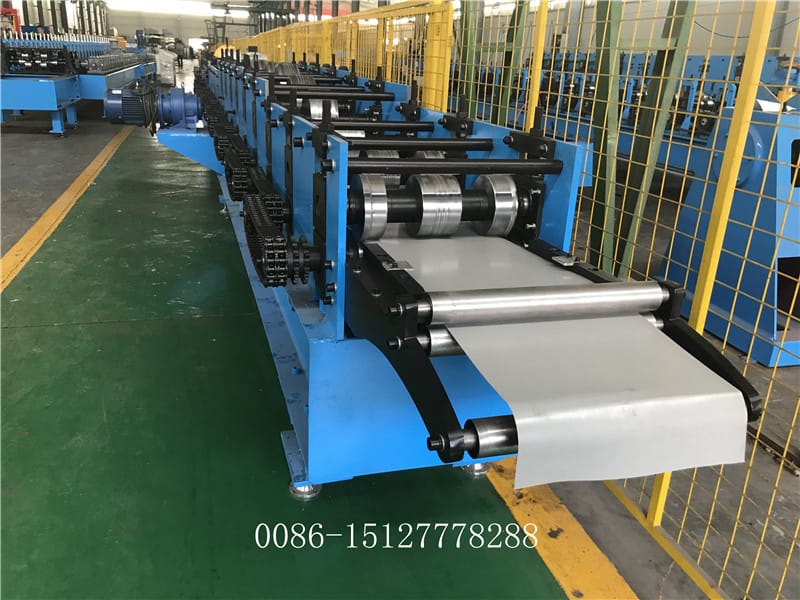

    Roll Forming system1 set

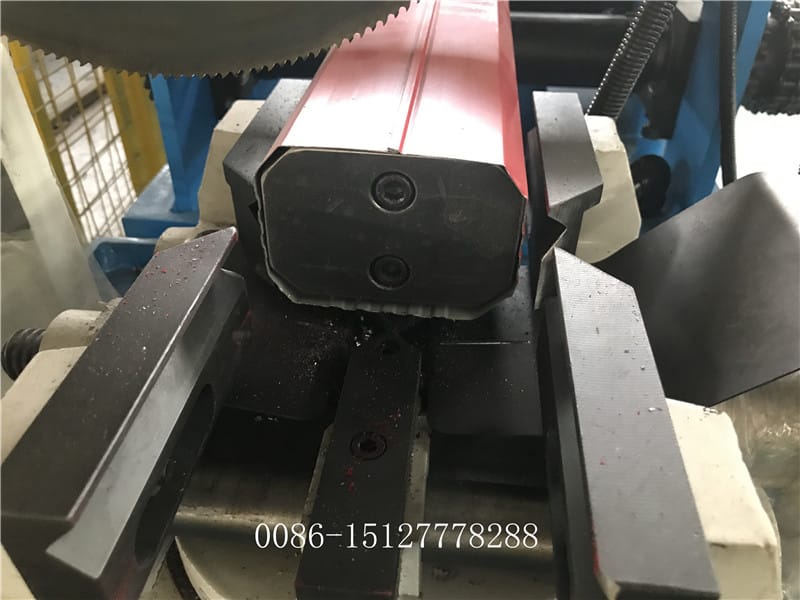

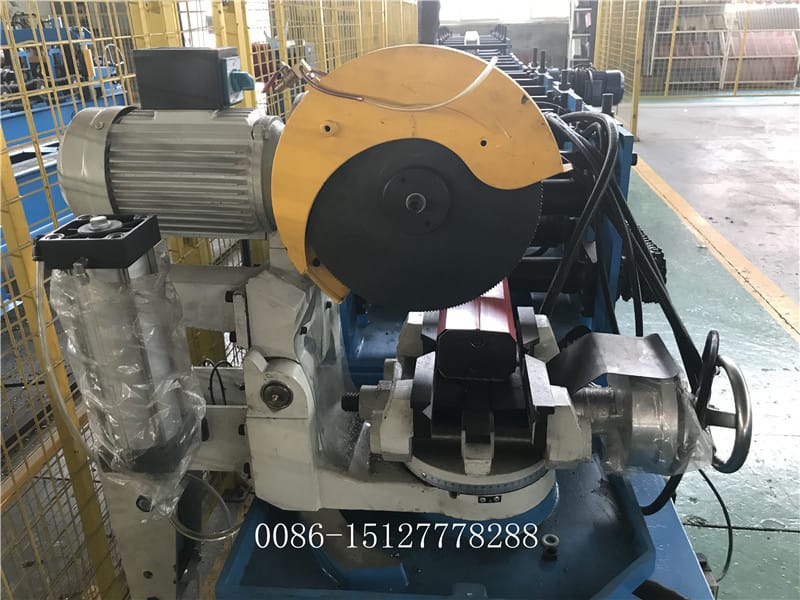

    Sawing Cutting system1 set
    PLC control box1 set
    Elbow machine1 set
    Run outs tables1 set

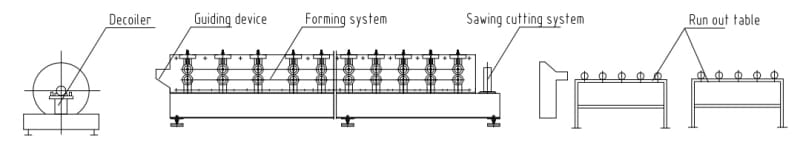

    Layout of downpipe machine
