High Speed Glazed Tile Roof Sheet Roll Forming Machine Ruukki Adamante Tile Machinery

  1. This high speed step tile roof sheet machine working speed can be 6-8m/min, high efficiency.

  2. This high speed glazed tile roof sheet machine with gear box transmission, long service life.

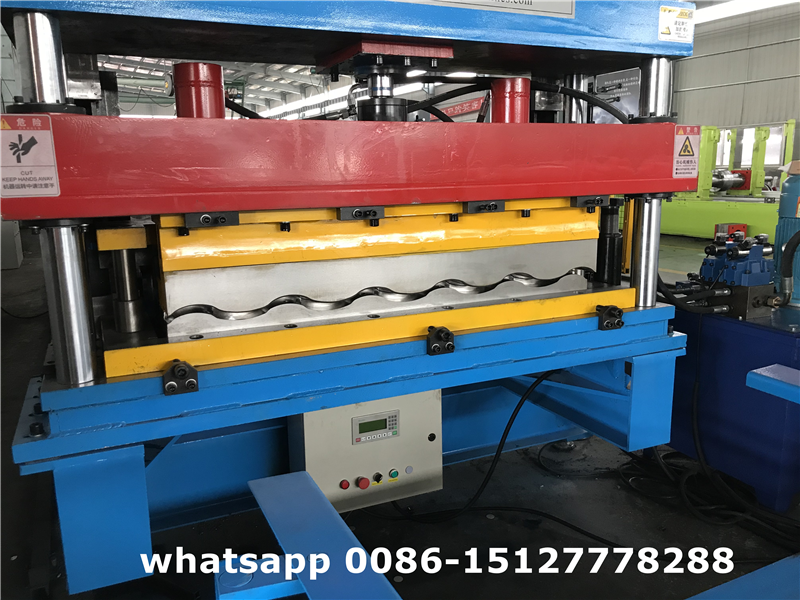

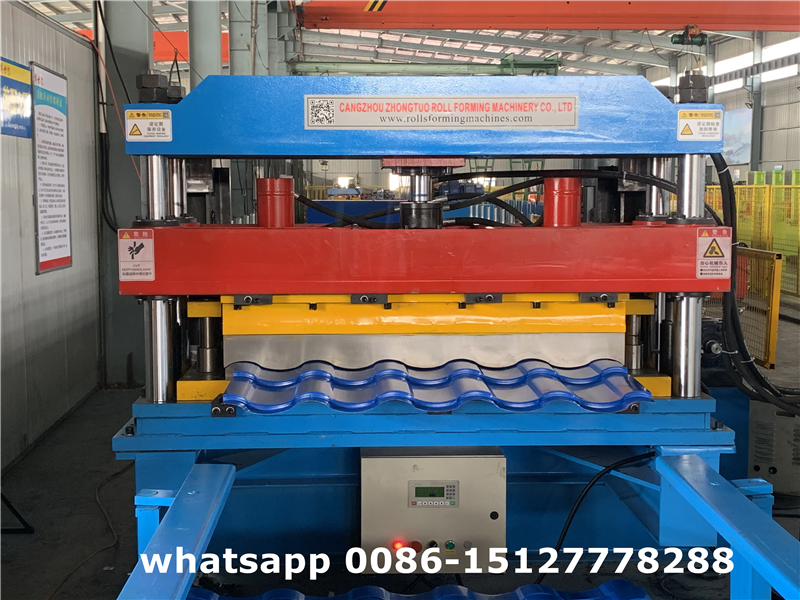

  3. This high speed step tile roll forming machine, cutting and pressing are in one whold part, high accuracy, also lower the waste.


Technical data of high speed glazed tile roll forming machine



Suitable material

Color steel sheet;0.3-07mm,

Working speed

About2-3m/min

Material stress

235MPa,345MPa,550MPa.

Power

Main motor power: 7.5 Kw

(Depend on final design)

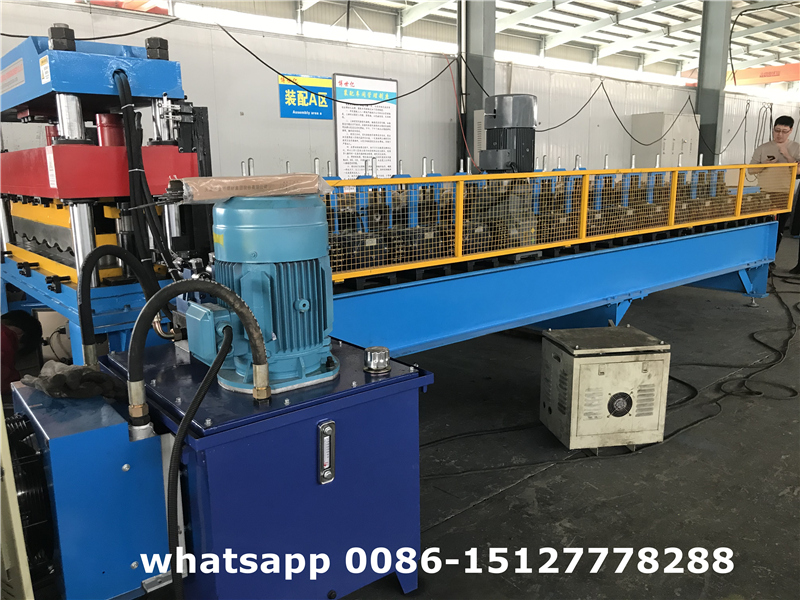

Hydraulic station power: 5.5Kw

(Depend on final design)

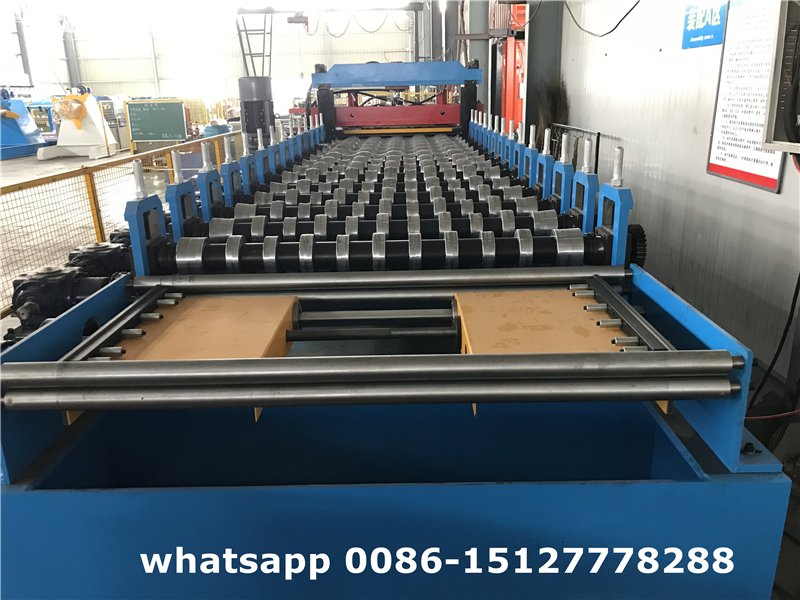

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter,pressing die

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, Roller grinder milling.

Shaft diameter

80mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 9500KGS

Machine’s size

About 18m×1.8m× 1.5m (Depend on final design)
