Produce ceiling systems with our 3-in-1 T Roll Forming Machine. Featuring Cr12 rollers with a 1 year warranty, servo tracking, and cost-saving size optimization. Trusted globally..

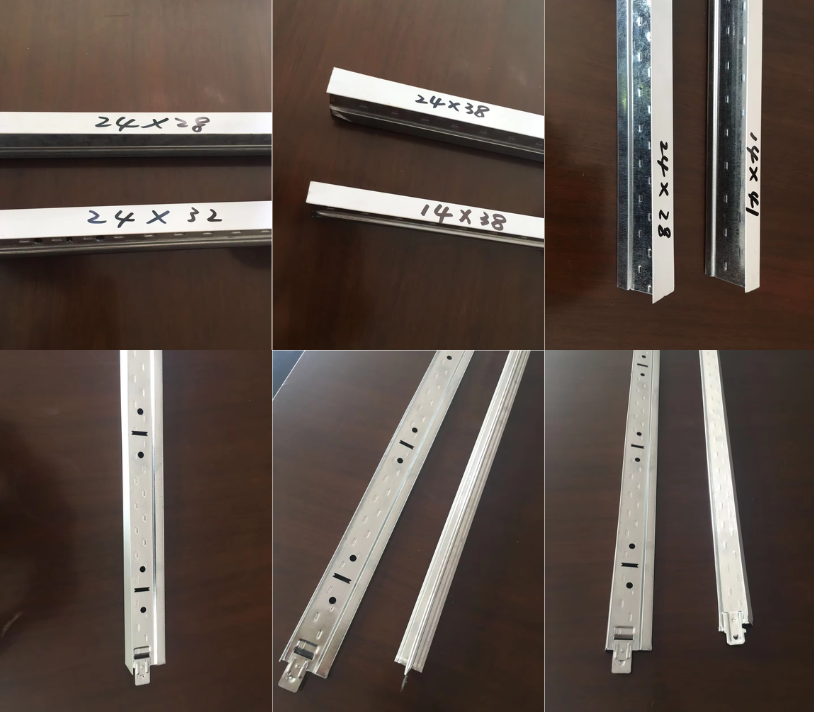

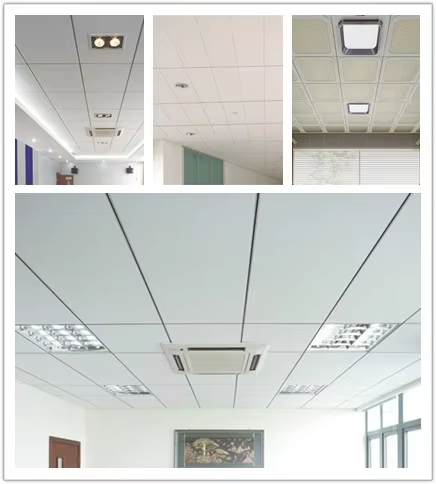

Diverse Finished Products Display

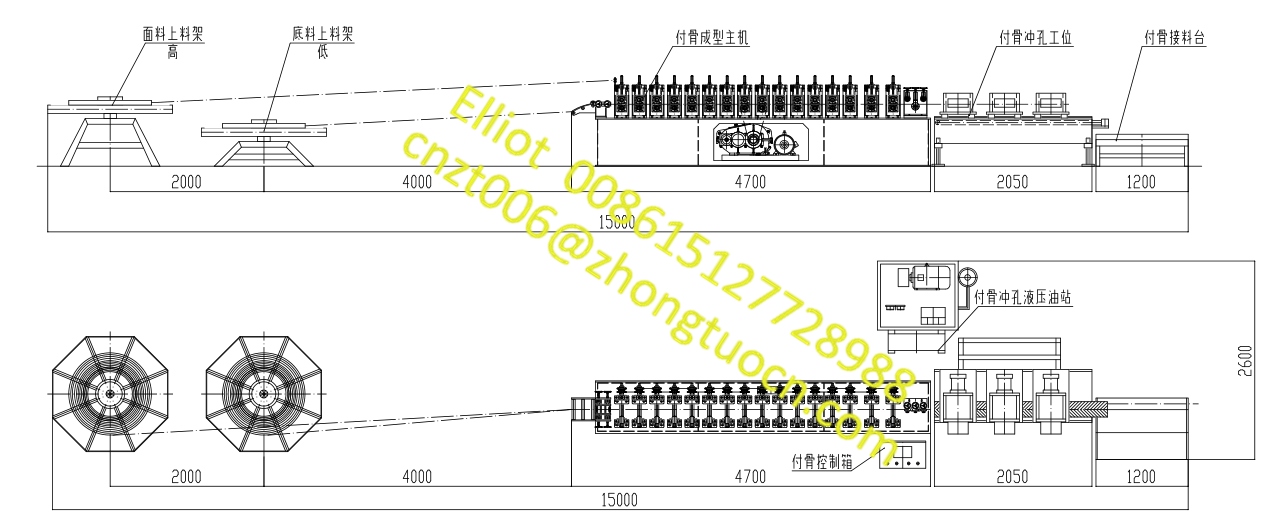

Workflow

A complete T Roll Forming Machine production line includes:

1.Manual Decoiler

2.Entry Beach

3.Roll Forming Machine

4.Automatic Tracking Cutting

5.Hydraulic Station

6.Electric Control System

Component Introduction

1.Manual Decoiler

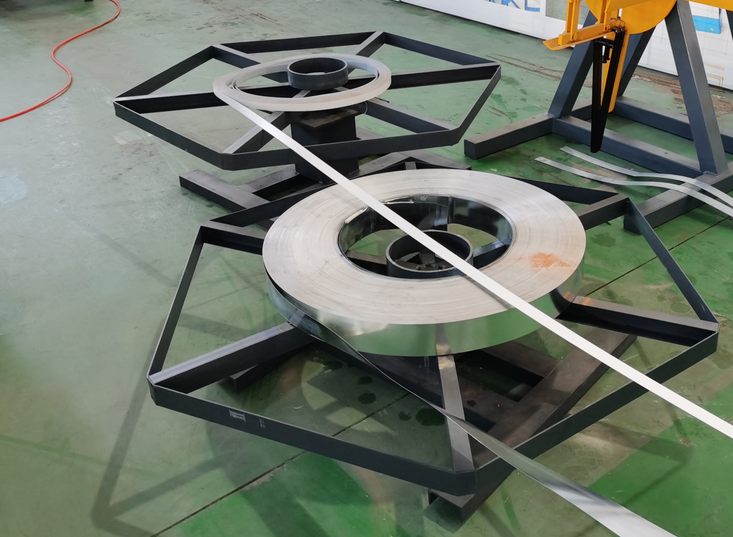

Two sets Manual Decoilers:

• Inner diameter: 450-550 mm
• Coil max width: 300 mm
• Max carrying capacity: 1500 kg

2.Entry Beach

• Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.
• Feature : Ensure stability , precision and lifetime.

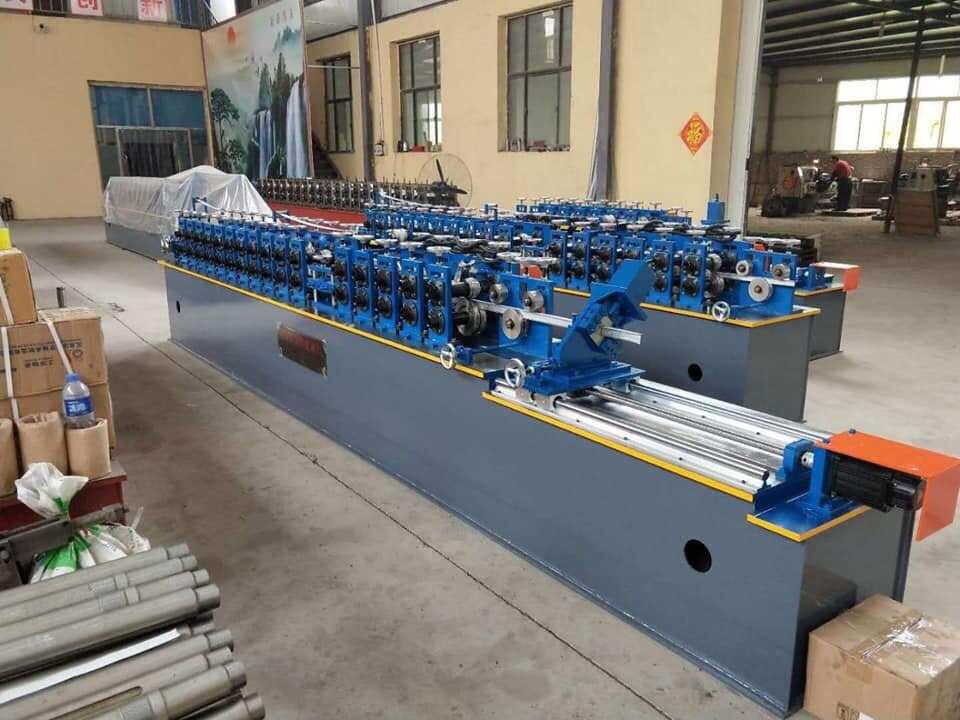

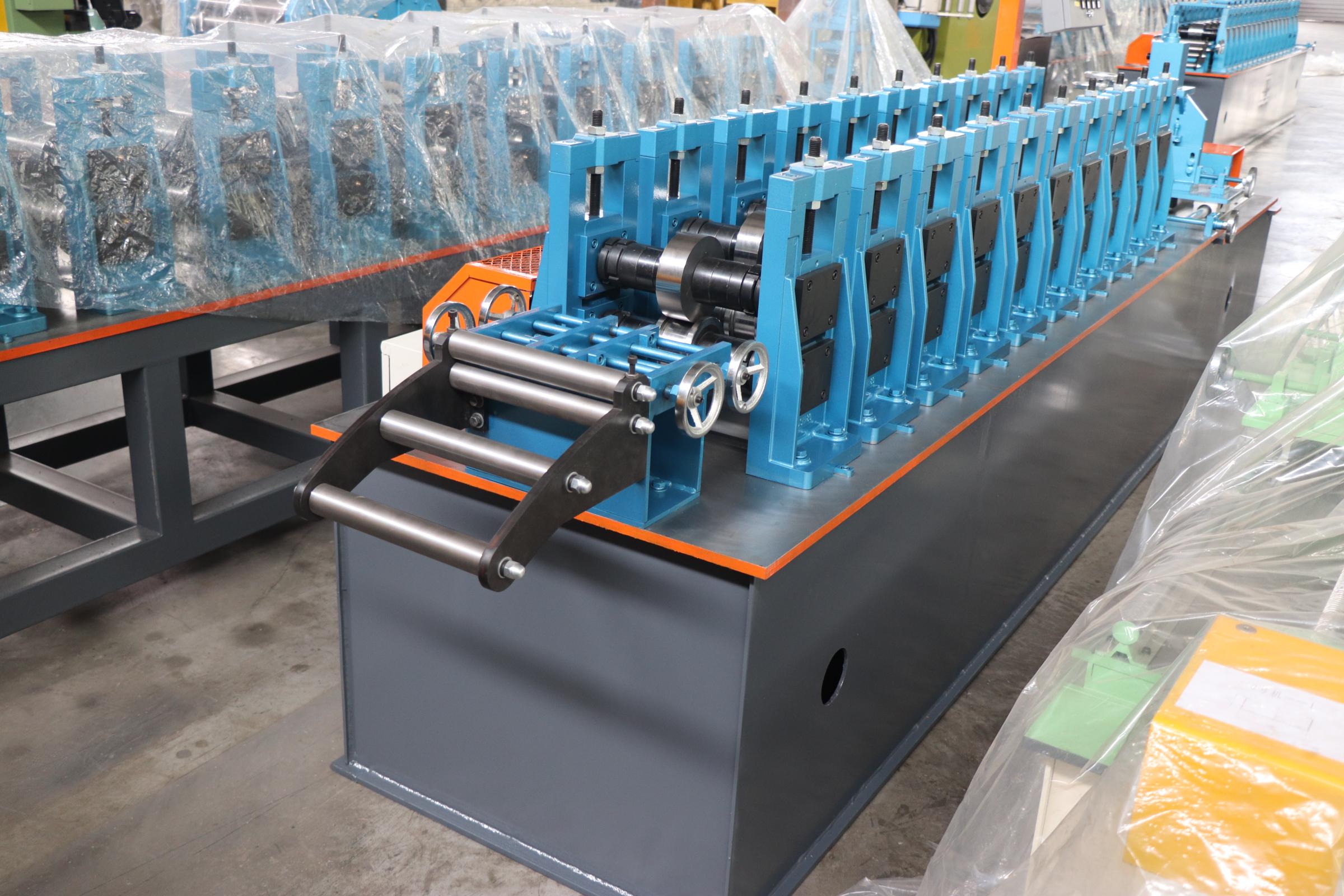

3.Roll Forming Machine

• Number of forming steps: 16 stations
• Shaft material: 45# steel with quenched treatment precision machined outer diameter: 40 mm
• Roller material: Cr12 with quenched treatment
• Transmission type: Chain
• Forming speed: 0-25 m per minute
• Motor power: 4kw
• Voltage: 380 v 50 hz 3 phase
• Structure: Independent stand (cast steel)

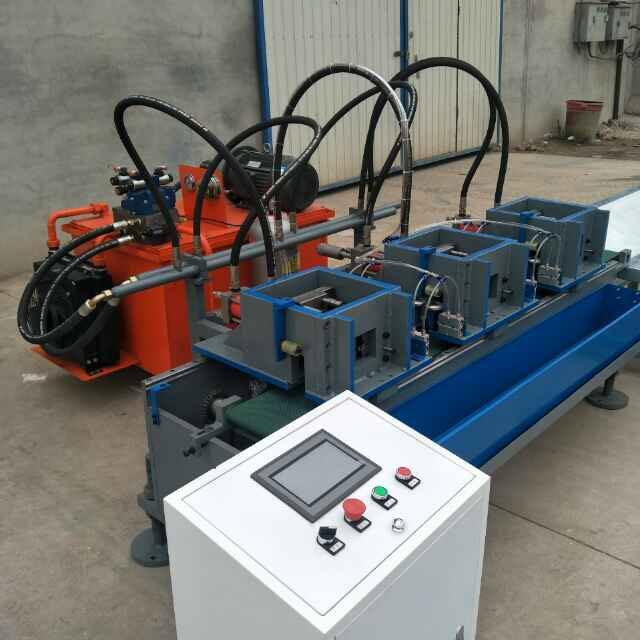

4.Automatic Tracking Cutting

Introduction：The blade will automatic adjust the position as the speed of the roll forming machine. Keep in the line with the running speed of the roll forming machine. When reach a set length, keep the running speed constant, and cutting the material.

• Punching type: servo tracking punching
• Material of blades: Gcr12mov quenched
• Servo motor power: 3.8 kw
• Power supply: 7.5kw hydraulic power
• Have logo pressing function

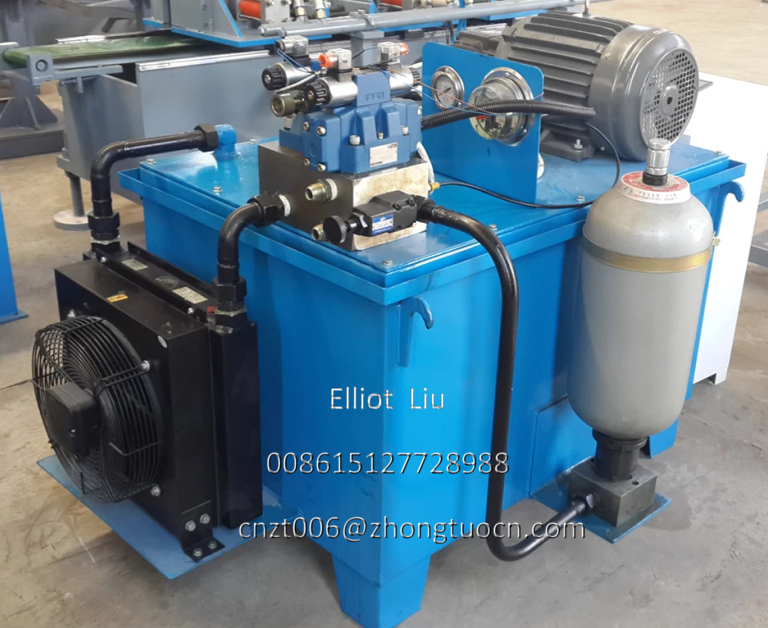

5.Hydraulic Station

Introduction：It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

• Hydraulic motor Power: 7.5 kw
• Hydraulic oil: 46#
• Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. and two sets of electromagnetism valves

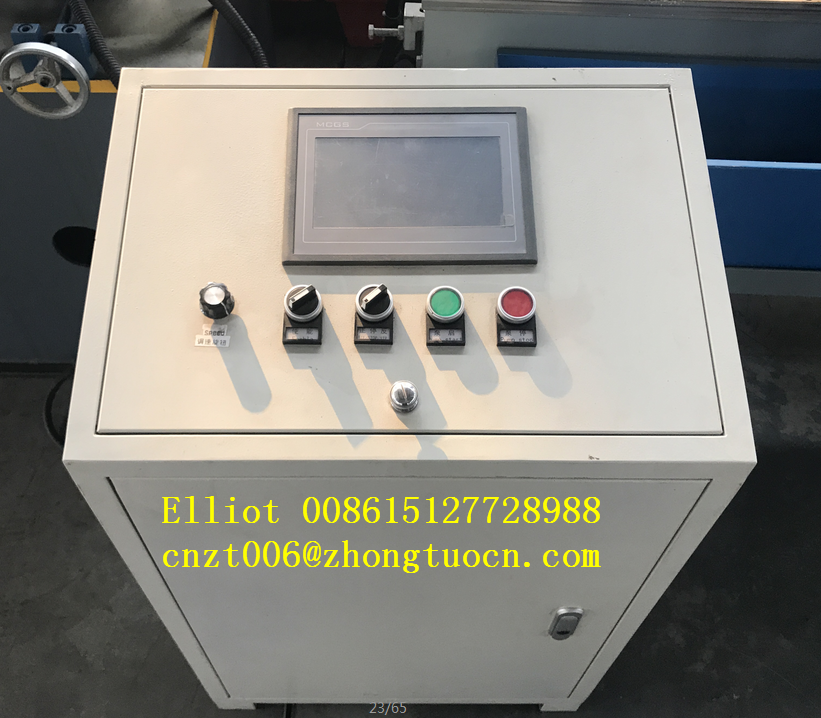

6.Electric Control System

Introduction：Adopted PLC, transducer, touch panel to ensure high speed with stability, precision and lifetime.Equipped with movable switch , air break, radiator, transformer & electric leakage protector for operation convenience and safety.

• Language: English and Chinese
• Automatic length & quantity measurement
• Length Tolerance: 3 m±1.5 mm
• Operating panel: touch screen with button
