Furring Hat Machine

FURRING 68X22 FURRING ROLL FORMING MACHINE

FURRING 68X22 FURRING ROLL FORMING MACHINE The furring roll form machine is designed for making the furring hat panel in batch fully automatically. The size is 68x22.The furring panel drawing profile for your reference:Work flow of the furring roll forming machine:De-coiler-----Guiding-----Roll forming machine--Servo Fly Hydraulic cutting -----Run-outBased on the customer requirements and our experience, we design the furring Roll Forming Machine like following picture:The composition of the whole line and Technical parameters Packing list

   Inquire


FURRING 68X22 FURRING ROLL FORMING MACHINE

The furring roll form machine is designed for making the furring hat panel in batch fully automatically. The size is 68x22.

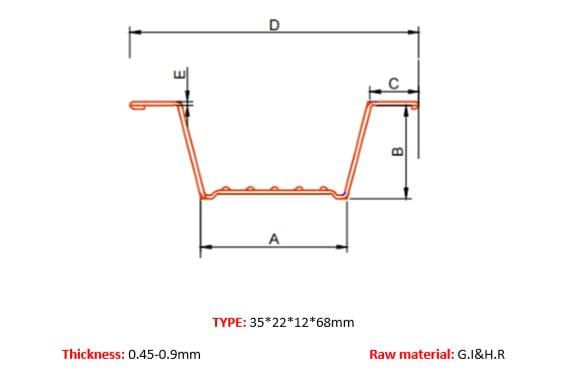

The furring panel drawing profile for your reference:

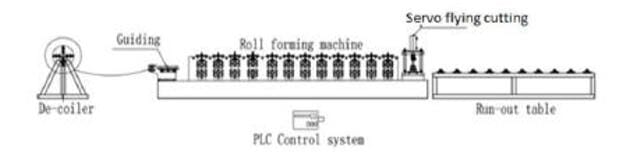

Work flow of the furring roll forming machine:

De-coiler-----Guiding-----Roll forming machine--Servo Fly Hydraulic cutting -----Run-out

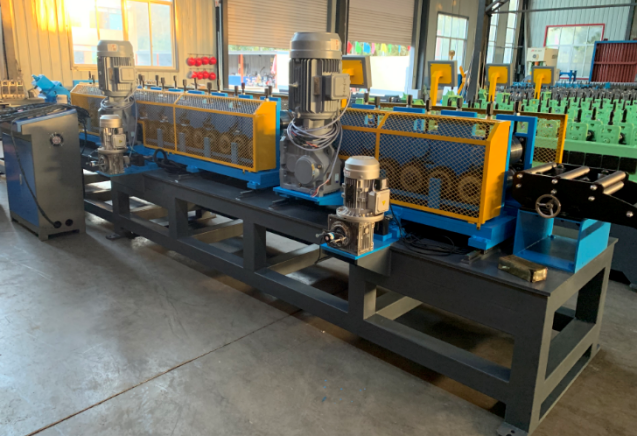

Based on the customer requirements and our experience, we design the furring Roll Forming Machine like following picture:

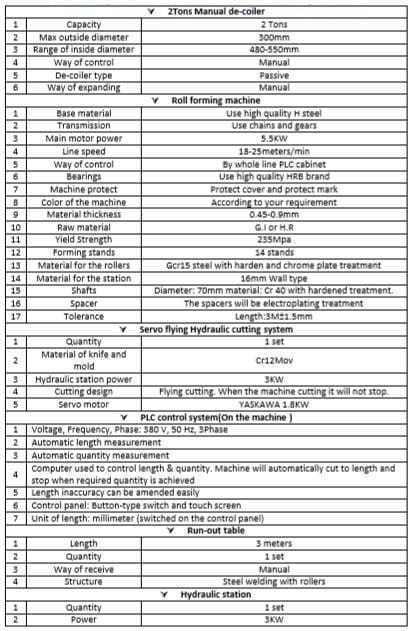

The composition of the whole line and Technical parameters

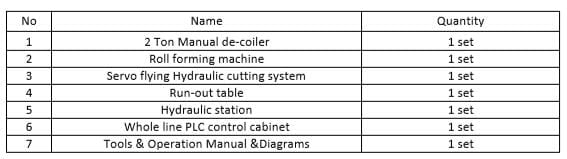

  Packing list
