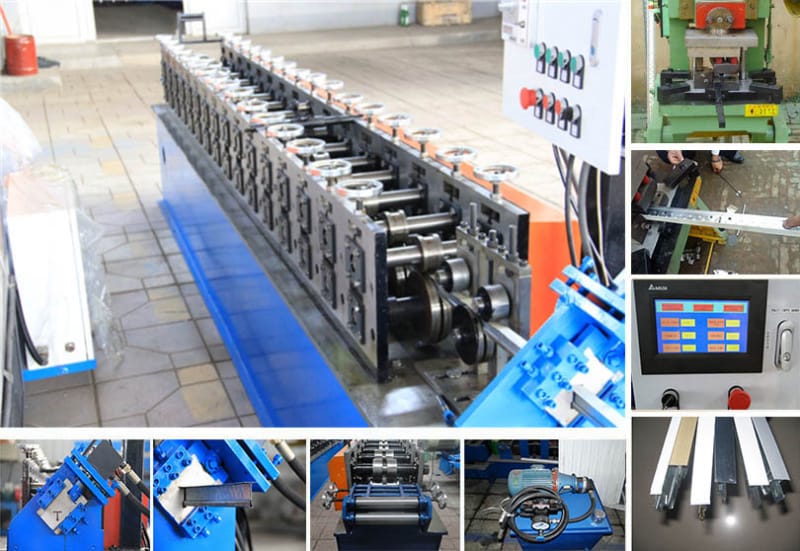

Half automatic Tee bar roll forming machine for various types ceiling Tee bar

China homemade Ceiling Tee bar roll forming machine, half automatic version Zhongtuo cold roll forming machinery has two types Tee bar roll forming machines, half automatic version and full automatic version. In the last article we have mainly introduce the fully automatic version, here I will show you some information about the half automatic version.The reason why I called it half automatic version which means you needs to punch hole on the Tee bar yourself. This half automatic version Tee bar roll forming machine only can change coil to T bar shape. If you need punching machine, we can make for you or you can buy from the market.Half automatic Tee bar roll forming machine has the same wor...

   Inquire


China homemade Ceiling Tee bar roll forming machine, half automatic version Zhongtuo cold roll forming machinery has two types Tee bar roll forming machines, half automatic version and full automatic version. In the last article we have mainly introduce the fully automatic version, here I will show you some information about the half automatic version.

The reason why I called it half automatic version which means you needs to punch hole on the Tee bar yourself. This half automatic version Tee bar roll forming machine only can change coil to T bar shape. If you need punching machine, we can make for you or you can buy from the market.

Half automatic Tee bar roll forming machine has the same working speed as the fully automatic version Tee bar roll forming machine but the time for punching part will be decided by the punching machine.



Here are some machine basic parameters for your reference
Raw materialProcessing material: GI
Material thickness: 0.2---0.4mm
Material hardness: 550 MPA---350 MPA
Formed width: 24mm
Main machine information size and weightLength of the main part: about 3500…800…1400
Weight of main part: 3 tons
VoltageVoltage : 380V/50HZ3Phase (as customer's request)
Roller fixerGuide column
Framemiddle plate welded, memorial arch frame type
Frame thickness:25mm
Drive modegear box
Material of rollersGCr12MoV
Material of shafts45# steel with tempering
Diameter of shafts40mm
Number of rollers16 rollers
Main power3kw
Cyclical planetary gear speed reducer)
Noted: different sizes will be produced by adjusting the spacers by hand.
Main elements of the machine
Decoiler2 for different material
Main roll forming machine1 set
Shearing saw1set
Computer for PLC1 set
Counter1 set
Hydraulic Station1 set
Runout table1 set

Various types of keel forming machine
