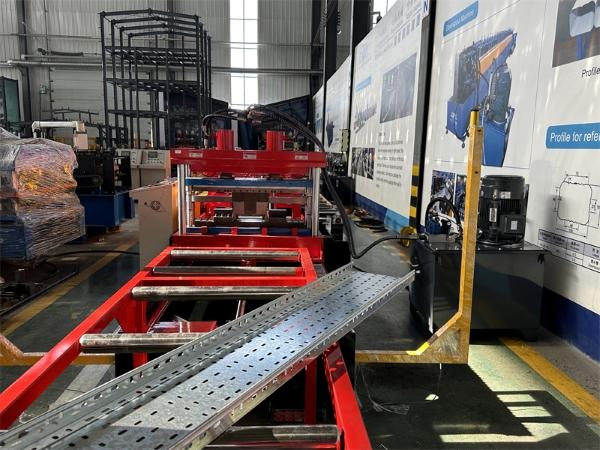

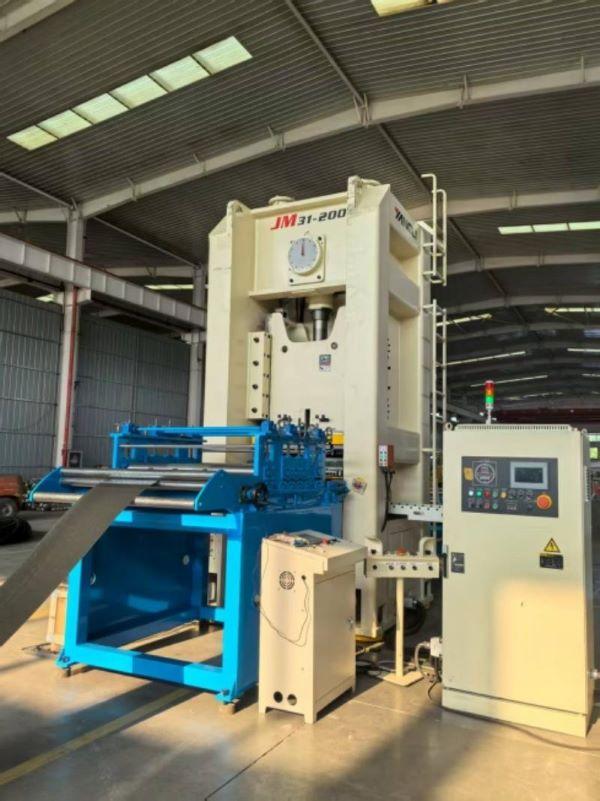

Are you looking to produce high-quality cable trays for construction, data centers, or power plants? Our 600-Model Roll Forming Machine is built to deliver. This machine specializes in creating perforated cable trays with widths between 50mm and 600mm. Unlike standard formers, our machine includes a powerful 200-ton punching system capable of handling steel up to 2.0mm thick. The result is a durable, professional-grade cable tray that meets international standards for cable management systems.

Product Capabilities

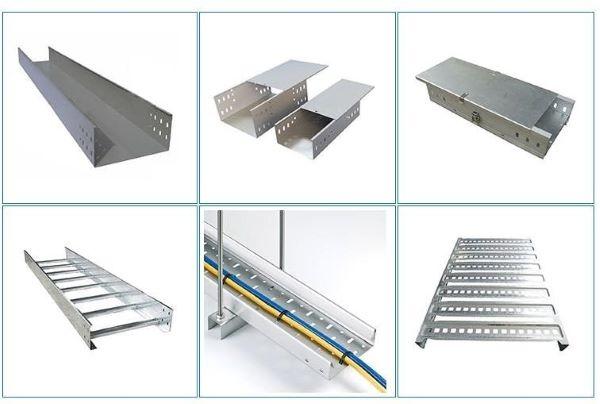

The machine is designed to produce trays with the following specifications, ensuring compatibility with global market demands:

Width Range: 50mm to 600mm (adjustable)

Height Range: 50mm to 100mm

Length: Customizable from 2000mm to 6000mm

Material: Suitable for galvanized steel and pre-painted steel (0.5-2.0mm)

Quality Assurance Features

Robust Structure: The machine features a heavy-duty frame and a 65mm main shaft to prevent sagging or vibration during high-speed forming.

Superior Roller Quality: We use Cr12 steel for all forming rollers, which is hardened to resist wear and maintain the surface finish of your galvanized trays.

Accurate Perforation: The punching unit ensures clean holes for ventilation and cable ties, essential for modern perforated cable trays.

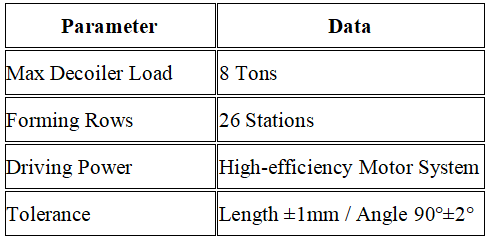

Technical Data at a Glance

Invest in a machine that combines power, precision, and automation. Contact us today to discuss how this 600-Model line can upgrade your production capabilities.
