C ZPurlin Roll Forming MachineA c purlin or z purlin is a horizontal beam or bar to provide structural support in buildings. Ourpurlin roll former can produce purlins ofdifferent sizes. C Z purlinRoll Forming Machineisalso called Interchangeable purlin roll forming machine or zpurlin making machine. In steel construction, the term purlin typically refers to roof framing members that span parallel to the building eave and support the roof decking or sheeting. The steel of c purlins are in turn supported by rafters or walls. So pre-punched purlins are quick to install and suitable for both insulated and uninsulated roofs and walls. The thickness and height of the purlin selected depend on span...

   Inquire


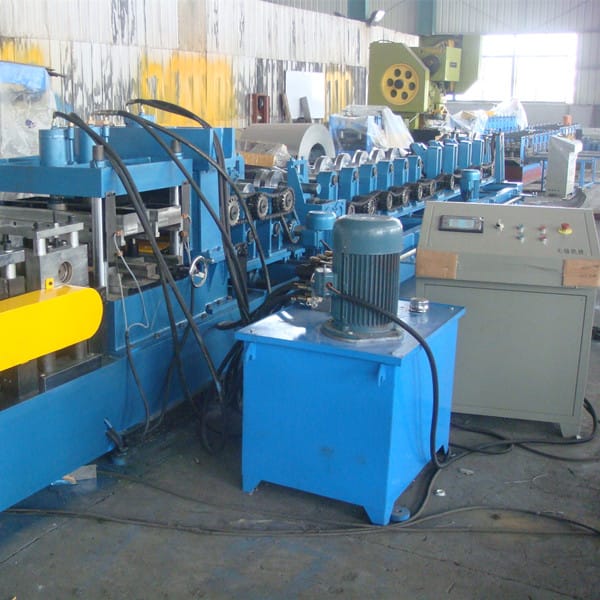

C Z Purlin Roll Forming Machine

A c purlin or z purlin is a horizontal beam or bar to provide structural support in buildings. Our purlin roll former can produce purlins of different sizes. C Z purlin Roll Forming Machine is also called Interchangeable purlin roll forming machine or z purlin making machine. In steel construction, the term purlin typically refers to roof framing members that span parallel to the building eave and support the roof decking or sheeting. The steel of c purlins are in turn supported by rafters or walls. So pre-punched purlins are quick to install and suitable for both insulated and uninsulated roofs and walls. The thickness and height of the purlin selected depend on span length and loads.

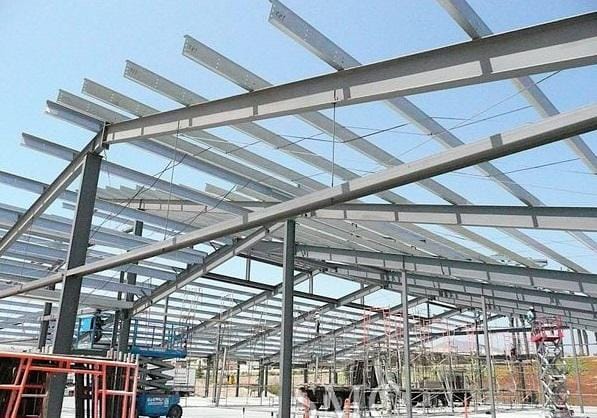

Applications of c & z purlin:

  1. Industrial construction

  2. Hall and warehouse construction

  3. Extension construction and renovation

  4. Agricultural projects

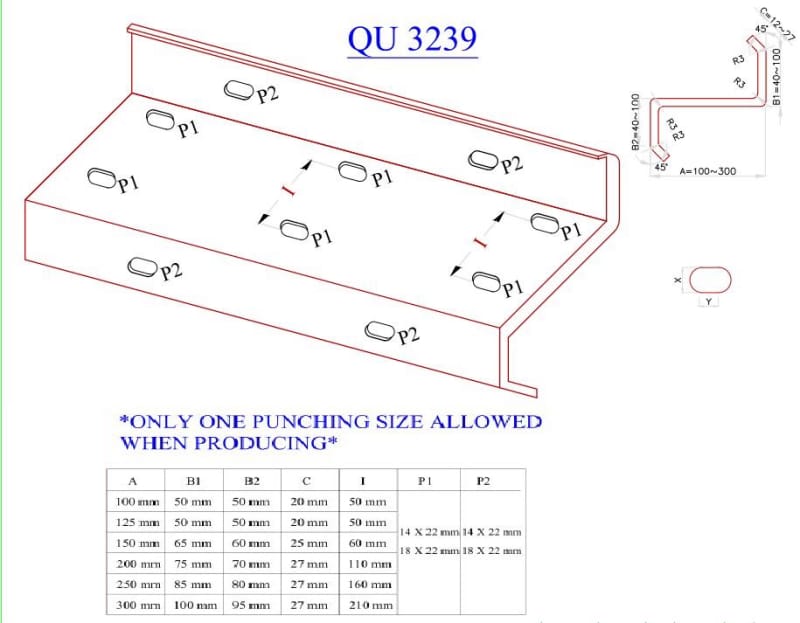

The size we can do:

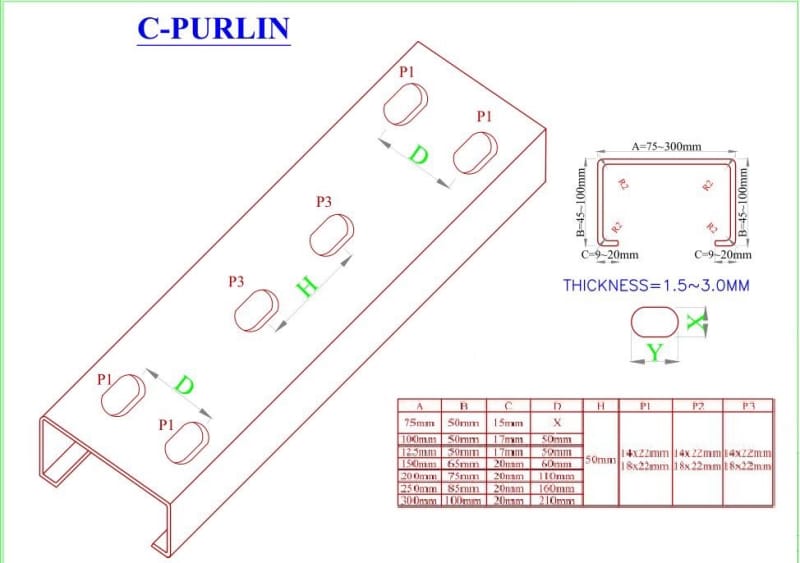

Some pictures for you reference:


The Parameters of CZ Purlin Roll Forming Machine

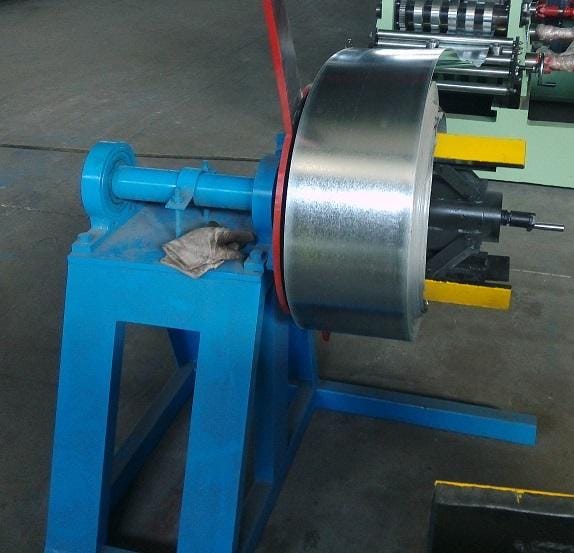

Manual un-coiler System

Loading capacity: 5T;

Uncoiling width: 500mm ;

Inner diameter: 450-550mm


Entry Beach

Specification:Usage: Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

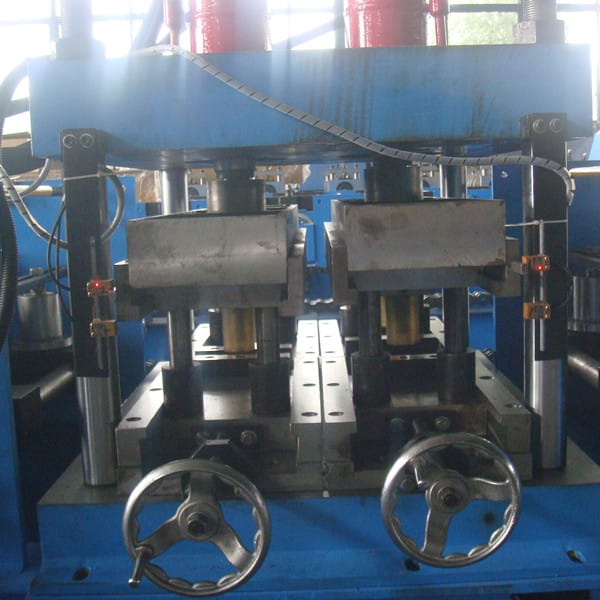

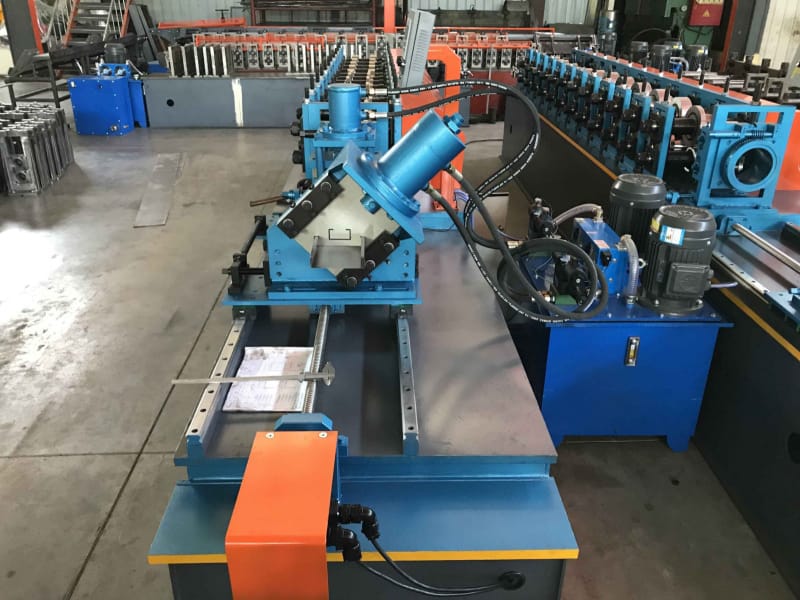

Shearing Mechanism and punching (include cutting tools, hydraulic tank, cutter machine)

1)Feature : Ensure stability, precision and cutting speed; Function : Automatic cutting controlled by PLC; Material of blades: Gcr12MoV quenched;

2)Power supply : hydraulic power;

3)Frame : Pillar style with rack & pinion system;4)Stroke switch : non-contact photoelectric switch

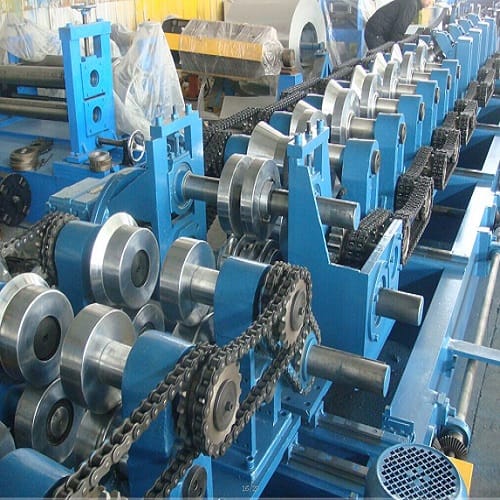

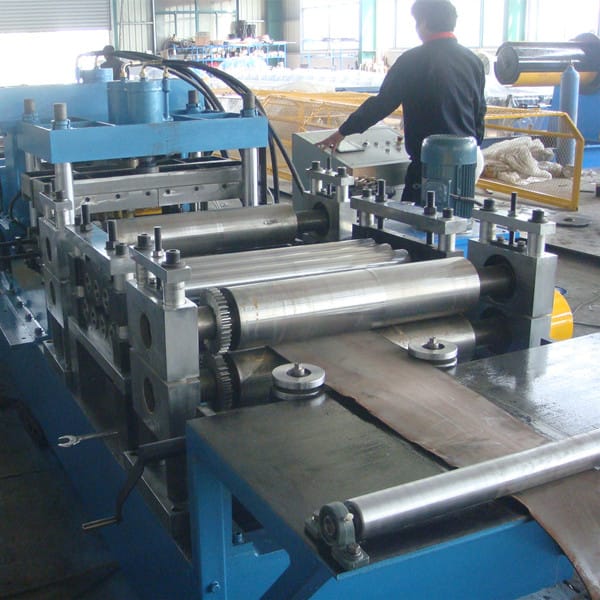

Main Roll Forming System for C Z Purlin Roll Forming Machine

1)Number of forming steps:12stations;

2)Shaft material:45# steel Outer diameter:80mm ;

3) Roller Material:Cr12MoV ;

4)Transport: chain ;

5)Forming speed:5-12m/min ;

6)Motor:15kw ;

7)Voltage:380v,50Hz,3 phase ;

8)Frame : middle plate welded ;

9)Dimensions:12000mm*1800mm*1600mm ;

10)Weight of machine: about 9ton

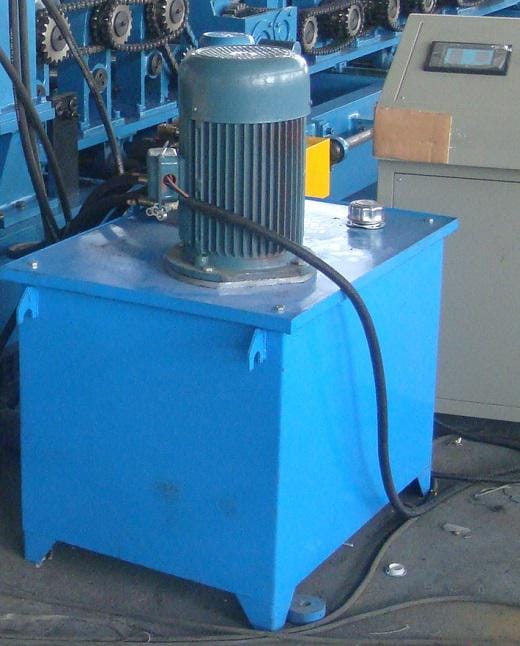

Hydraulic Station

1)Hydraulic motor Power: 5.5kw ;

2)Hydraulic oil: 46# (include a set of hydraulic tank , a set of hydraulic oil pump,two hydraulic pipes and two sets of electromagnetism valves )

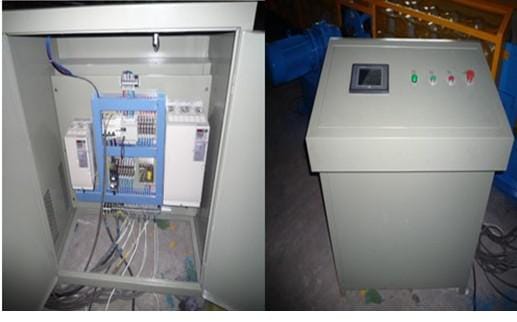

Electric Control System

1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Delta; 3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.
