Rolling shutter door is commonly used for garages, shops front show windows, etc.since they are quite strong and offer proper safety to the property. The door shutter works as a curtain,  providing adequate protection and safety against fire and thefts.In this way, a door is sufficiently strong andbring proper safety to glass and interiors when closed.

The rolling shutter door is made up of thin steel slabs called laths or slats about 1.25mm thick interlocked to each other and coiled upon specially designed pipe shaft drum mounted at the top. The roller shutter moves on two vertical steel guide channels installed at their ends. A horizontal shaft and spring in the drum allow the roller shutter to be coiled in or out. This door is capable of being rolled up at the top easily and causes no obstruction either in the opening or in floor space.

Advantages of Rolling Shutter Door:

The main advantage of rolling shutter is that it gives large opening which is not obstructed by any of the door mechanism, giving the user a wide open area.

It provides safety against fire and burglars.

It is easy to operate.

Mainly it is used in shops because it gives more floor space as it rolls, it doesn’t need space for panels to move and unfold.

For large size openings, its cost is comparatively very less as compared to wooden doors.

It is light weight unlike other panel doors and hence easy to operate and handle.

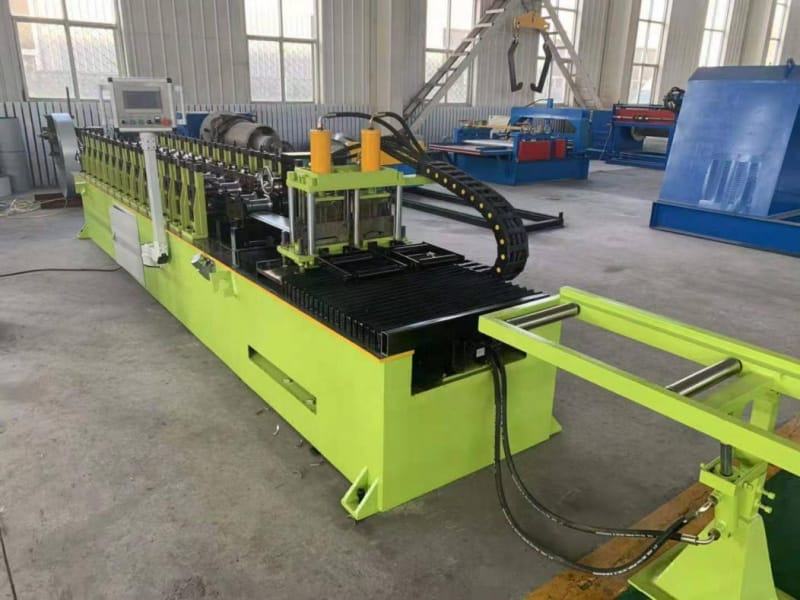

A good rolling shutter door needs to be make by quality rolling shutter door roll forming machine.

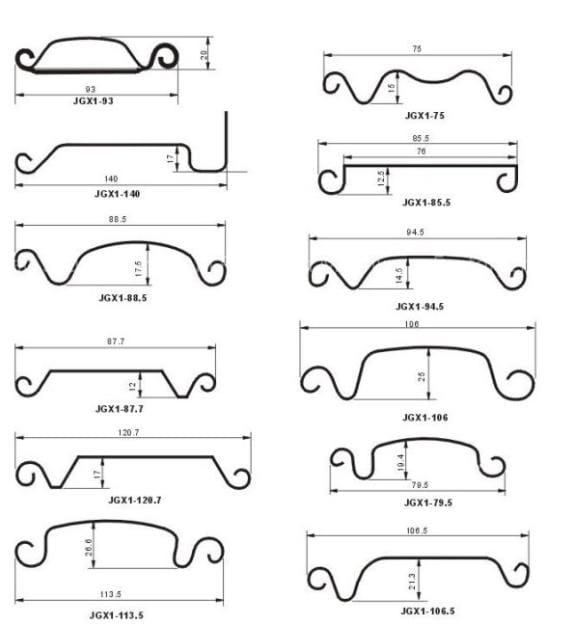

A rolling shutter door making machine is customized as a rolling shutter shutter slat profile, like below:

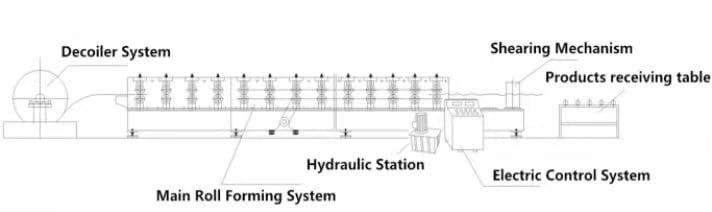

A rolling shutter roll forming machine work flow is like below:

    ZTRFM have been making cold roll forming machines for many years and know how to make the machines well. If you are in need of any machine, please feel free to contact us.
