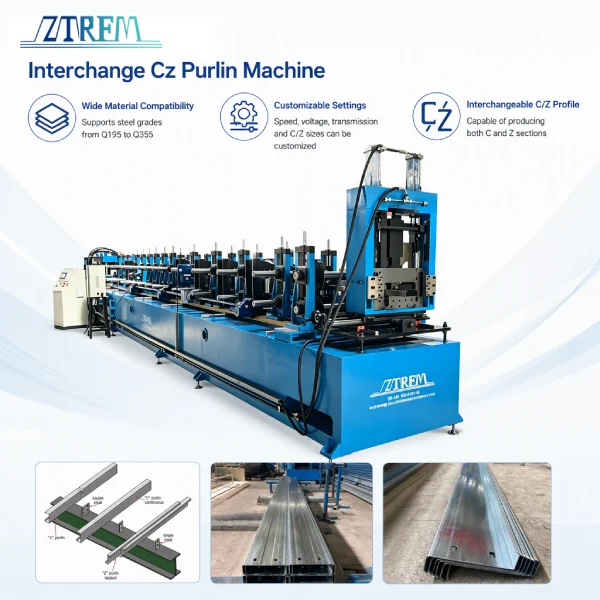

Interchange CZ Purlin Machine 11 kW Reliable Hydraulic System
‹ › On a CZ purlin production line, an interchange cz purlin machine needs to cut the steel strip to length after forming, and sometimes it needs inline punching. The hydraulic system drives the cutting and punching actions. If hydraulic power is insufficient or the action is unstable, the cut edge may be uneven and punching positions…
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content
On a CZ purlin production line, an interchange cz purlin machine needs to cut the steel strip to length after forming, and sometimes it needs inline punching. The hydraulic system drives the cutting and punching actions. If hydraulic power is insufficient or the action is unstable, the cut edge may be uneven and punching positions may deviate. The hydraulic station plays a key role in the machine's cutting and punching functions.
This interchange cz purlin machine uses a hydraulic station with 11 kW power, 46# hydraulic oil, and 300 L capacity. The hydraulic system drives the cut to length and punching actions. The following sections cover application scenarios, machine parameters, hydraulic station power, and hydraulic cutting and punching features.
Applications and Production Requirements
CZ purlins are used in agricultural greenhouse frames, steel structure workshops, solar mounting, and other scenarios. These scenarios share a common point: large purlin quantities and fast installation schedules. If the cut edge has burrs or length deviation, extra work may be needed on site.
Agricultural greenhouse frames are a typical application. Greenhouse construction cycles are short, and purlin demand is concentrated. The equipment needs to run continuously and stably, and cutting and punching actions should not fail frequently. For steel structure workshops, wall purlins and roof purlins are installed in batches, and cut edge quality affects installation efficiency. Solar mounting has requirements for purlin length and hole position consistency.
The hydraulic cutting and punching capability of a c/z purlin roll forming machine directly affects whether finished products can move smoothly into installation.
Technical Parameters
The parameter table for this interchange cz purlin machine provides the overall specifications of the machine in its current configuration.
| Parameter | Value |
|---|---|
| Materials processed | Galvanized coil / low carbon steel coil |
| Material yield strength | Q195 / Q235 / Q345 / Q355 |
| Material thickness | 1.0 to 3.0 mm |
| C purlin width | 80 to 300 mm |
| Z purlin width | 120 to 300 mm |
| Flange height | 30 to 100 mm |
| Lip length | 10 to 20 mm |
| Power supply | 380V 50Hz 3 phase (customizable) |
| Hydraulic station power | 11 kW |
| Hydraulic oil | 46# hydraulic oil |
| Hydraulic oil capacity | 300 L |
| Decoiler loading capacity | 5 tons maximum |
| Coil inner diameter | 450 to 550 mm |
| Complete line dimensions | about 22m x 2.0m x 2.0m |
| Complete line weight | about 15 tons |
| Length tolerance | 3000mm plus or minus 1.0mm |
These are the current specifications. Hydraulic station power 11 kW is the power parameter of the hydraulic system, not the total machine power. 46# hydraulic oil and 300 L capacity are the oil configuration of the current machine. This machine allows customization of speed, voltage, transmission method, and profile dimensions according to customer needs.
Hydraulic Station as Power Core
On this interchange cz purlin machine, the hydraulic station provides power for cutting and punching. After the steel strip is formed, the hydraulic system drives the cutting tool to complete cut to length. When punching is needed, the hydraulic system drives the punching die to complete the punching action.
The 11 kW hydraulic station power is the configuration of the current machine. This power supports normal operation of hydraulic cutting and punching. Specific performance depends on the hydraulic cylinder, valve group, and system design.
The current machine uses 46# hydraulic oil with 300 L capacity.
Hydraulic Cutting and Punching
On the interchange cz purlin machine, hydraulic cutting performs the cut when the steel strip reaches the set length and stops. The hydraulic drive provides a smooth cutting action. Hydraulic punching completes punching when the steel strip stops. The punching position is set by the control system, and the hydraulic drive pushes the punch to complete punching.
Hydraulic methods can offer advantages in noise and impact compared with mechanical clutches, but actual performance depends on the machine and operating conditions. Daily maintenance mainly involves checking oil level, oil quality, and hydraulic lines.
Machine Advantages
The hydraulic system on this cz steel purlin roll forming machine provides several practical benefits.
-
The hydraulic station provides independent power for cutting and punching.
-
Hydraulic cutting and punching run smoothly.
-
This interchange cz purlin machine supports C and Z purlin production for agricultural greenhouses and other scenarios.
-
Daily maintenance mainly involves checking oil level, oil quality, and lines.
These features help support stable production.
Conclusion
Agricultural greenhouse frames, steel structure workshops, and other scenarios all need large quantities of CZ purlins. Uneven cut edges or punching position deviation can increase on site installation work. The hydraulic system on this interchange cz purlin machine drives cutting and punching to support continuous CZ purlin production.
