Metal Ceiling Plate Roll Forming Machine
MetalCeilingPlateRollFormingMachineisdesignedformakingtheceilingplateproductioninbatchfullyautomatically.
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content
Metal Ceiling Plate Roll Forming Machine is designed for making the ceiling plate production in batch fully automatically.
Metal Ceiling Plate Roll Forming Machine drawing profile for your reference:

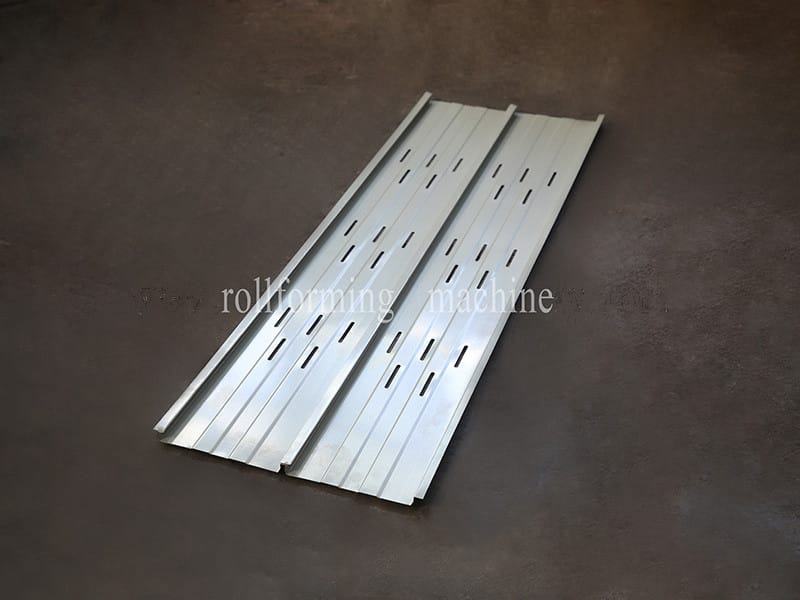

Finished product profile:

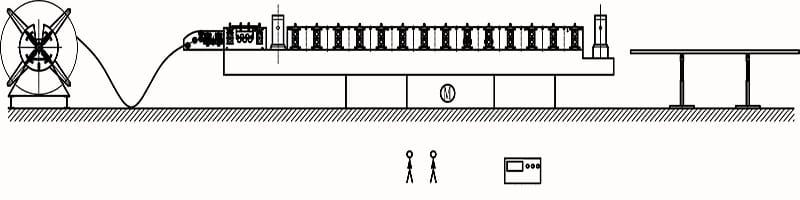

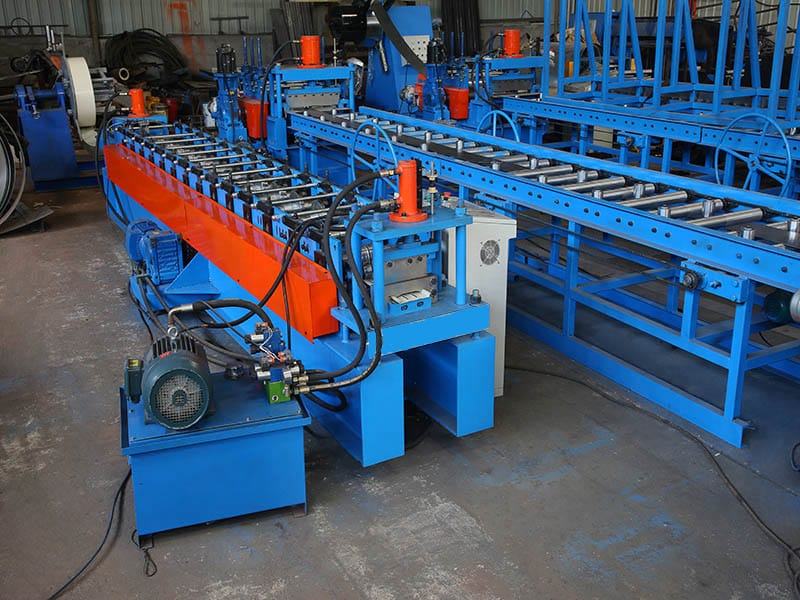

Based on the customer requirements and our experience, we design the Metal Ceiling Plate Roll Forming Machine like following picture:
Work Flow of Metal Ceiling Plate Roll Forming Machine
Decoiler→Feeding Guide Device→Hydraulic Pre-Punching Device→Rolling Forming System→Hydraulic Post Cutting→Exit Rack
The Metal Ceiling Plate Roll Forming Machine is composed by the following elements:

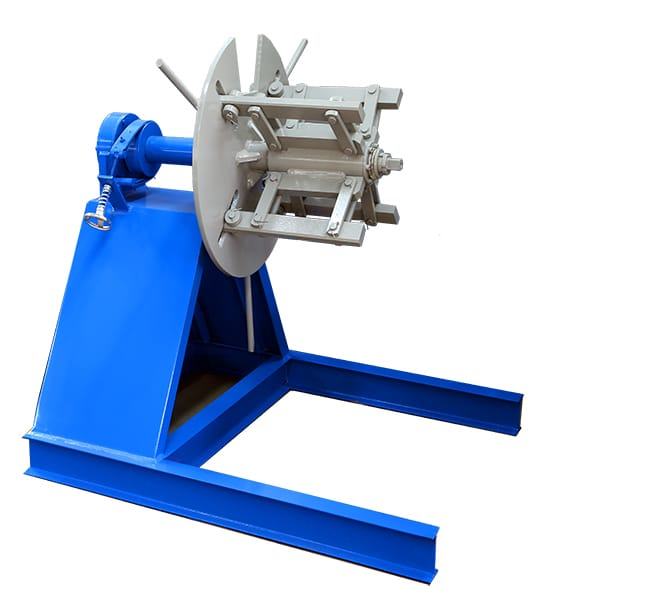

1.Manual Decoiler
Manual decoiler controls the steel coil inner bore shrinkage and stop, the Max feeding width is 30Omm,the Coil ID Range is 508±30mm,the Max capacity is3 ton.

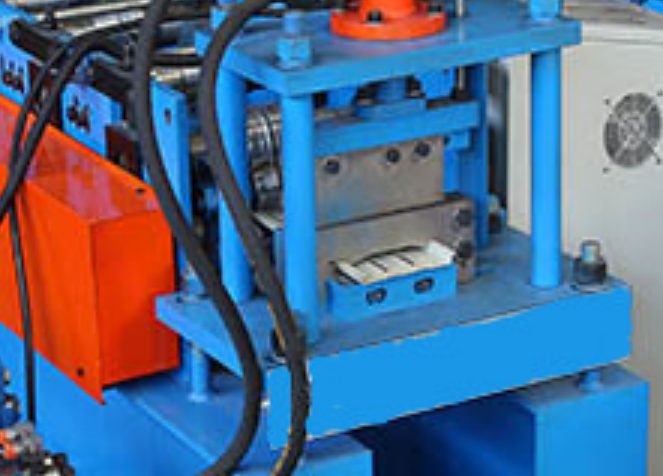

2.Feeding & Hydraulic Pre-Punching Device
With feeding material guide, body frame made from H400 type steel by welding,Pre-punching and post-cutting, use the same hydraulic system.The Hydraulic motor is 4KW,Hydraulic pressure range Is 16Mpa.The Punching and Cutting tool material is mold steel Cr12MoV.

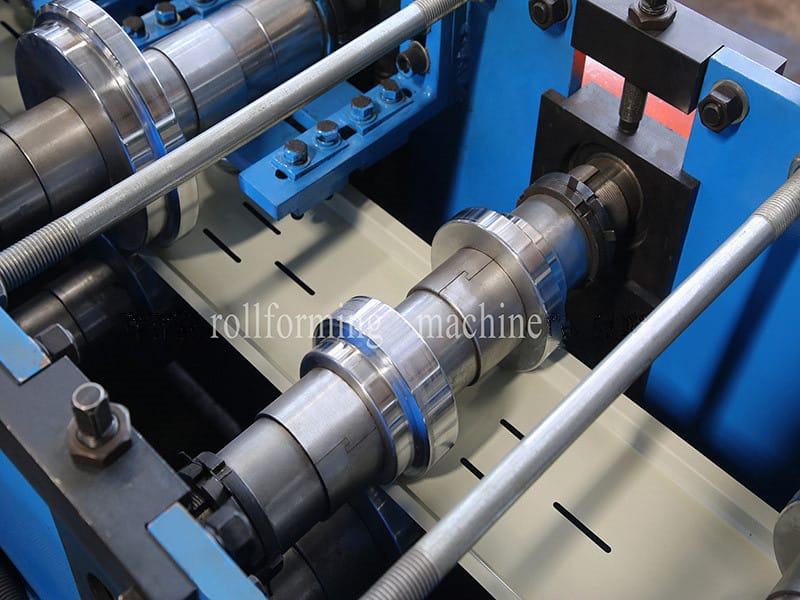

3.Main Machine
The Body frame is made from H400 type steel by welding, the Side wall thickness is Q235 t18mm
The Rollers is manufactured from 45# steel,with Heat Treatment and hard Chrome Coated with thickness 0.04mm,the Main Motor is 5.5KW.

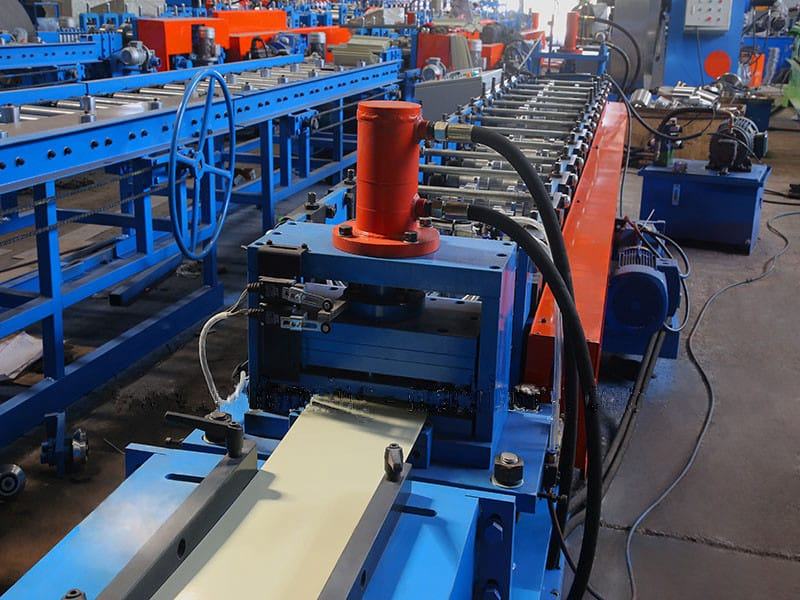

4.Post Hydraulic Cutting Device
The cutting device is Post to cut, stop to cutting, use Three pieces type of cutting blade design and no blanking.The Hydraulic motor is 4KW, The Cutting pressure is0-16Mpa and the Cutting tool material is Cr12MoV.

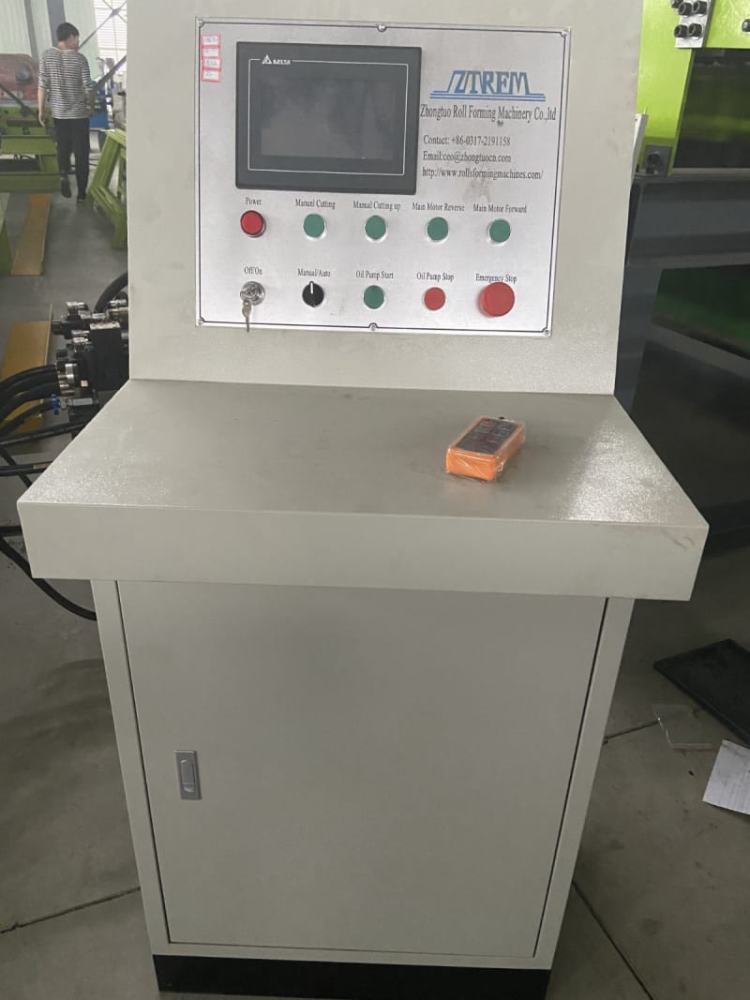

5. PLC operation system:
The PLC isControl The Quantity And Cutting Length Automatically.
