false ceiling, t bar suspended ceiling grid

false ceiling, t bar suspended ceiling gridfalse ceiling, t bar suspended ceiling grid- Raw materials : ZINC coating from 80 to 275 gram per square meter , also can use the stainless steel mirror or aluminum mirror .- Thickness : Form 0.25mm to 0.40mm - Dimension :Length : Main Tee up to 3.75 meters ,Cross Tee up to 1.22 meters ,Width : From 14mm to 24mm and Hight from 24mm to 38mm .We can produce any size to meet and install your ceiling .- Colour : The surface is white , but also can be stainless steel mirror and aluminum mirror .false ceiling, t bar suspended ceiling grid Picturesfalse ceiling, t bar suspended ceiling grid Flat Tee Grid SpecificationsItemDescriptionWidth (mm)Hight (mm)Thi...

   Inquire


false ceiling, t bar suspended ceiling grid

 false ceiling, t bar suspended ceiling grid

- Raw materials : ZINC coating from 80 to 275 gram per square meter , also can use  the stainless steel mirror or aluminum mirror .

- Thickness : Form 0.25mm to 0.40mm

- Dimension :

Length : Main Tee up to 3.75 meters ,Cross Tee up to 1.22 meters ,

 Width : From 14mm to 24mm and Hight from 24mm to 38mm .

 We can produce any size to meet and install your ceiling .

 - Colour : The surface is white , but also can be stainless steel mirror and aluminum mirror .

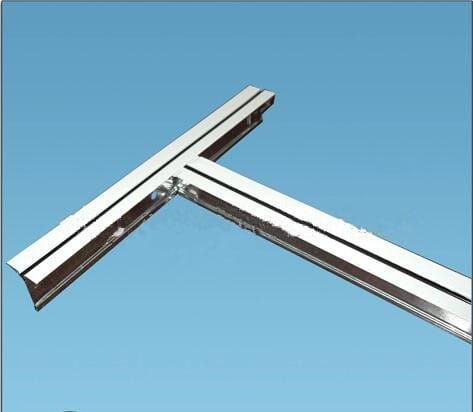

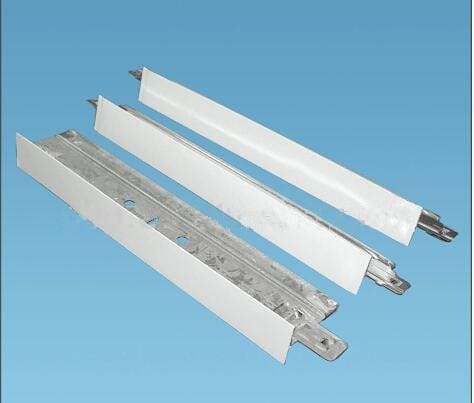

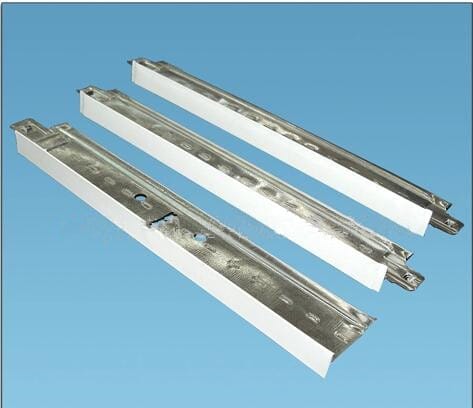

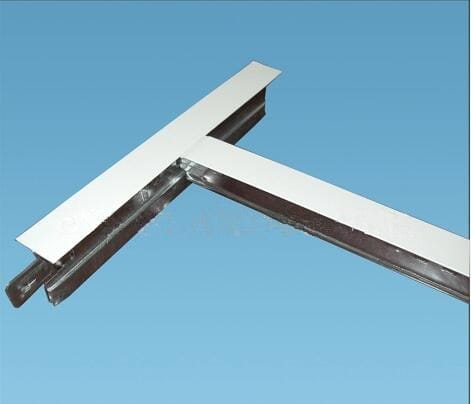

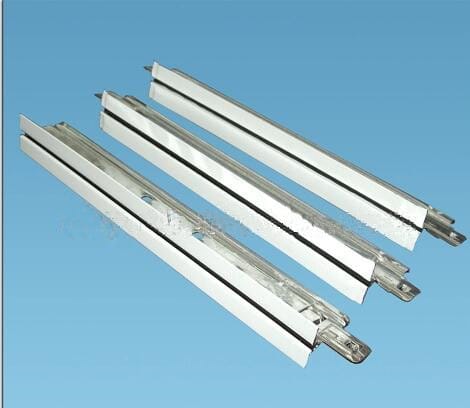

false ceiling, t bar suspended ceiling grid Pictures

false ceiling, t bar suspended ceiling grid Flat Tee Grid Specifications



Item

Description

Width (mm)

Hight (mm)

Thickness (mm)

Length

1

T24 MAIN TEE

24

38

0.25~0.40mm

up to 3.75m

32

28

26

24

T24 CROSS TEE

24

38

0.25~0.40mm

up to 1.22m

32

28

26

24

2

T15 MAIN TEE

15

38

0.25~0.40mm

up to 3.75m

32

28

26

T15 CROSS TEE

15

38

0.25~0.40mm

up to 1.22m

32

28

26

3

T14 MAIN TEE

14

32

0.25~0.40mm

up to 3.75m

28

24

T14 CROSS TEE

14

32

0.25~0.40mm

up to 1.22m

28

24

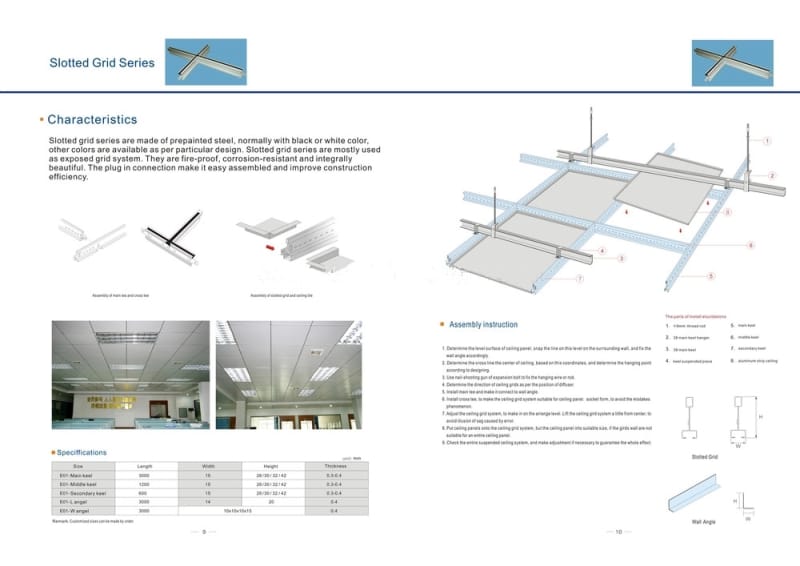

false ceiling, t bar suspended ceiling grid slotted  Tee Grid Specifications



Item

Description

Width (mm)

Hight (mm)

Thickness (mm)

Length

1

U15 MAIN TEE WITH 8mm GAP

15

42

0.25~0.40

up to 3.75m

32

26

U15 MAIN TEE WITH 8mm GAP

15

42

0.25~0.40

up to 1.22m

32

26

2

U15 MAIN TEE WITH 5mm GAP

15

30

0.25~0.40

up to 3.75m

25

U15 MAIN TEE WITH 5mm GAP

15

30

0.25~0.40

up to 1.22m

25
