Automatic Synchronous Punching and Cutting U Channel Roll Forming Machine
With the steady development of the economy, there are an increasing number of large commercial buildings and high rise residential projects, and the demand for Katz Bridging Bar has also grown signifi...
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content

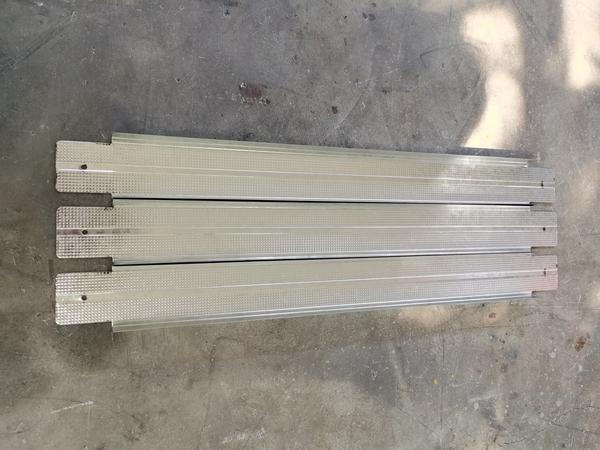

With the steady development of the economy, there are an increasing number of large commercial buildings and high rise residential projects, and the demand for Katz Bridging Bar has also grown significantly. As a modern upgraded product, Katz Bridging Bar is mainly applied to the light steel keel frame system (such as walls, ceilings, etc.), and is an ideal alternative to traditional solid blocking.
In practical applications, the Katz Bridging Bar effectively prevents vertical studs from twisting, rotating or lateral displacement when subjected to force by connecting multiple upright columns laterally. This significantly enhances the structural stability and load-bearing capacity of the entire steel frame system. Therefore, it is widely used in various construction projects such as office buildings, hotels, and large shopping malls.

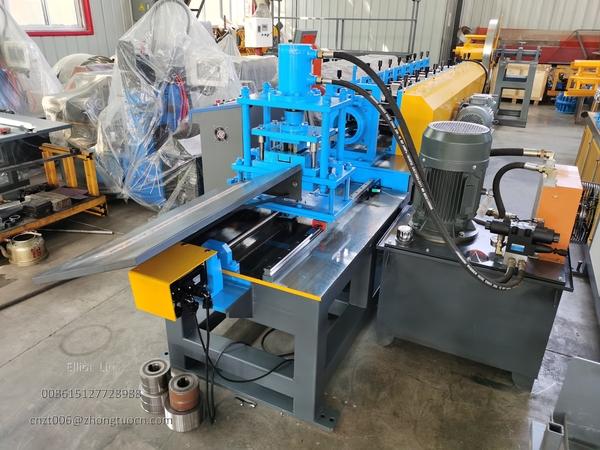

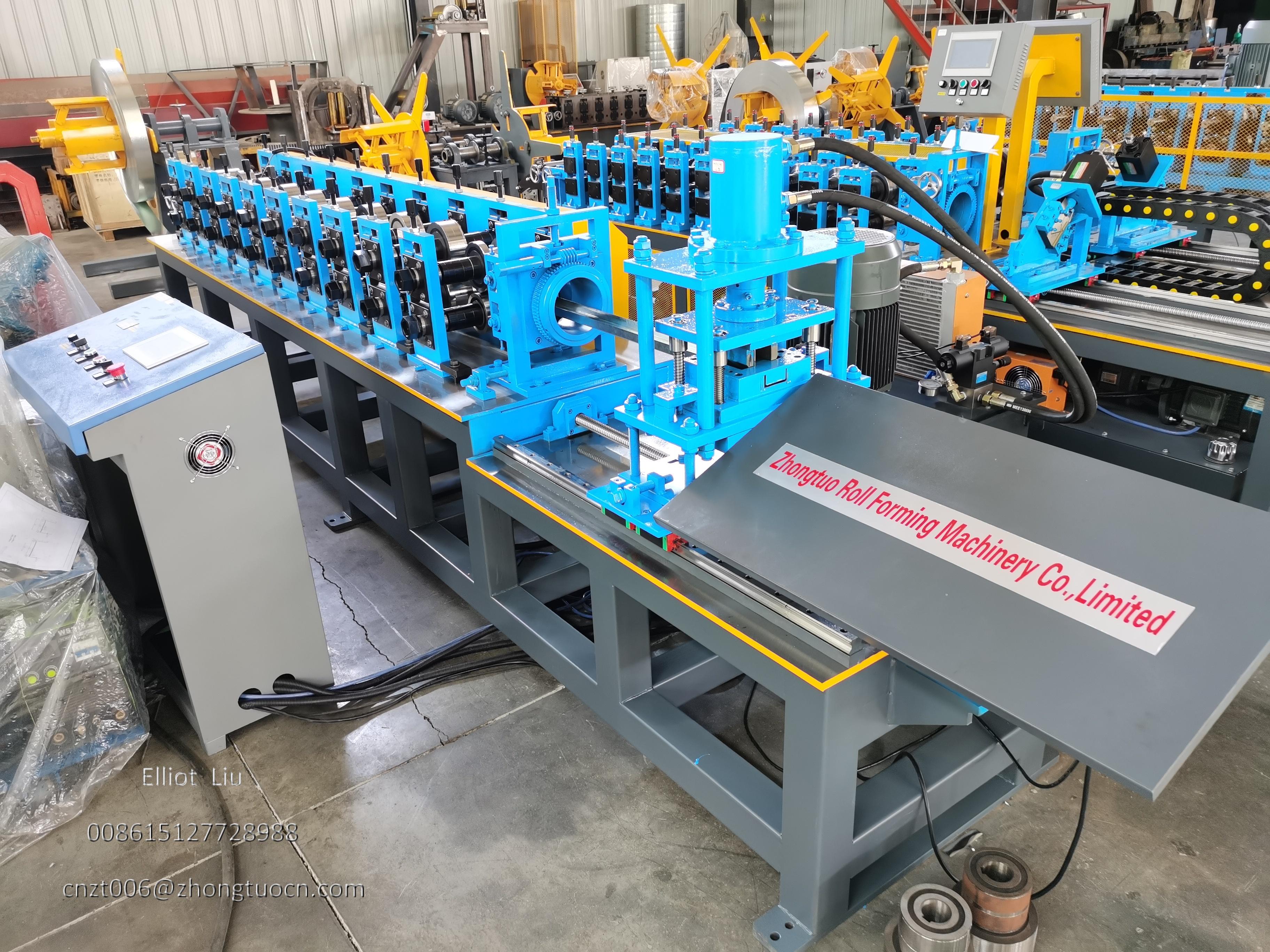

OurU-channel roll forming machineis specifically designed for manufacturing Katz Bridging Bars.
Why Choose Our Machine
1. Flexible size adjustment method

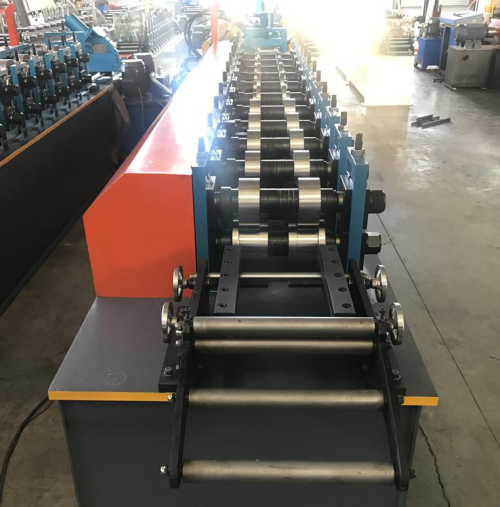

We use roller spacers to adjust the size of the profiles, eliminating the need for frequent replacement of the rollers and enabling quick switching between different product specifications.
2. High hardness, long-lasting rollers and shafts
The rollers are made of GCr12 material, whilethe shafts are made from 45# steel with quenching and tempering treatment. The roller surface has undergone polishing, hard plating and heat treatment, which not only ensures wear resistance but also maintains good precision.
3. Automatic synchronous punching and cutting

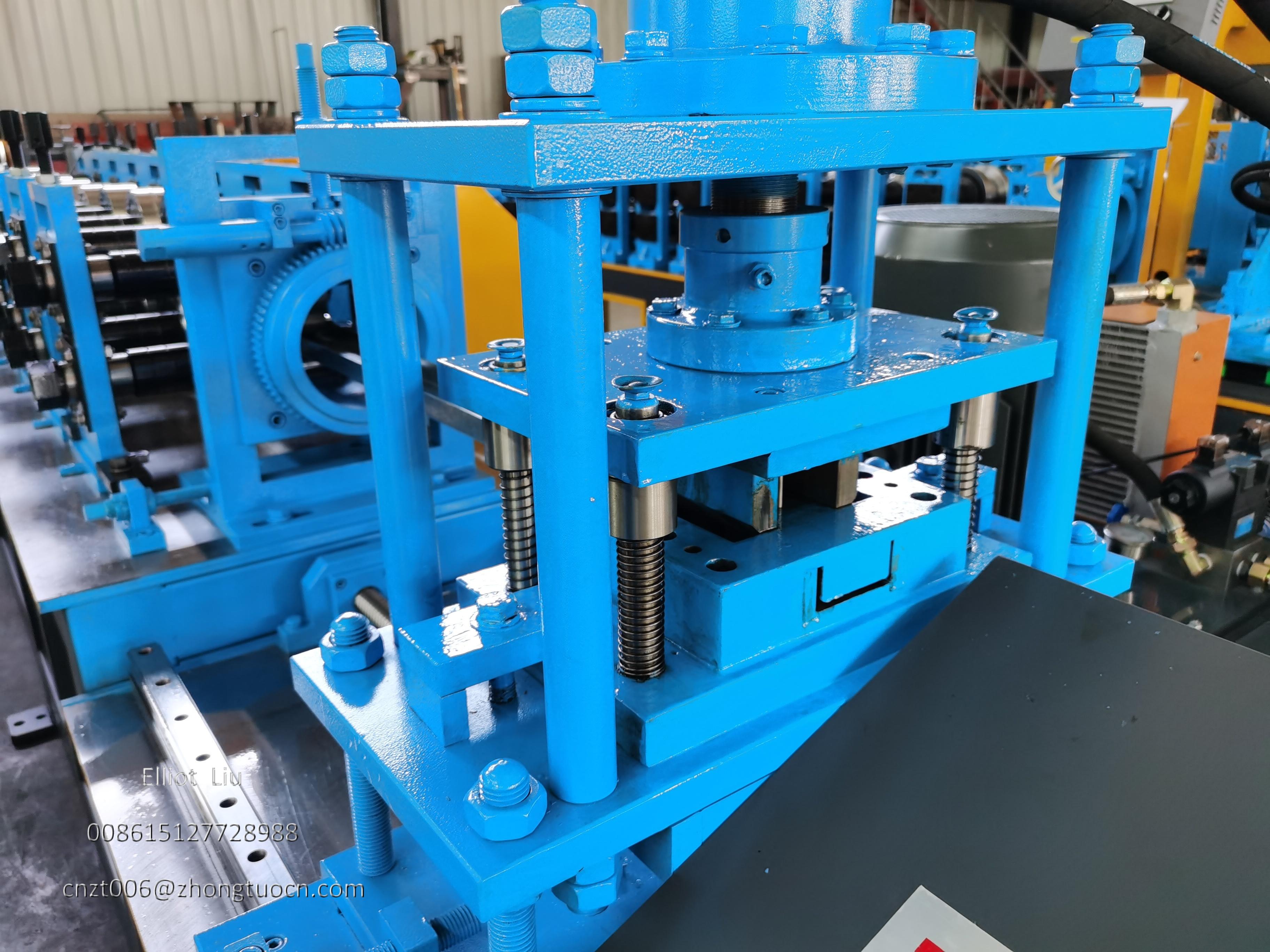

The hydraulic station controlled by PLC can automatically adjust the position according to the speed of the forming machine. the machine synchronizes punching and cutting can be synchronized without reducing speed, avoiding production line stops.

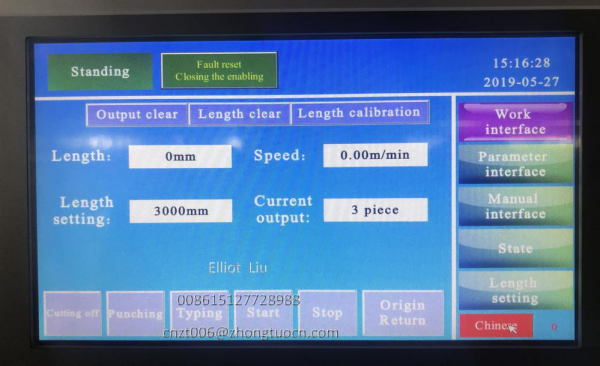

4. Chinese-English touch screen + button dual operation panel
You can set the length and quantity arbitrarily, and the operation is very intuitive. At the same time, we also retain physical buttons to facilitate different usage habits or emergency situations.
5. Local embossing function for Rollers

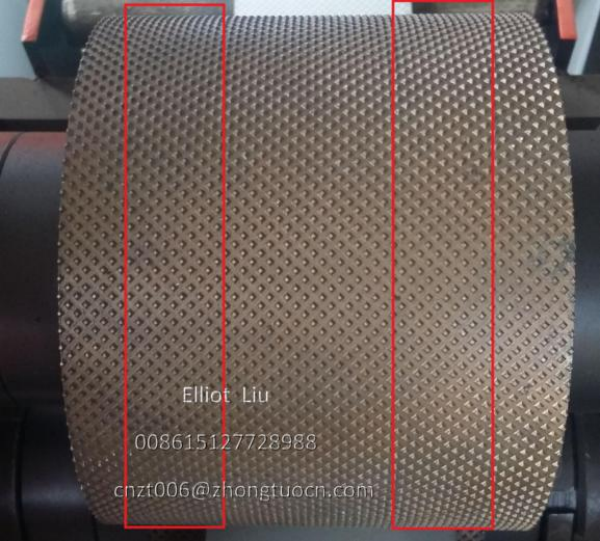

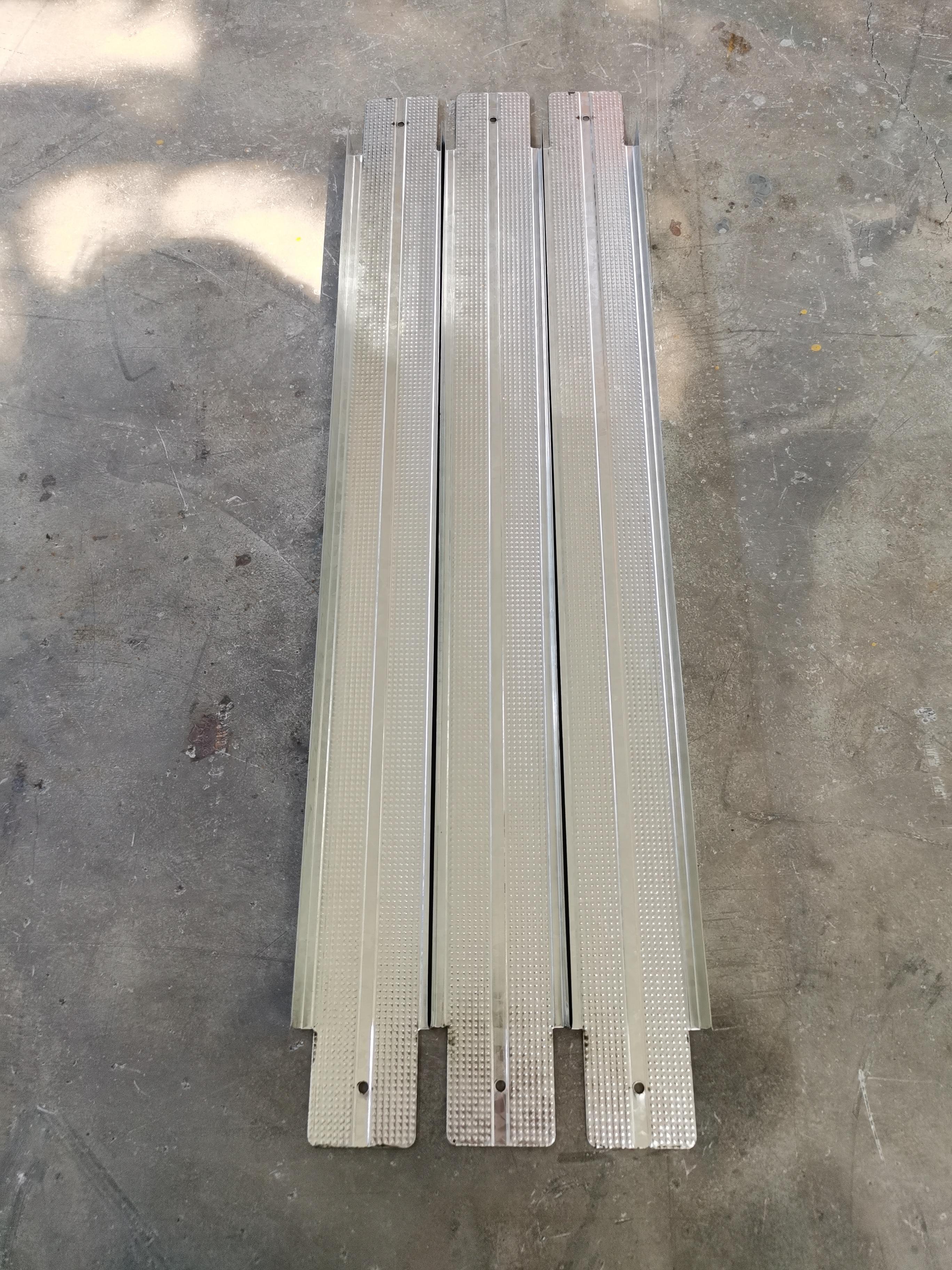

Rollers have the function to form knurl pattern, the knurl pattern just on the web, not in the whole piece.
Important parameters
| Item | Parameters |
|---|---|
| Raw material | galvanized steel |
| Material thickness | 0.35-0.45mm |
| Profile width | 63.5mm and 92mm |

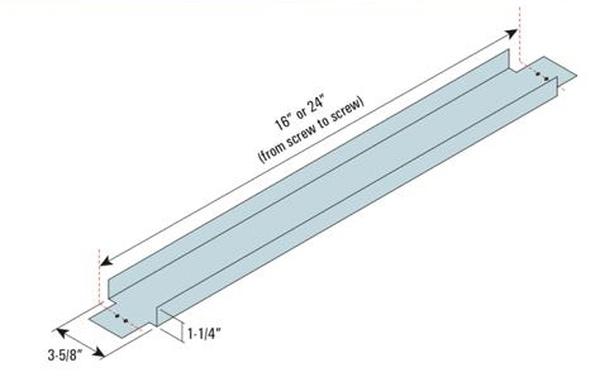

| Profile length | 406mm and 610mm |
| Voltage | 480 v 60 hz 3 phase |
| Weight of machine | about 5.5 tons |
| Working space | about 12 m x 2.0 m x 1.5m |
| Working speed | 0-15 m per minute with punching and shearing |
How do machines work?

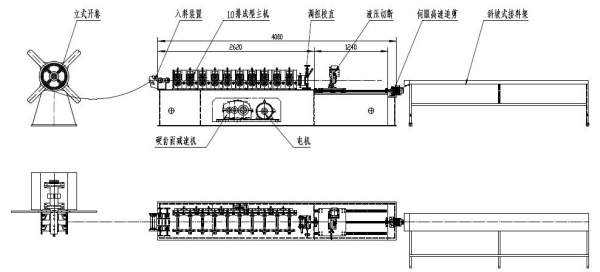

Working flow:
Machine components
| No. | Component Name | Quantity |
|---|---|---|
| 1 | Manual decoiler | 1 set |
| 2 | Main roll forming machine | 1 set |
| 3 | Manual receiving table | 1 set |
| 4 | Hydraulic station | 1 set |
| 5 | Control computer | 1 set |
| 6 | Maintain tools | 1 set |
| 7 | Operation manual | 1 book |
| 8 | Spare parts | as so on |
Application fields

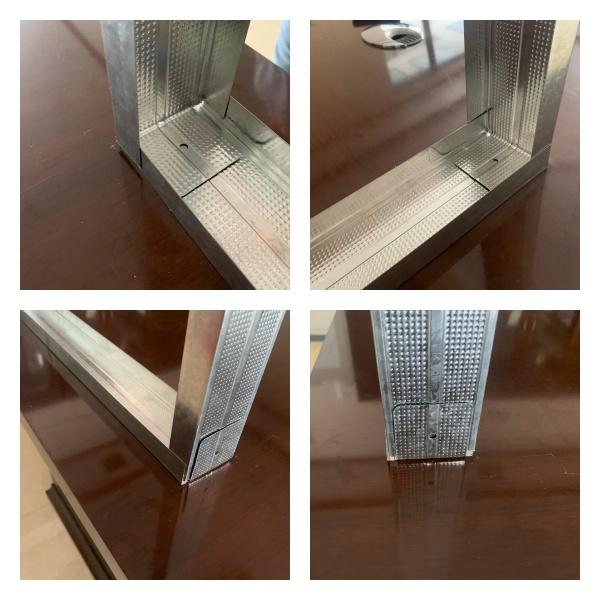

Commercial building partition walls: Large hollow partition walls in office buildings and shopping malls, due to their high ceilings, must use bridging strips to ensure the straightness of the vertical columns.
External cladding system: In the metal framework of the exterior wall, bridging strips are used to resist the thrust caused by external wind pressure.
Ceiling and ceiling grid: In some complex ceiling systems, similar horizontal supporting strips are also used to fix the main trusses.
