In the cold bending forming industry, the durability and accuracy of the machine depends on the selection of core components. Many low-priced machines use ordinary bearing steel and chain drive, resulting in rapid mold wear and high noise. This article, based on the latest technical specification sheet, provides an in-depth analysis of the core configuration of our Main Tee, Cross Tee, and Wall Angle production lines.

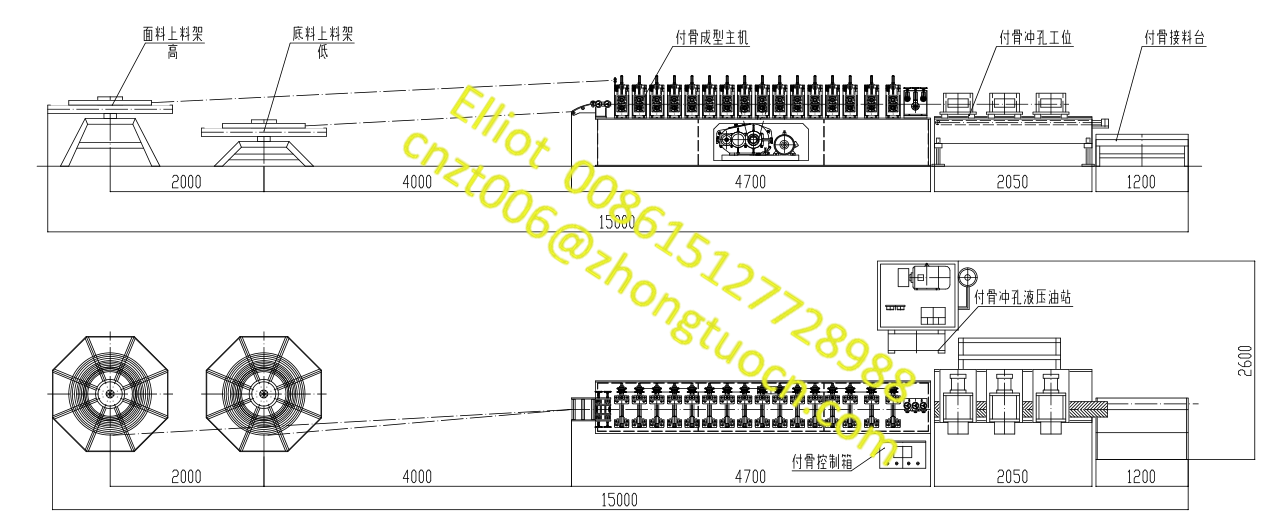

1. Machine Working Principle
Ourceiling truss production linefollows the standardcold bending forming process, which is mainly divided into four stages:
Uncoiling: Raw materials (galvanized steel coils) are placed on the decoiler and guided into the feed port by manual operation.
Feeding and Guidance: The feeding table ensures the sheet is flat and enters without deviation.
Cold Bending Forming: This is the core stage. The motor drives the chain, which in turn drives the main shaft, and the main shaft drives the rolls to gradually bend the flat steel plate into a T-shaped section.
Fixed-Length Cutting: When the product reaches the set length, the PLC sends a signal, and the hydraulic system drives the cutting mold to perform "flight cutting" (following cutting), ensuring that the machine does not stop during cutting and the cut edge does not deform.
2. Hydraulic and Electrical Systems

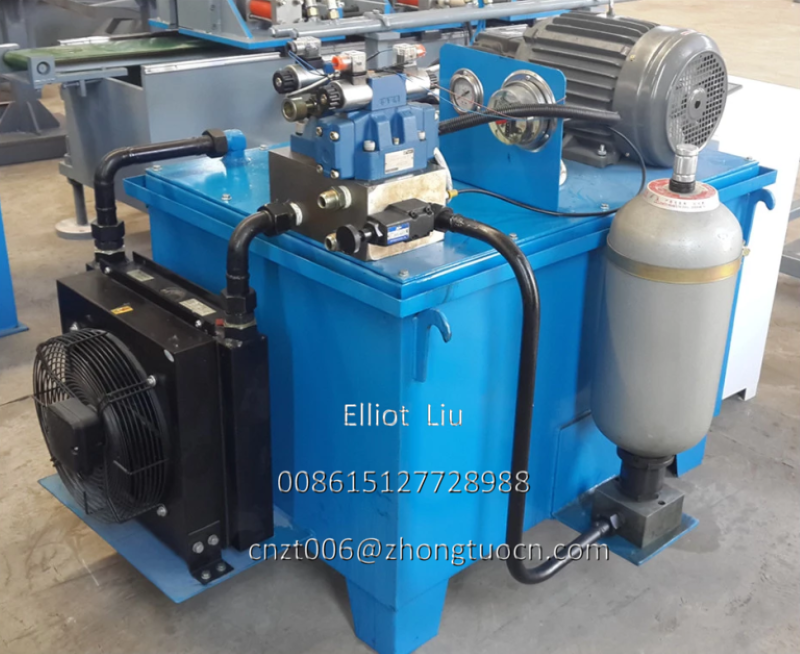

Main T Hydraulic Station:Controlled by a gear wheel oil pump, with motor power of 3kW + 7.5kW.
Key Features:The high-power hydraulic system ensures instantaneous cutting capability during high-speed operation, with smooth cuts free of burrs.
Control System:PLC, transducer, and touch panel are integrated.
Key Features:Ensures high speed with stability, precision, and longevity.
3. Core Technical Parameters Table
| Parameter | Main T Roll Forming Machine | Cross T Roll Forming Machine | Wall Angle Roll Forming Machine |
|---|---|---|---|
| Forming Stations | 18 Stations | 16 Stations | --- |
| Motor Power | 4 kW | 4 kW | 3.0 kW |
| Forming Speed | 0 - 25 m/min | 0 - 25 m/min | 0 - 40 m/min |
| Shaft Material | 45# Steel (Quenched) | 45# Steel (Quenched) | 45# Steel (Tempered) |
| Shaft Diameter | Φ40 mm | Φ40 mm | Φ40 mm |
| Cutting Method | Servo Tracking Cutting | Hydraulic Following Cutting | Auto Cutting (Electric Control) |

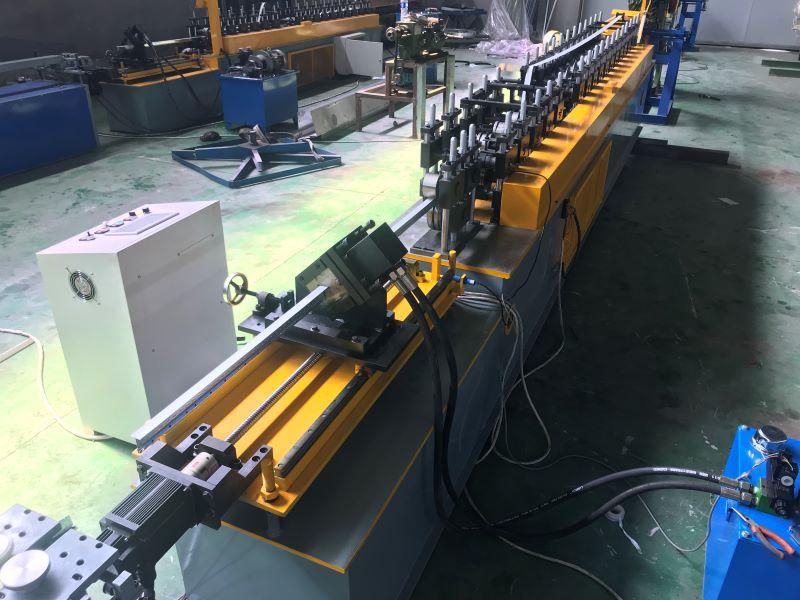

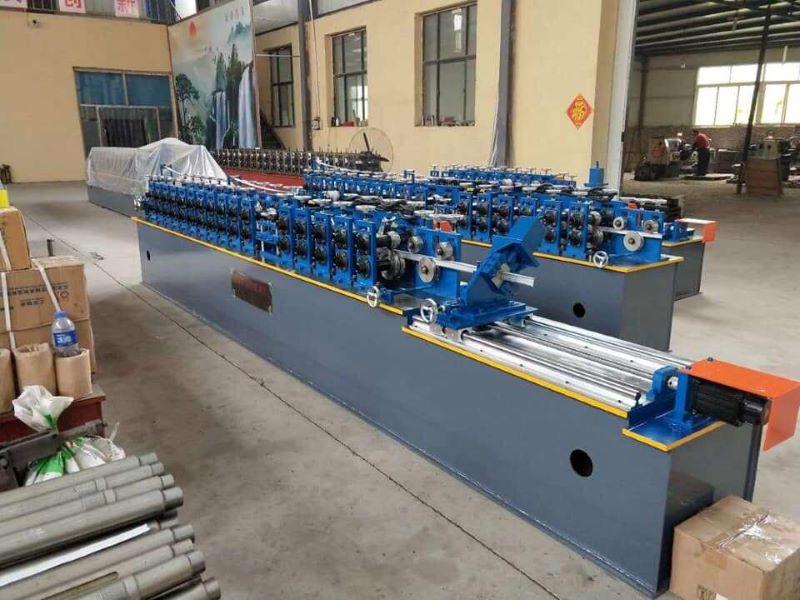

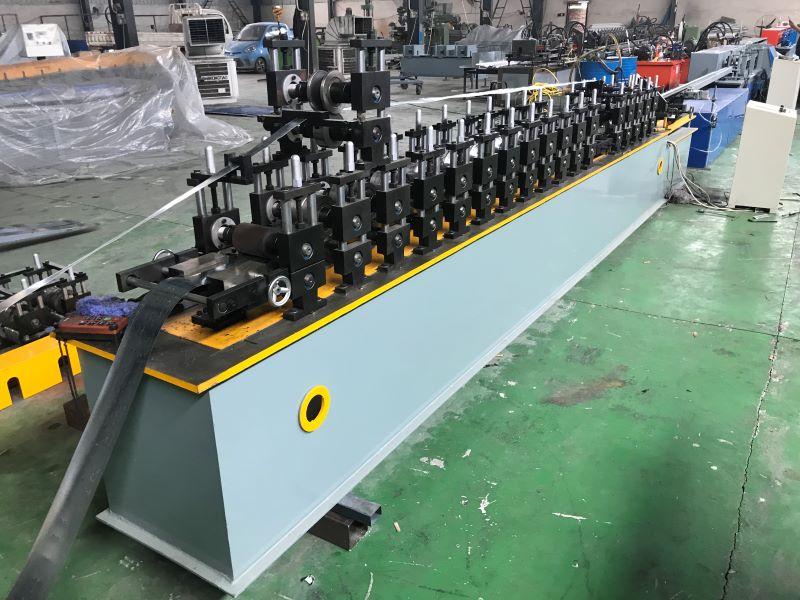

4.Product Display
5. Summary
We not only providetechnical parametersbut also deliver "heavy industry grade"durability. From the45# steel quenched and tempered spindleto theCr12 vacuum heat-treated rolls, every parameter reflects a commitment to the machine'slifespan.
