In moderncommercial buildingsandresidential renovations, thelight steel frame ceiling systemhas become the market leader due to its convenient installation andfireproof,moisture-proofcharacteristics. However, manymanufacturersare facing a challenge: the three sets of equipment (Main T,Cross T, andWall Angle) they purchase come from different manufacturers, resulting in mismatchedproduct dimensionsandinstallation hiccups. This article will introduce a fully integratedceiling frame production linesolution to help you producehigh-precision ceiling systems.
1. Industry Background: Why "Systematization" is Key?
According to the latestarchitectural decoration trends,prefabricated interior decorationis booming.Contractorsare no longer satisfied with a single type offrame productand need a perfect combination of "main framefor bearing weight,secondary framefor networking, andwall anglefor edge finishing".
Problem:CommonCross Teeson the market often fail to form precisely, resulting in looseinterlockingwith theMain T.
Trend:A system from the sameproduction linecan ensure that theinterlocking gapbetween themain frameand thesecondary frameis controlled at themillimeter level, significantly improvingconstruction efficiency.

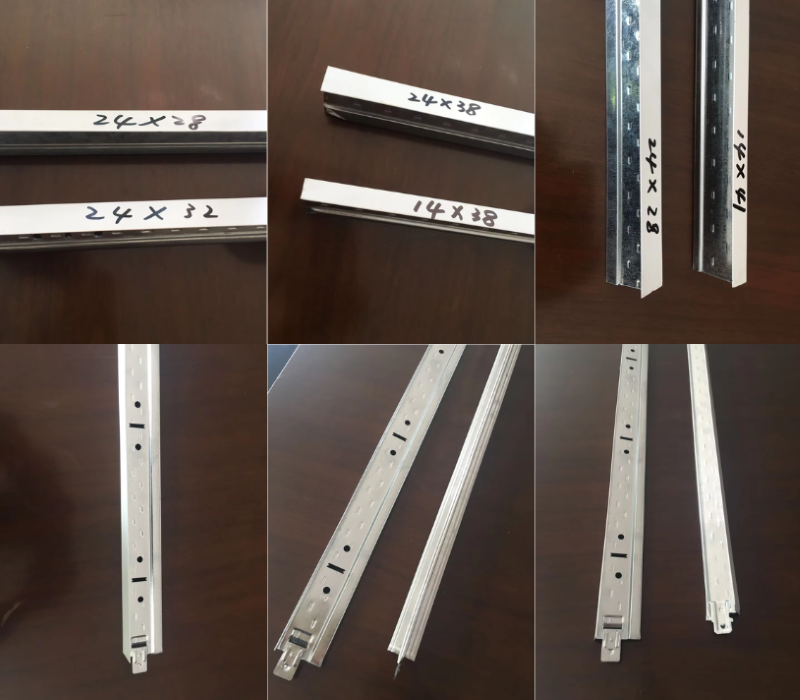

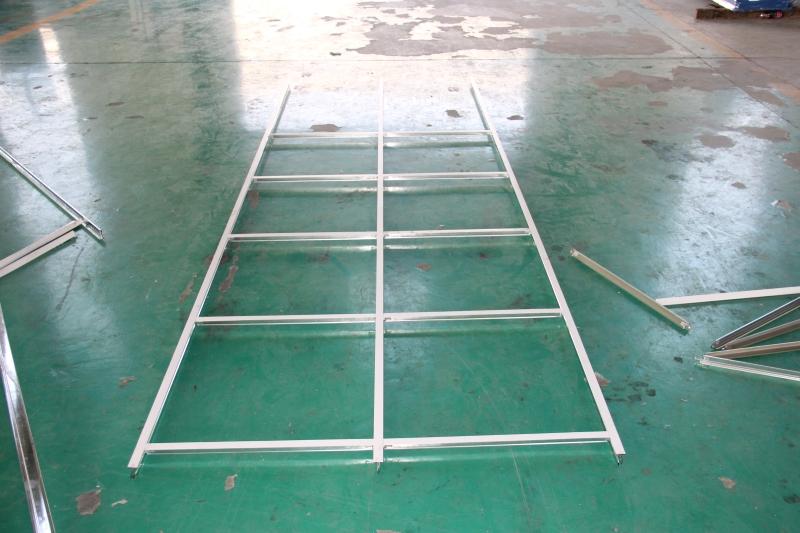

2. Finished Product Application: What Do These Three Machines Produce?
This solution includes three independentproduction lines, corresponding to the three core components of theceiling system:
Main Tee:Specifications38x24mm. As the "backbone" of the ceiling, it bears the main load.
Cross Tee:Specifications26x24mm. The largest quantity, used to construct the grid and connect the main frame.
Wall Angle:Specifications22x22mm. Used for edge finishing, determining the aesthetic appearance of the ceiling edge.
3. Core Technical Parameters Table
Table
| Parameter | Main T Roll Forming Machine | Cross T Roll Forming Machine | Wall Angle Roll Forming Machine |
|---|---|---|---|
| Forming Stations | 18 Stations | 16 Stations | --- |
| Motor Power | 4 kW | 4 kW | 3.0 kW |
| Forming Speed | 0 - 25 m/min | 0 - 25 m/min | 0 - 40 m/min |
| Shaft Material | 45# Steel (Quenched) | 45# Steel (Quenched) | 45# Steel (Tempered) |
| Shaft Diameter | Φ40 mm | Φ40 mm | Φ40 mm |
| Cutting Method | Servo Tracking Cutting | Hydraulic Following Cutting | Auto Cutting (Electric Control) |
4. Core Advantages: Why Choose This Set-Up?
Perfect Compatibility:The three machines were designed withcomponent alignment tolerancesin mind from the outset, ensuring that thefinished productscan be easily installed with a "click" sound.
High Output Efficiency:

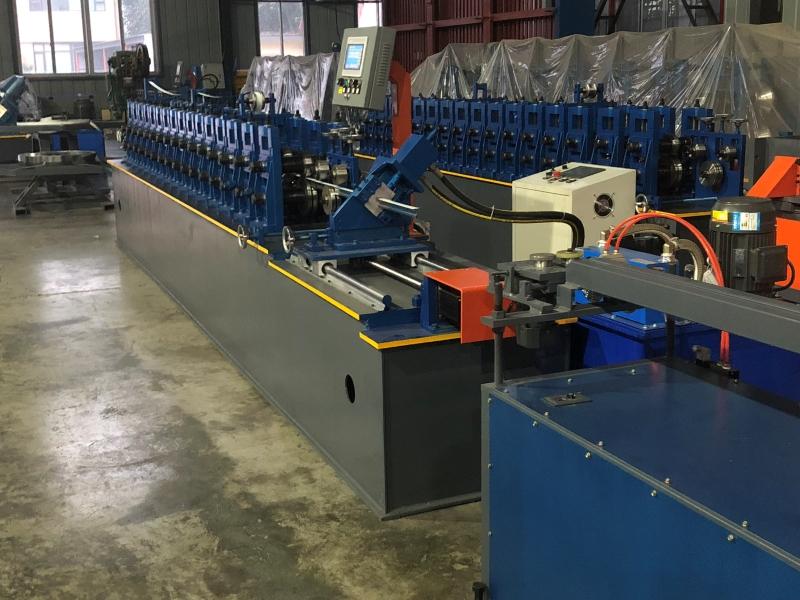

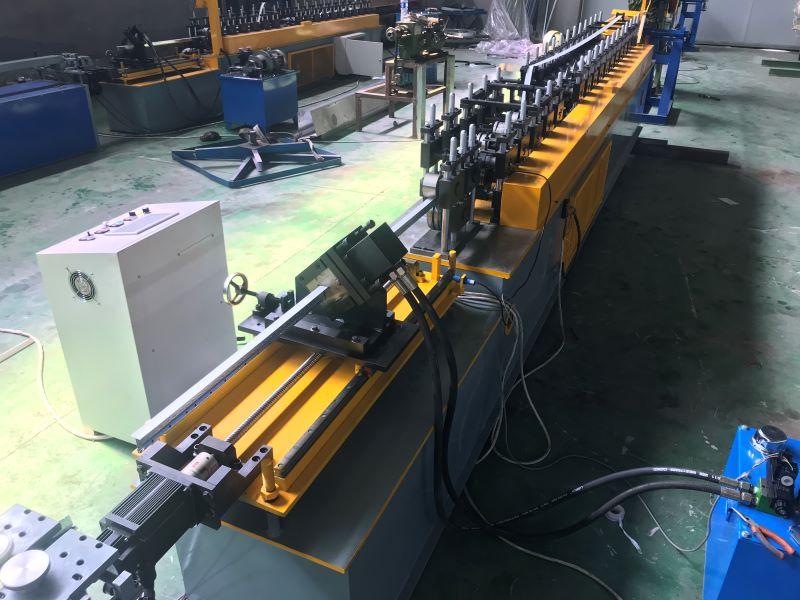

Main T Roll Forming MachineSpeed:0 - 25 meters per minute.
Wall Angle Roll Forming MachineSpeed:0 - 40 meters per minute.
Cross T Roll Forming MachineSpeed:0 - 25 meters per minute.

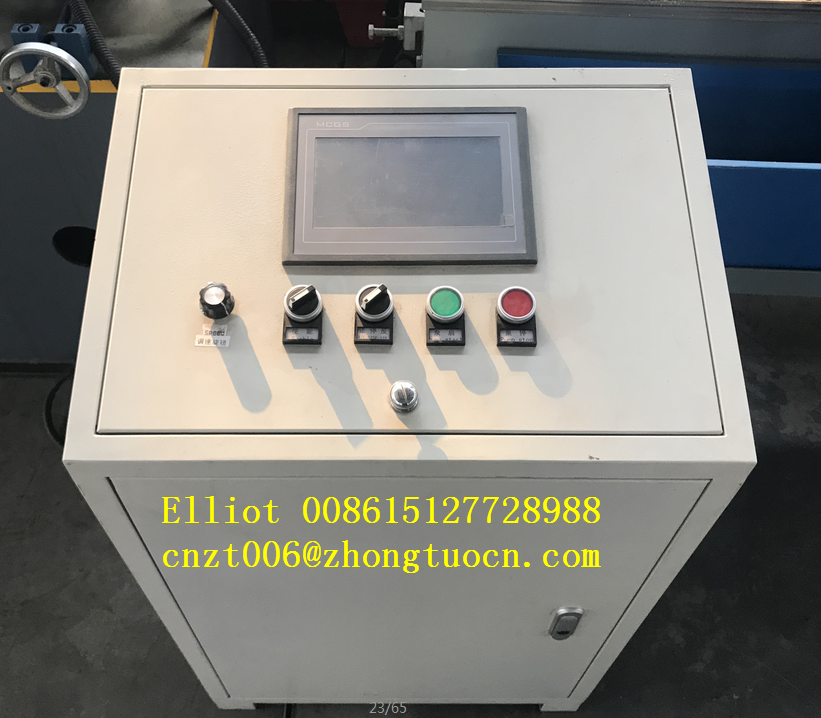

High Automation Level:The entire line is controlled byPLC computers, supportingautomatic fixed-length cutting, with thelength tolerancecontrolled within±1.0mm, far exceedingindustry standards.
5. Customer Cases and Application Scenarios
If you purchase this equipment, you can serve the following scenarios:
Large shopping mallsandoffice buildings: Producing standardmineral wool board ceiling trusses.
Hospitalsandschools: Producingmetal ceiling trusseswith high cleanliness requirements.
Residential decoration: Providingcustom-length trussesto reduceon-site cutting waste.
