Stud and Track
Stud and track for ceiling and drywall profile galvanized light steel keel
Stud and track for ceiling and drywall profile galvanized light steel keelproduct nameStud and track for ceiling and drywall profile galvanized light steel keeltextureGalvanized SteelstyleCan be customized according to customer samples or drawingsOuter coatingGalvanized or customizedWidth(mm)Height(mm)Length(mm)Thickness(mm)Weight(kg)packing752530000.350.3920pcs/bundle0.400.4820pcs/bundle0.450.5520pcs/bundle0.500.6120pcs/bundle300.400.5620pcs/bundle0.450.6420pcs/bundle0.500.7220pcs/bundle0.600.8620pcs/bundle400.400.6312pcs/bundle0.450.7212pcs/bundle0.500.8012pcs/bundle0.600.9612pcs/bundle504030000.502.3020pcs/bundle0.600.8520pcs/bundle1003530000.500.898pcs/bundle0.601.068pcs/bundle0.801.458p...
Stud and track for ceiling and drywall profile galvanized light steel keel
product name | Stud and track for ceiling and drywall profile galvanized light steel keel |
texture | Galvanized Steel |
style | Can be customized according to customer samples or drawings |
Outer coating | Galvanized or customized |
Width(mm) | Height(mm) | Length(mm) | Thickness(mm) | Weight(kg) | packing |
75 |
25 |
3000 | 0.35 | 0.39 | 20pcs/bundle |
0.40 | 0.48 | 20pcs/bundle | |||
0.45 | 0.55 | 20pcs/bundle | |||
0.50 | 0.61 | 20pcs/bundle | |||
30 | 0.40 | 0.56 | 20pcs/bundle | ||
0.45 | 0.64 | 20pcs/bundle | |||
0.50 | 0.72 | 20pcs/bundle | |||
0.60 | 0.86 | 20pcs/bundle | |||
40 | 0.40 | 0.63 | 12pcs/bundle | ||
0.45 | 0.72 | 12pcs/bundle | |||
0.50 | 0.80 | 12pcs/bundle | |||
0.60 | 0.96 | 12pcs/bundle | |||
50 |
40 |
3000 | 0.50 | 2.30 | 20pcs/bundle |
0.60 | 0.85 | 20pcs/bundle | |||
100 |
35 |
3000 | 0.50 | 0.89 | 8pcs/bundle |
0.60 | 1.06 | 8pcs/bundle | |||
0.80 | 1.45 | 8pcs/bundle | |||
1.00 | 1.84 | 6pcs/bundle |

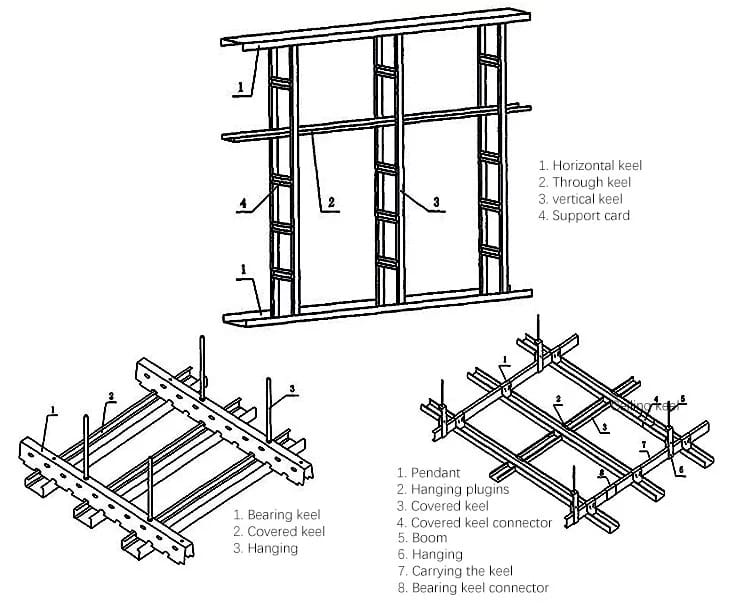

Schematic

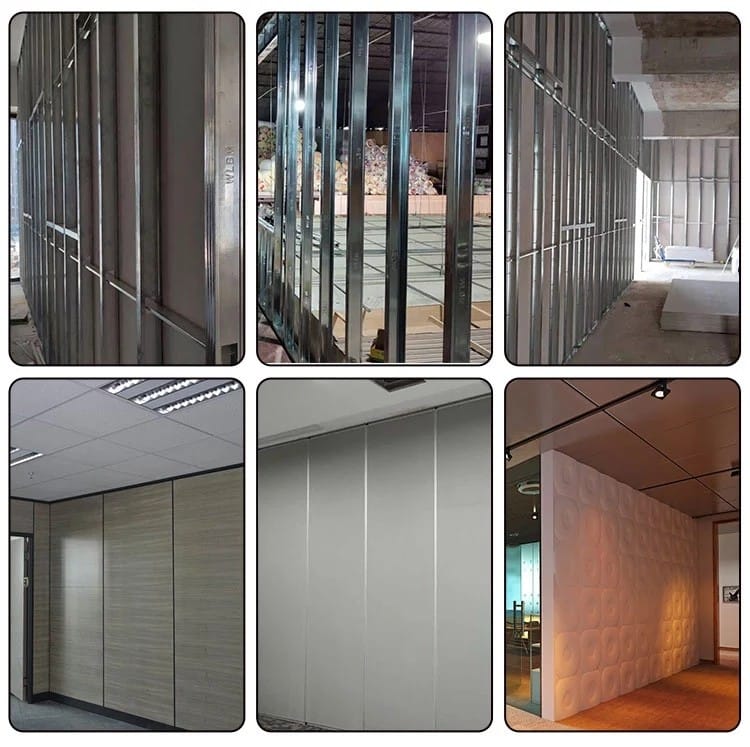

Application
Advangtage
1. Quality:
All materials we use are in the first category, our C-channel/support channel/single-support is of high quality, and the equipment and technology are very advanced. From production to packaging, we pay great attention to every detail of quality.
2. Competitive prices:
We have purchased materials for our professional subsidiary plants to apply for production, so our costs are lower and the prices are more competitive than those of other factories.
3. Purchase convenience:

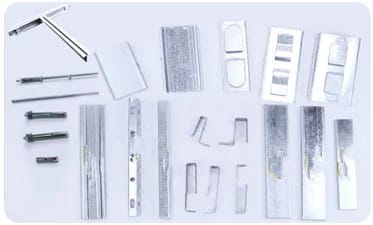

Customers can find all relevant accessories here and get all the items they need in less time. For example, fixed screw coupling, compression connector, support clip, hetero-diameter tube sleeve, etc.
