Hydraulic Slitting Line ensures rapid strip separation and precise cutting for superior results.
As a professional slitting line manufacturer, we deliver tailored, high-performance coil processing solutions. Our Model 3.5×1600 hydraulic slitting line is purpose-built for cold-rolled steel (CRS) ...
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content
As a professional slitting line manufacturer, we deliver tailored, high-performance coil processing solutions. Our Model 3.5×1600 hydraulic slitting line is purpose-built for cold-rolled steel (CRS) and galvanized steel (GI), combining precision engineering, automated workflow, and reliable performance to meet the demands of automotive, appliance, and metal fabrication industries.

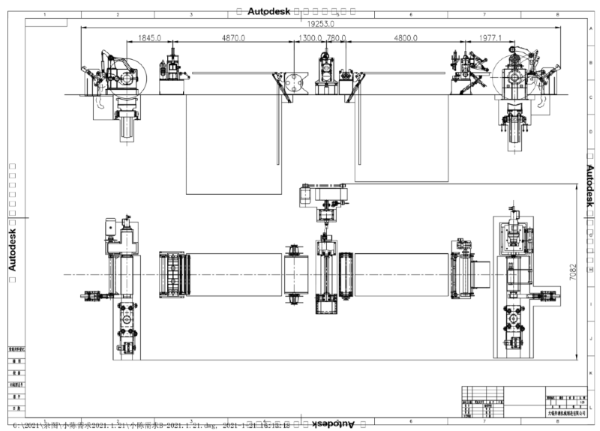

1.Overflow
From right to left are: Entry coil car→Decoiler →Press and pinch device→Hydraulic cutter→ Looper 1→Side guide device→ Slitter→Scrap winder→Looper 2→Tension stand →Recoielr→Exit coil car
2.Advantages
Ultra-Precision Slitting: With H13K blades and 40Cr knife pivot, achieving width tolerance ≤±0.05mm for burr-free, flat strips.
High Efficiency:0‒60m/min line speed, ~40T daily output (8 hours), cutting production time drastically.
Low Labor Cost:Only 1 mechanical engineer + 2 workers needed for full operation.
Customizable & Durable:Adaptable specs, compact 23m×8m footprint, and heavy-duty construction for long service life.
Full Support:End-to-end service from design, installation, training to after-sales maintenance.

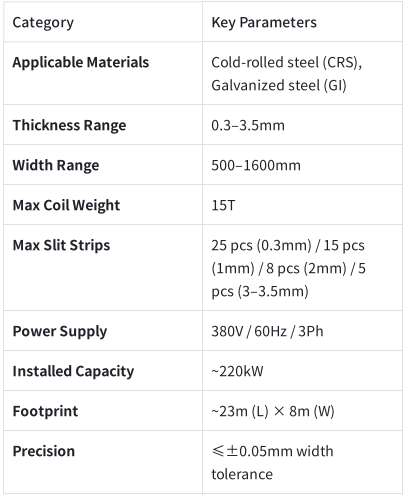

3.Technical Specifications

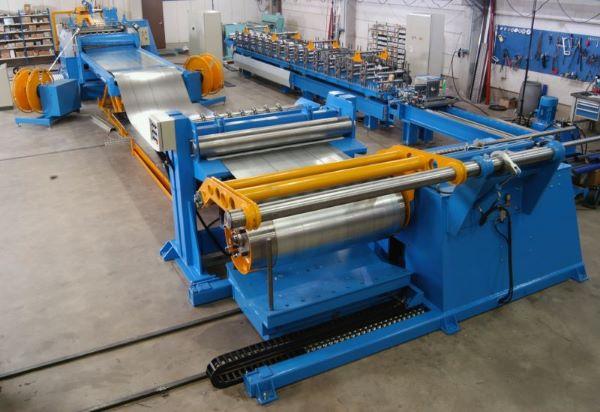

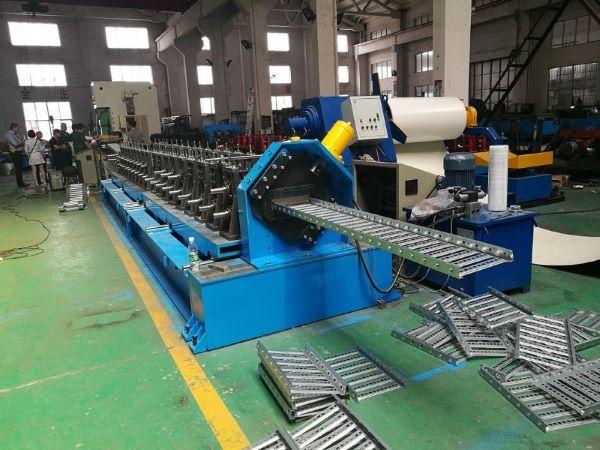

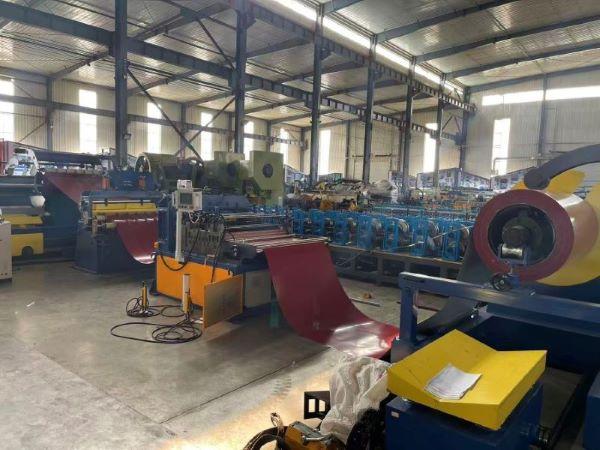

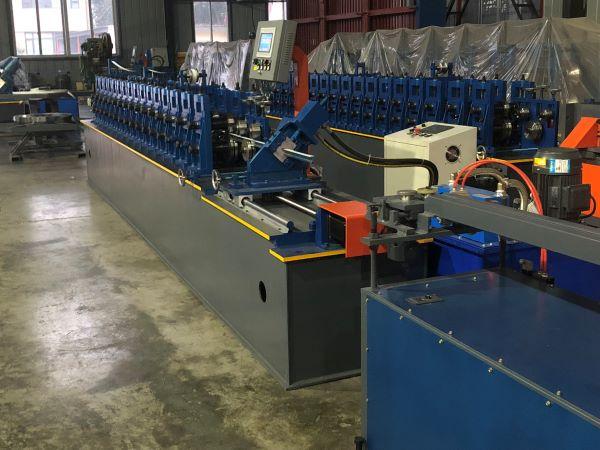

4.Past Achievements Presentation
5.Inquiry & Customization
This 3.5×1600 slitting line is our proven standard model, and we also offer fully customized solutions for different material grades, thicknesses, widths, and production capacities.
Ready to upgrade your coil processing line?
Share your material specs, production volume, and workshop layout with us today. Our engineering team will provide a tailored quotation and solution proposal within 2 working days.
