High Speed Metal Roof Machine Uses Welded H Beam Frame and Supports Multiple Voltages and Languages
This machine combines a rigid welded frame with flexible power and language options for international use. It runs stable at high speeds and adapts to your local electrical standards without extra equipment.
Contact: Elliot liu
Email: [email protected]
WhatsApp: 008615127728988
Detailed Content
Have you ever felt this way: the machine starts to shake as soon as you run it a little faster, the panels come out with the wrong dimensions, and you have to stop the line to readjust everything.
Every minute of downtime costs you time and customer trust, and that's the last thing anyone wants to deal with. Thehigh speed metal roof machineaddresses these problems through targeted engineering choices. Let me walk you through its structural rigidity and international compatibility features.
Thehigh speed metal roof machinedelivers stable operation at high speeds. It also works with different power standards in various countries without extra transformers or modifications.
Frame Rigidity

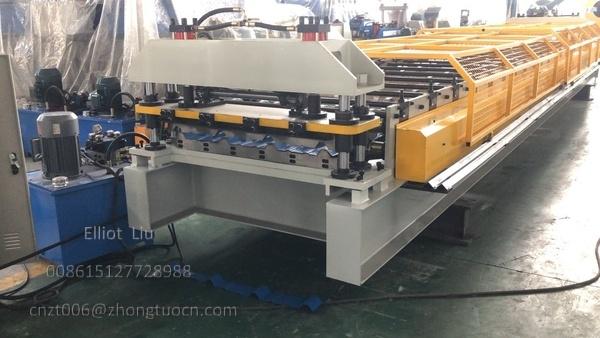

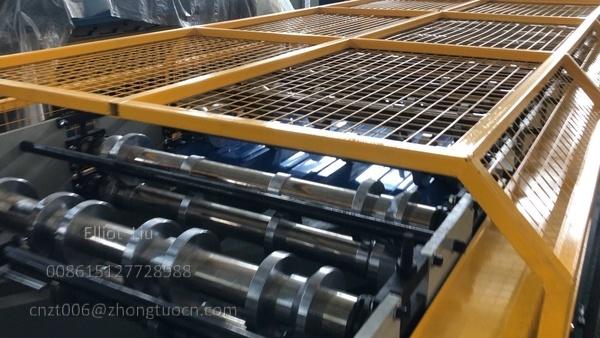

A machine's stability starts with a solid frame. Thehigh speed metal roof machineuses high tensile strength H beam steel welded into a single structure, not bolted pieces. A welded frame provides much better rigidity than assembled frames and prevents vibration and deformation during high speed operation.
The main forming section weighs 6.5 tons and measures about 11.5 meters long. That weight keeps the machine steady at top speeds of 20 meters per minute. A rigid frame also means the rollers stay in position as material passes through. The roller stations do not shift from frame flexing, so the panel width stays consistent throughout production. You won't need to constantly readjust roller spacing or worry about panels coming out uneven.
Drive System

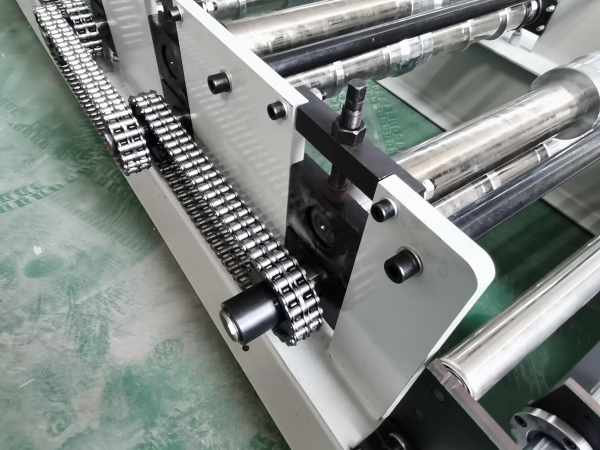

Have you ever had chains loosen up in less than six months, forcing you to stop and retighten them all the time? Thehigh speed metal roof machineuses a double chain drive. Two chains split the load, so each chain carries only half the stress.
The drive motor supplies plenty of power, and the double chains deliver smooth, steady force through the entire forming process. Chain wear happens much more slowly with this setup. The replacement interval is more than double that of a single chain system. You won't have to worry about chain slippage affecting product accuracy at high speeds, and you won't need to stop production frequently for chain maintenance.
Technical Specifications
Now that we have covered frame rigidity and the drive system, let's look at the main specifications of thehigh speed metal roof machine.
| Parameter | Value |
|---|---|
| Material Thickness | 0.16 – 0.55 mm |
| Raw Material Width | 1000 mm |
| Effective Width | 812 mm |
| Working Speed | 0 – 20 m/min |
| Processable Materials | GI, PPGI, PPGL |
| Main Forming Unit Length | Approx. 11500 mm |
| Main Forming Unit Weight | 6.5 tons |
| Roller Material | 45# Steel + Hard Chrome Plating |
| Number of Rollers | 20 Stations |
| Shaft Material | 45# Steel, Quench Treated |
| Shaft Diameter | φ80 mm |
| Drive Mode | Double Chain |
| Machine Frame | H Beam Steel Welded |
| Cutting Tolerance | ±1.0 mm per 3 meters |
| Standard Voltage | 380V 50Hz 3 Phase (customizable) |
| Operating Languages | Chinese, English, Spanish (other languages available on request) |
| Decoiler Capacity | 5 tons |
| Decoiler Inner Diameter | 450 – 610 mm |
| Standard Receiving Table Length | 3 meters per set, 2 sets |
| Optional Automatic Stacker Length | 6 meters |
| Optional Automatic Stacker Max Stack Height | 300 mm |
Voltage Compatibility
No one wants to receive a machine only to discover the voltage doesn't match and they need to buy an expensive transformer. Thehigh speed metal roof machinecomes standard with 380V 50Hz 3 phase power, which works for most industrial areas in Asia and Europe.
If your country uses different power standards, we can configure the machine before shipping. Custom voltage options include 220V, 415V, and 440V, and we can also adjust the frequency to 60Hz. Just tell us your local voltage and frequency when you place the order. The machine runs as soon as you plug it in, with no need for additional transformers or frequency converters.
Operating Language
What if your workers cannot read the English interface? Thehigh speed metal roof machineincludes Chinese, English, and Spanish as standard language options on the touchscreen. Local workers can switch to their familiar language with one tap.
If you need another language, the system can be customized to your requirements. The touchscreen uses icon based design with straightforward logic. Workers only need to set the length and quantity, and the machine handles the rest automatically.
Applications

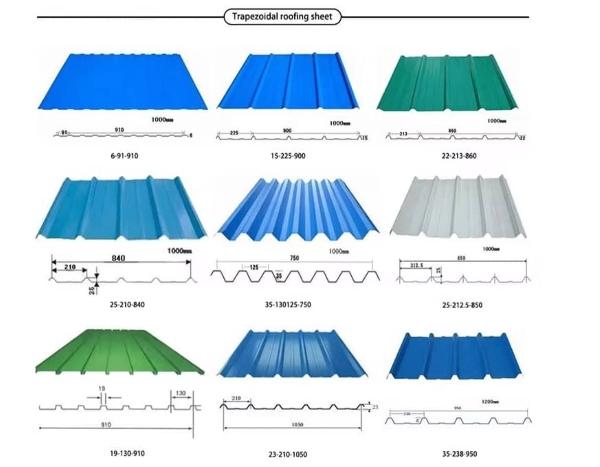

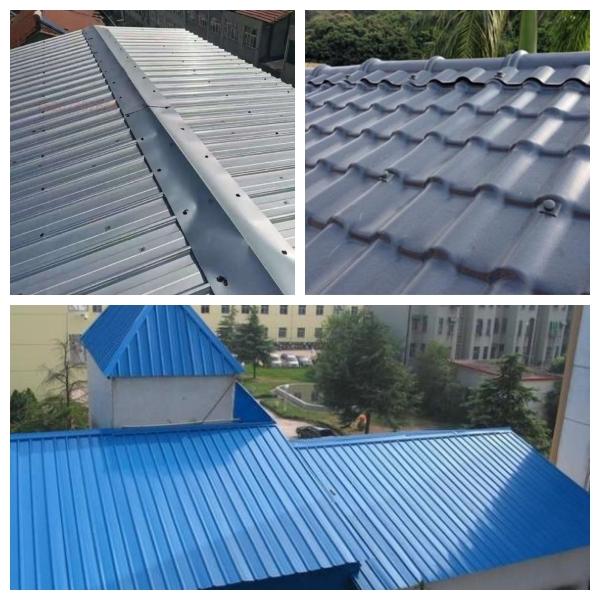

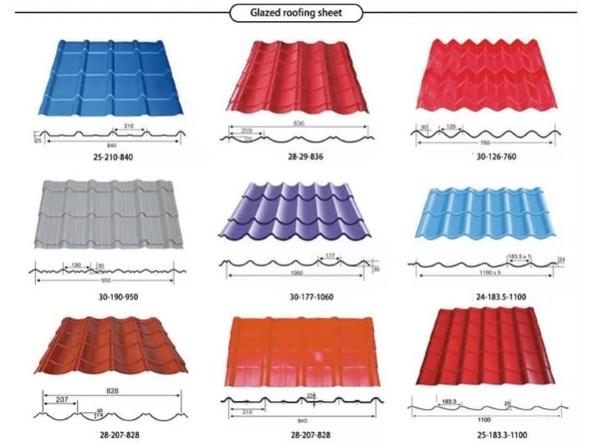

Thehigh speed metal roof machineproduces panels used across many building sectors:
- Industrial plants and warehouses: large span roofing and wall cladding
- Residential housing and agricultural greenhouses: sloped roof covering and simple structure roofing
- Large public buildings and sports arenas: standing seam roof systems
- Commercial building facades: exterior wall panels
Whether you are in the United States, Europe, Southeast Asia, or the Middle East, thehigh speed metal roof machineadapts to your local power standards and language needs. If you have specific voltage requirements or want more technical information, reach out to us anytime. We are happy to offer recommendations based on your actual production conditions.
