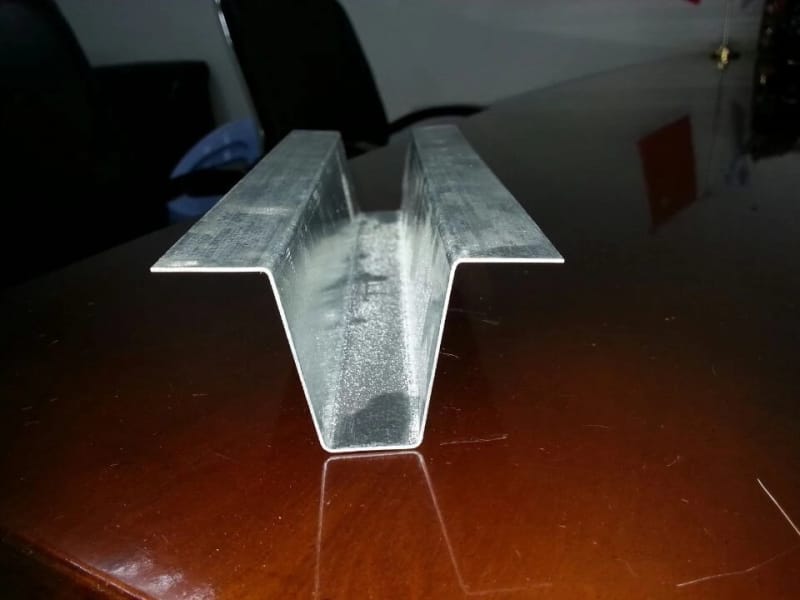

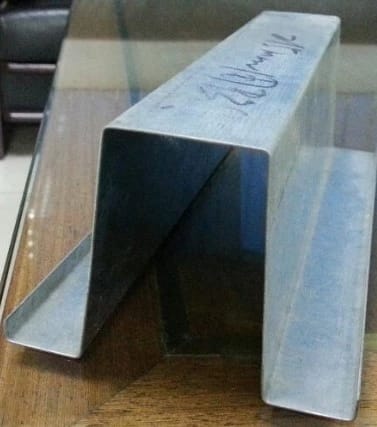

Hot sales Australia steel roof batten hat channel
1) Material: galvanized steel with zinc coating or Aluminized
DX51D/Q195/Q235/G250/G400/G550
2) thickness: 0.3~2.0mm
3) Application: ceiling or roof system
4) Advantage: rust-proof, fire-proof, easy to install
Suitable for all size of the hotel, airport, office buildings, shopping malls and other public, home decoration places.

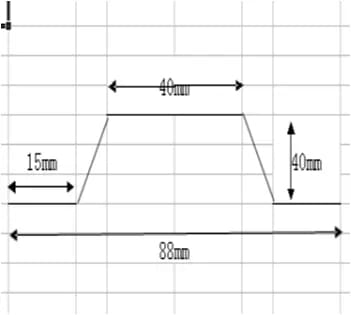

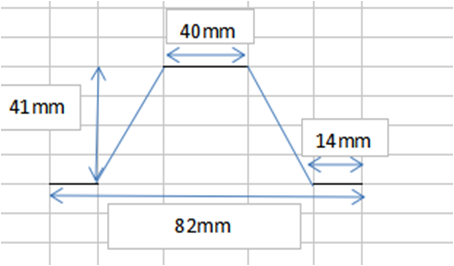

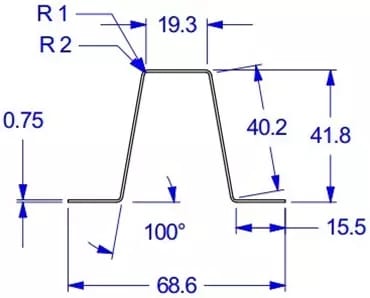

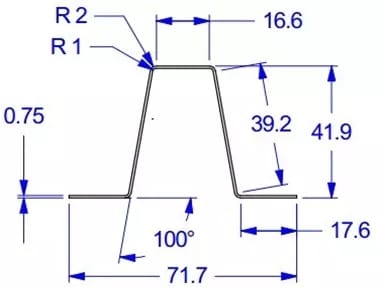

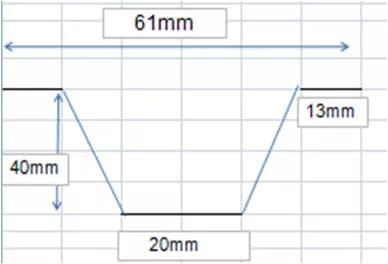

Specification
Not vertical one & with return | |||
A1 (mm) | A2 (mm) | B (mm) | C (mm) |
35/36 | 67/68 | 22 | 10/12 |
48/50 | 80 | 22 | 10/12 |
35~80 | 21~23 | 10~12 | |
Not vertical one & without return | |||
A1 (mm) | A2 (mm) | B (mm) | C (mm) |
20~100 | 41 | 10~25 | |
Vertical one | |||
A1 | A2 | B | C |
50 | 90 | 15 | 20 |
50 | 90 | 25 | 20 |
50 | 90 | 35 | 20 |
Application

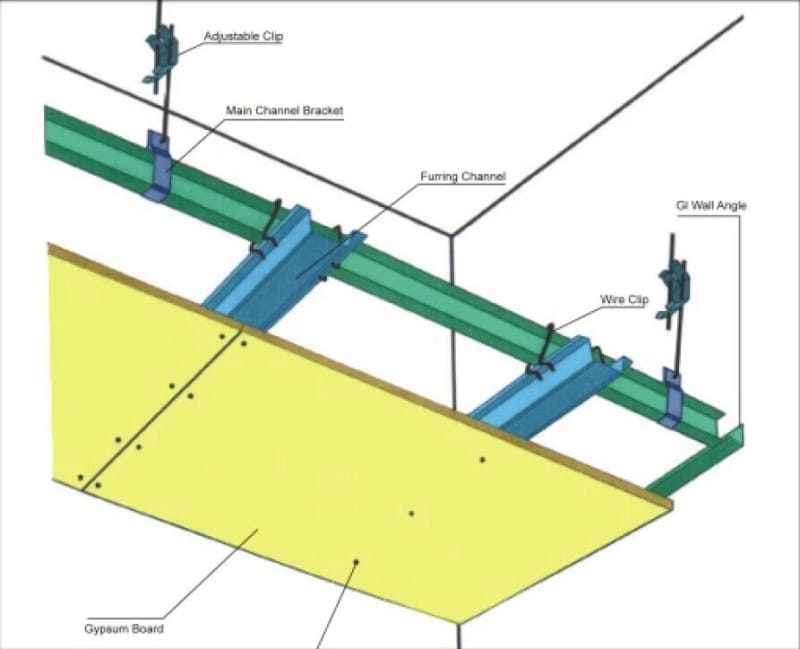

Ceiling system

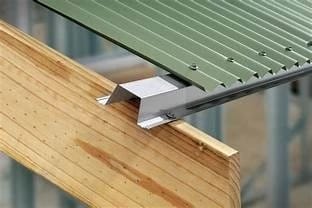

roof system

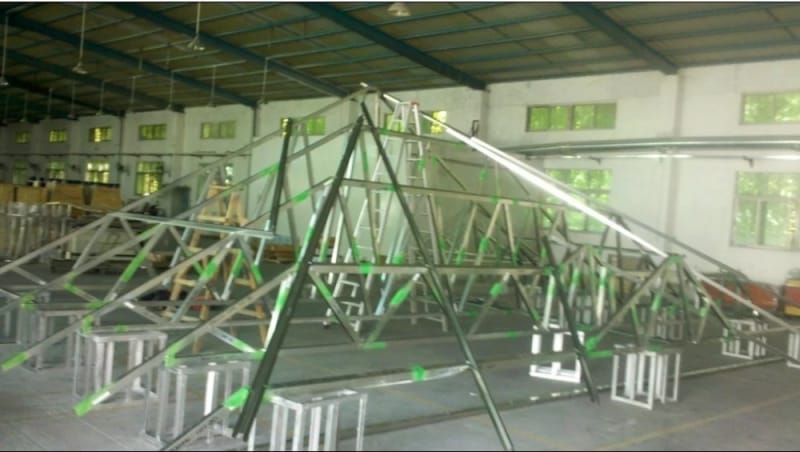

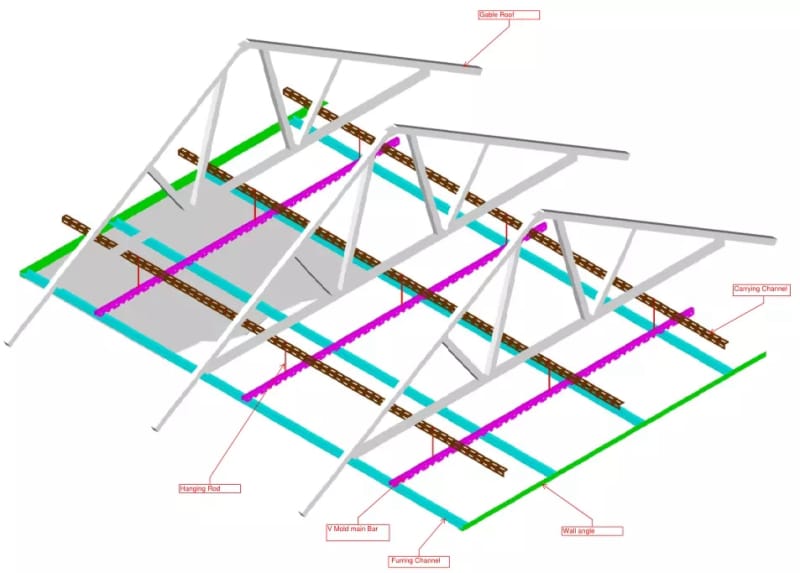

our roof truss
Actual finish photo of our roof truss
